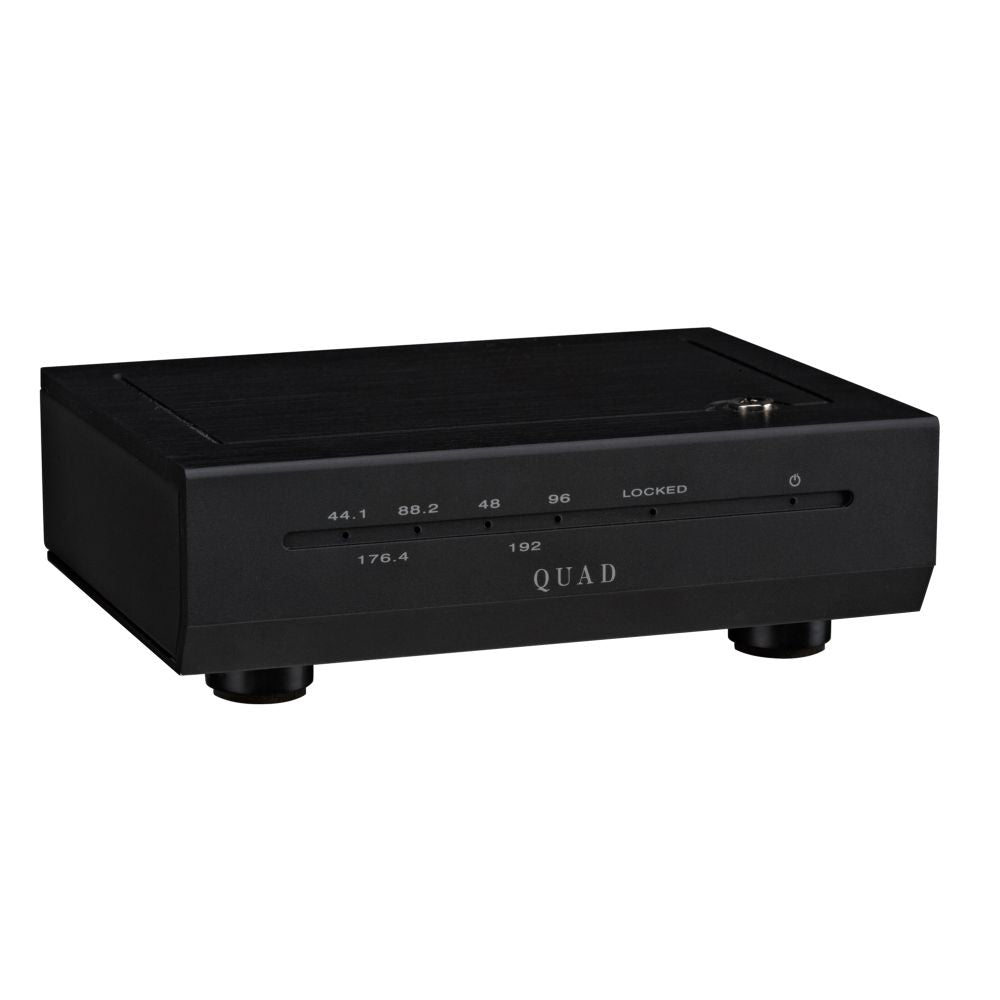

Quad LINK D1 24/192 DAC (Black)

$439.99 $879.99

With the increased popularity of computers as source, this Quad Link D-1 USB DAC allows consumers to enjoy listening to digital music sources from a computer (Windows or Mac) via USB connection.

This product is USB 1.1 and 2.0 compliant. No custom USB drivers or software programs are required. This device supports sampling frequencies ranging from 32kHz to 192kHz and incorporates a high quality digital-to-analogue converter (DAC). It can also serve as an USB interface simply to convert the data of music files from your computer to SPDIF signal for use with outboard DACs.

This DAC has a very small footprint ideal for situations where space might be an issue.

prefer the in-store experience?

Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

Quad LINK D1 24/192 DAC (Black)

Technical specifications

  • DAC Crystal CS4398
  • Sampling Frequency 44.1kHz – 192kHz
  • Maximum Sampling Frequency 192kHz

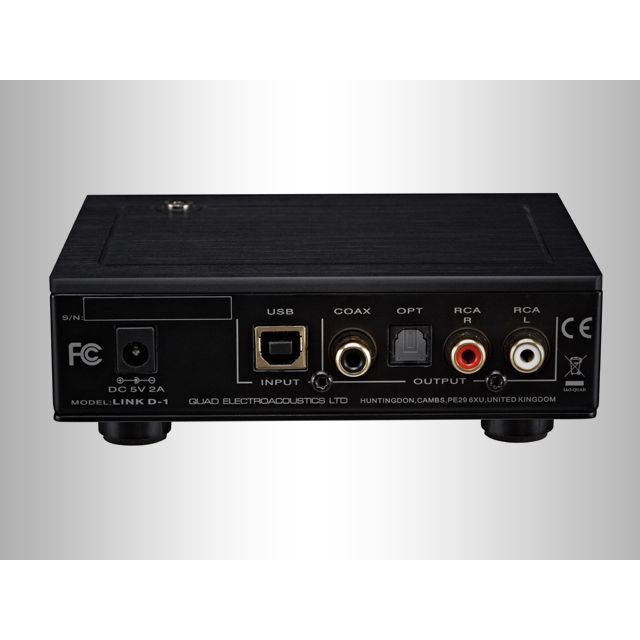

  • Digital input 1 x USB (asynchronous mode)
  • Digital output 1 x coaxial, 1 x Toslink optical
  • Output voltage 4V (unbalanced)
  • Output impedance 100Ω (unbalanced)
  • Frequency response 20Hz – 20kHz (+/-0.2dB)
  • Dynamic range 110dB
  • Height 130mm
  • Width 108mm
  • Depth 42mm
  • Carton size 600 x 400 x 340mm
  • Net weight 0.7kg
  • Gross weight 1.39kg
