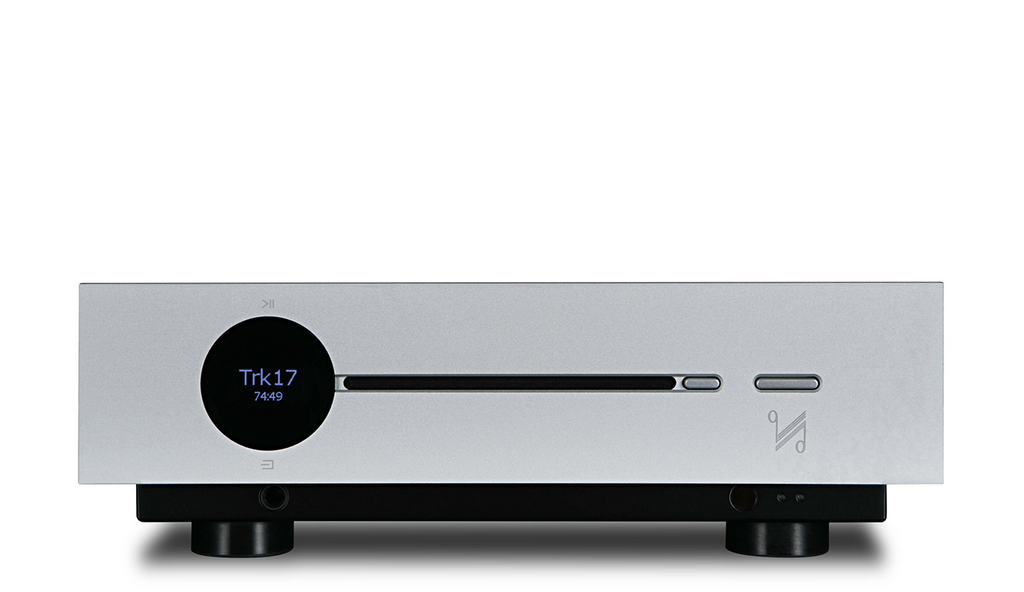

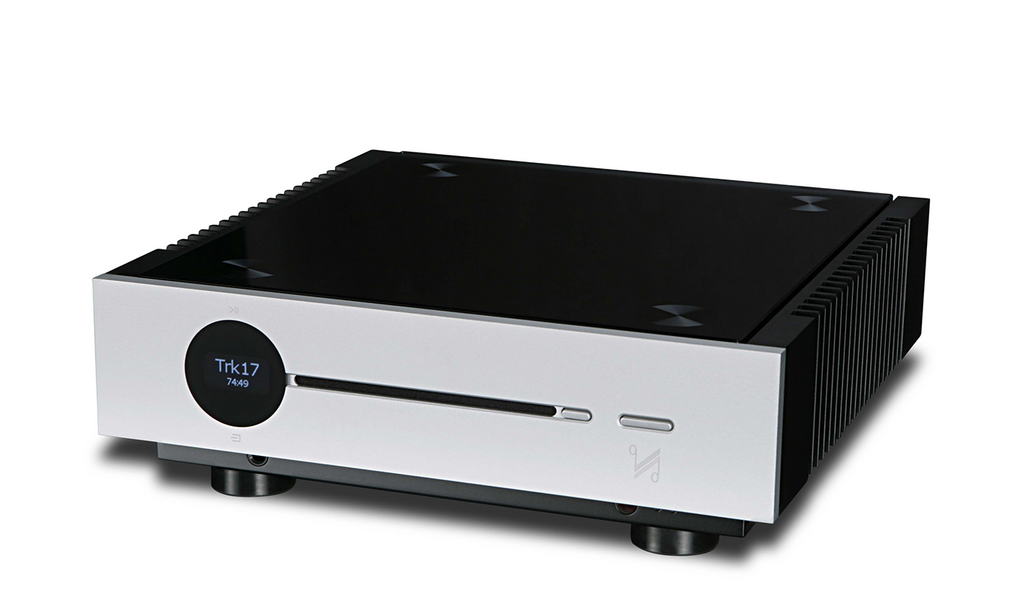

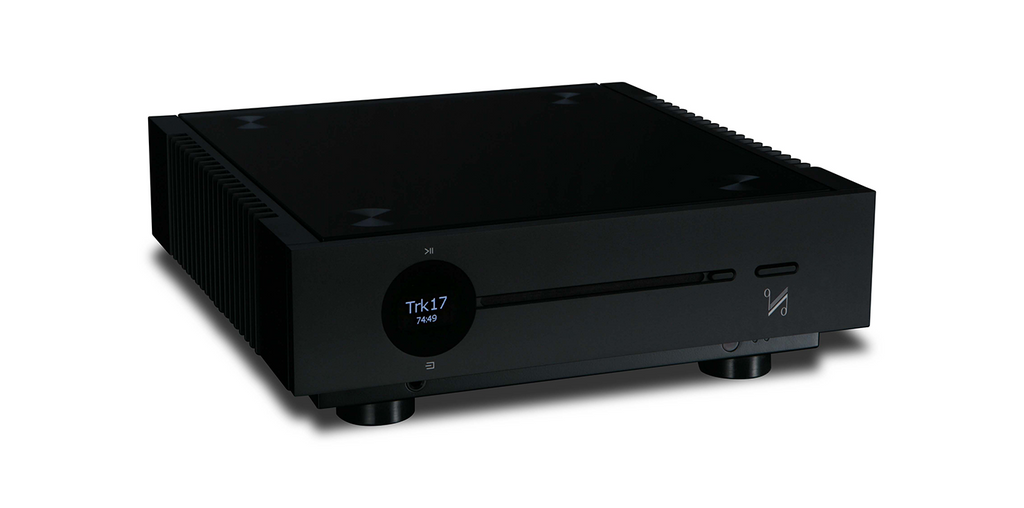

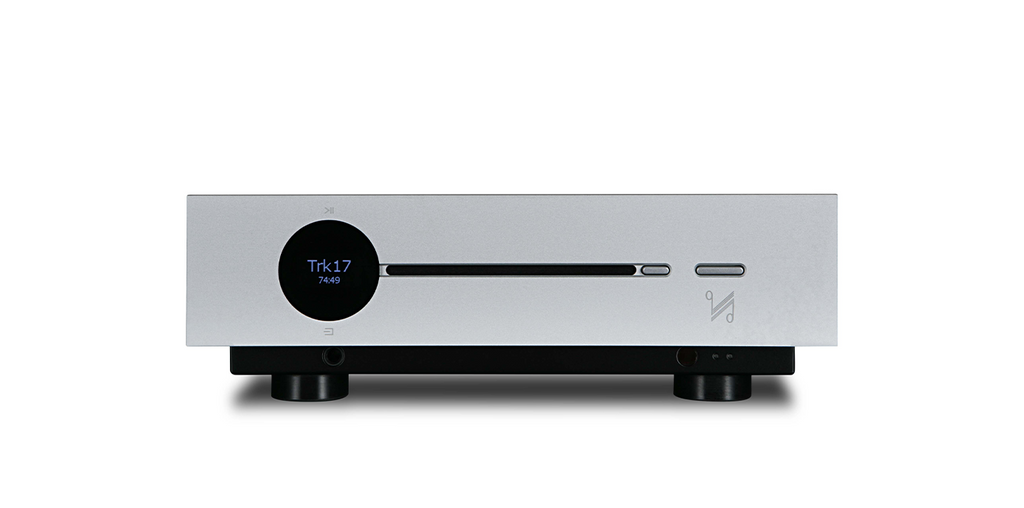

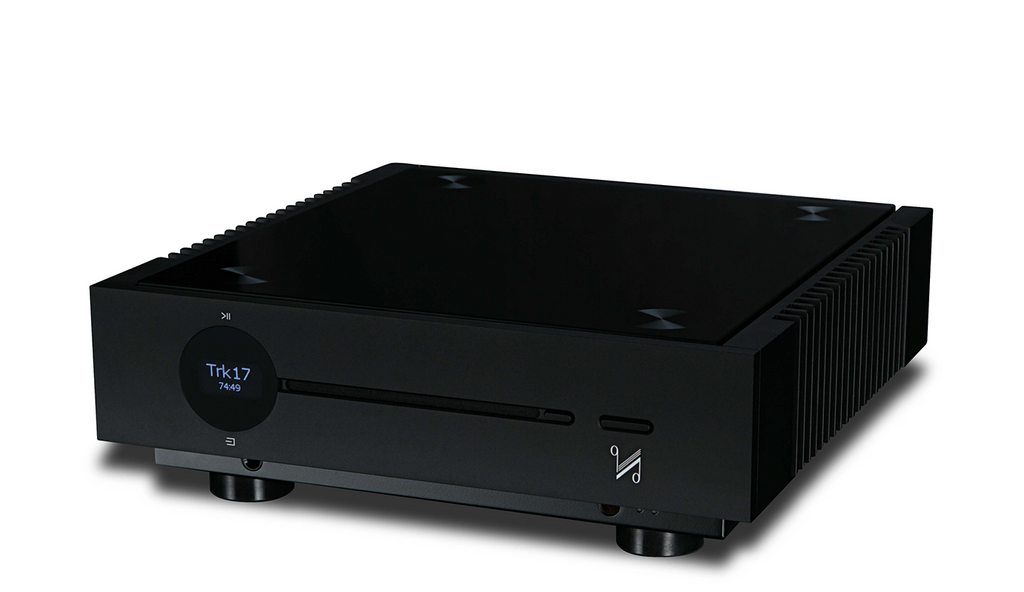

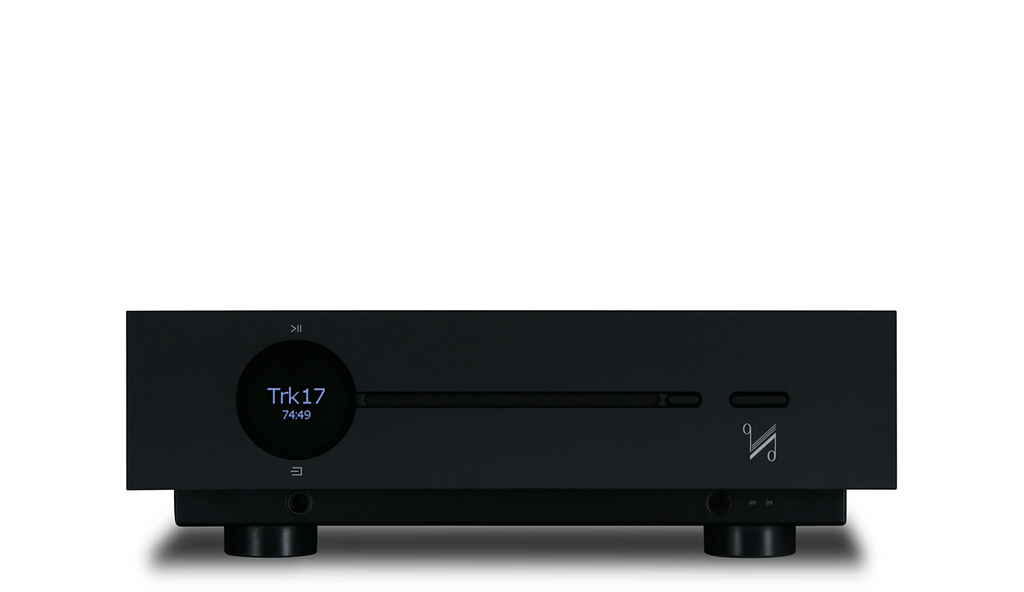

Quad Artera Play+
Technical specifications
| General Description | CD Player & DAC |
| D/A Converter | ESS ES9018 32bit DAC |
| Output Level (1kHz) | 0 - 2.5 Vrms (PRE Outputs) |
| 0 - 5 Vrms (Balanced Outputs) | |
| L/R Channel Difference | ±0.02dB (1kHz) |
| Frequency Response | -0.2dB (20Hz-20kHz, 1kHz) |
| Total Harmonic Distortion | <0.001% (20Hz-20kHz) |
| Linearity | ±0.01dB (20Hz-20kHz) |
| Signal to Noise Ratio (S/N) | >110dB (1kHz) |
| >118dB (Weighted, 1kHz) | |
| Channel Separation | >100dB (1kHz) |

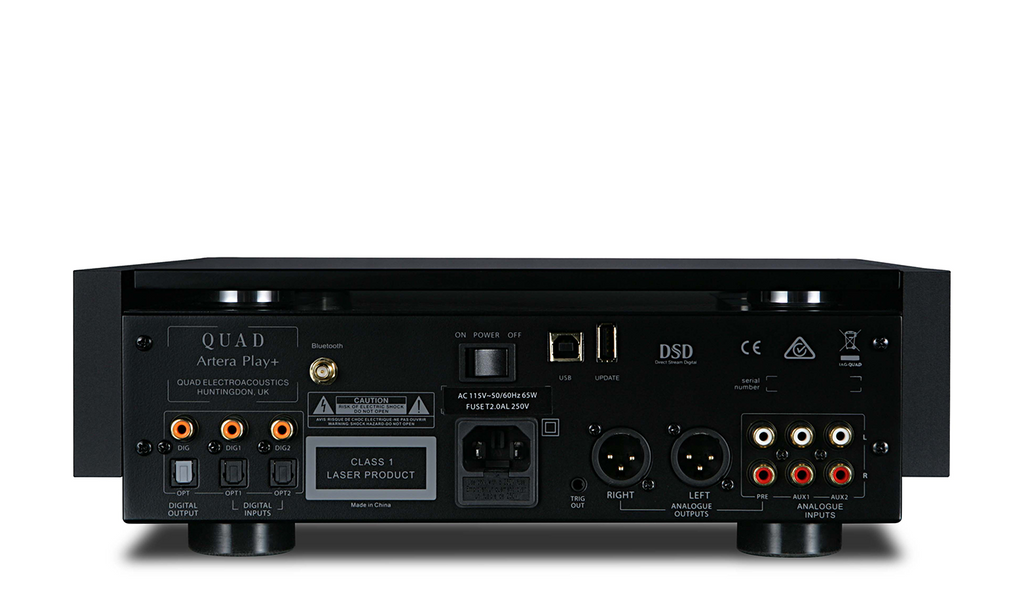

| USB Input | 1 _ USB (Support HID) |
| USB Input Sampling Rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 384kHz |
| USB DSD | DSD64, DSD128, DSD256 |
| Digital Audio Inputs | 2 _ Optical TOSlink |
| 2 _ RCA (DIG1, DIG2) | |
| Digital Audio Outputs | 1 _ Optical TOSlink |
| 1 _RCA (DIG) | |
| Digital Inputs & outputs Sampling Rates | 44.1 - 192kHz |
| Analogue Inputs | 2 _ RCA(AUX1, AUX2) |
| Analogue Outputs | 2 x XLR, RCA (PRE) |
| Dimension (W x D x H) | 320 x 320 x 105mm |
| Weight | 8.5 kg |
