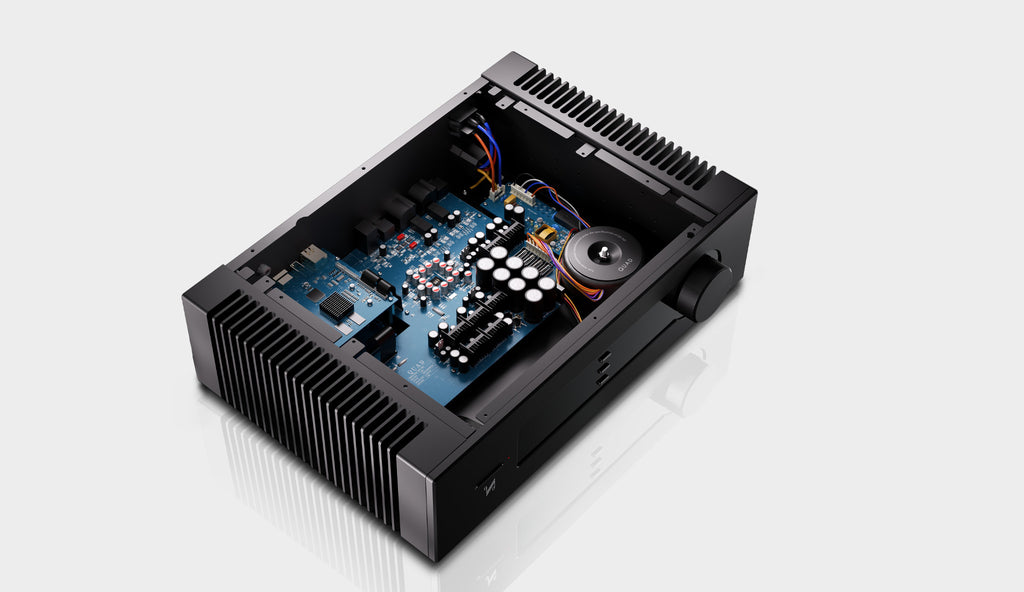

ENGINEERED FOR INTEGRITY
prefer the in-store experience?
Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

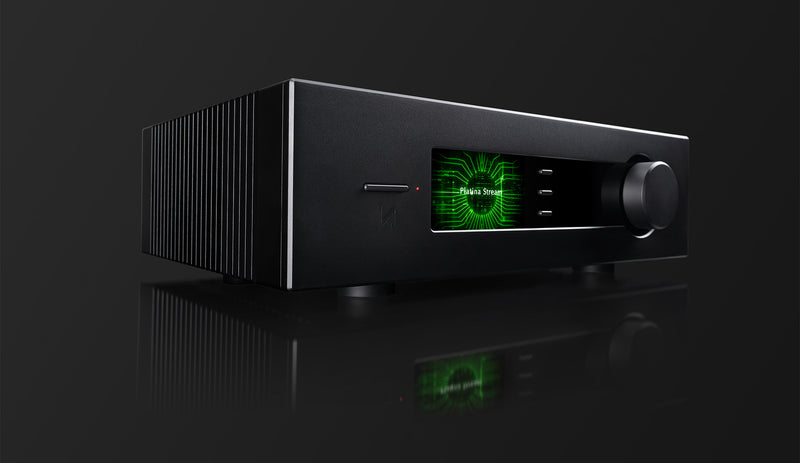

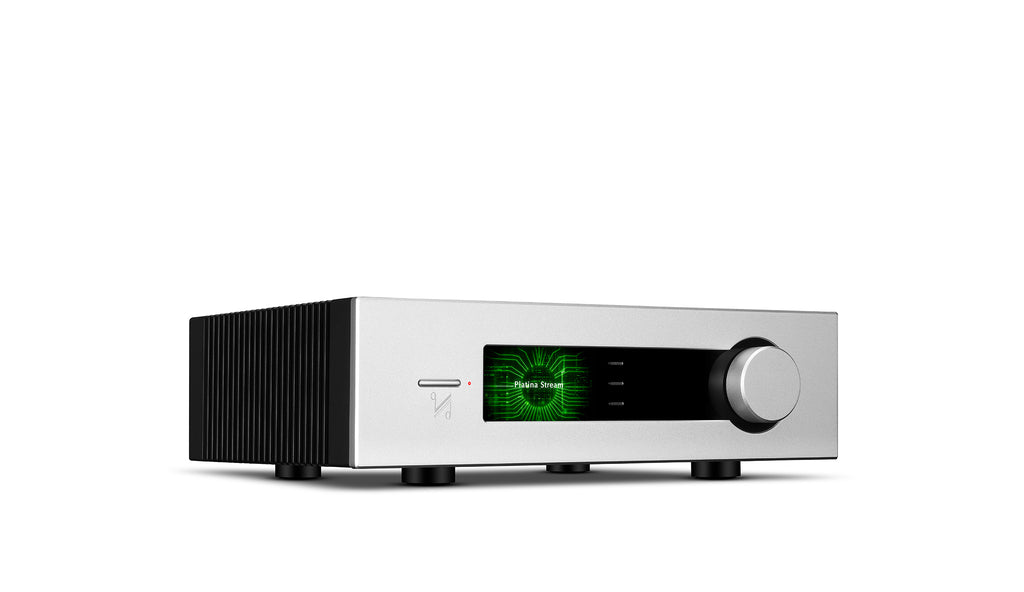

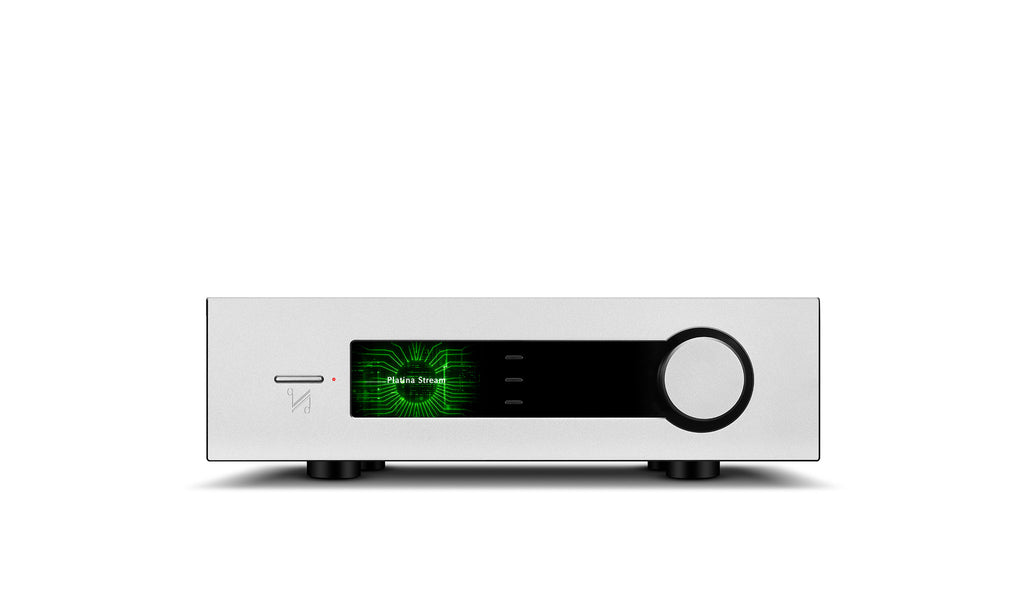

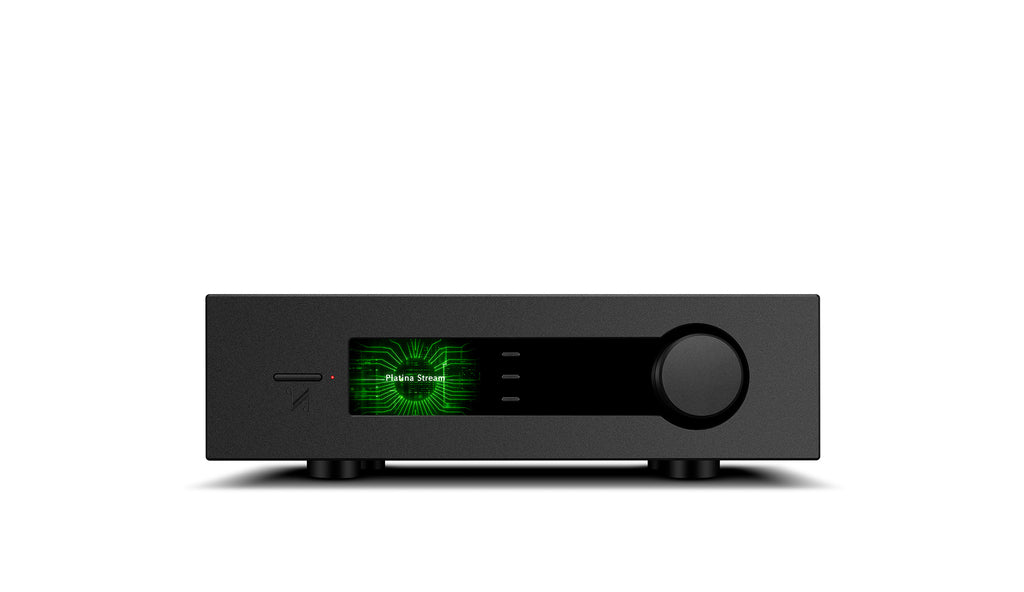

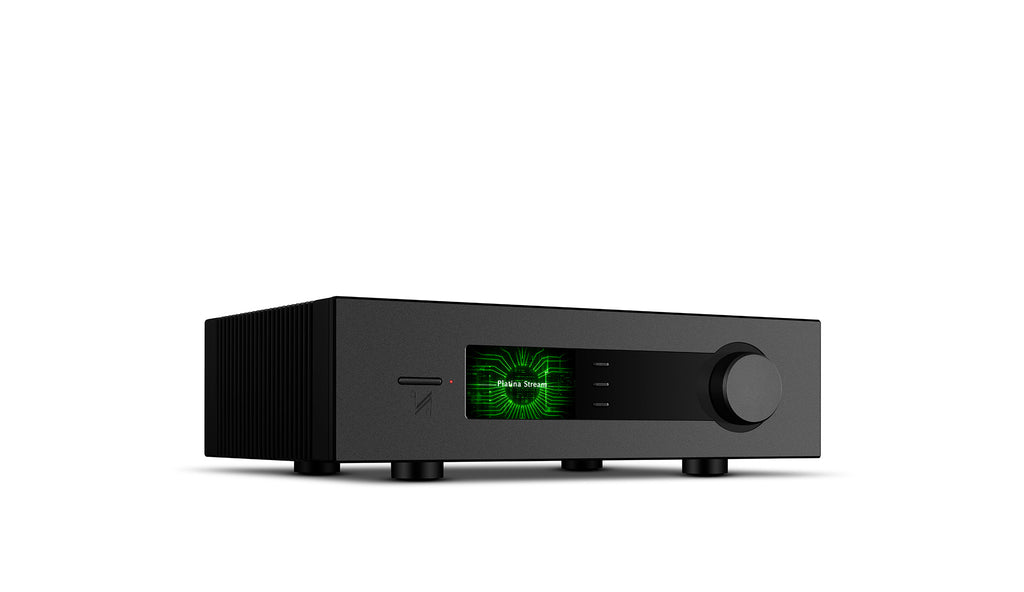

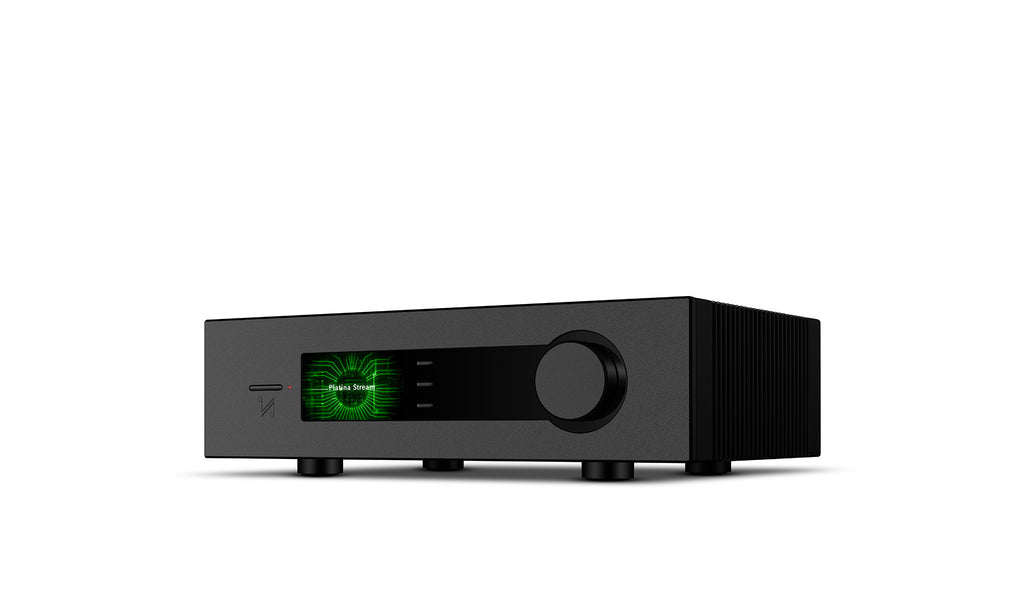

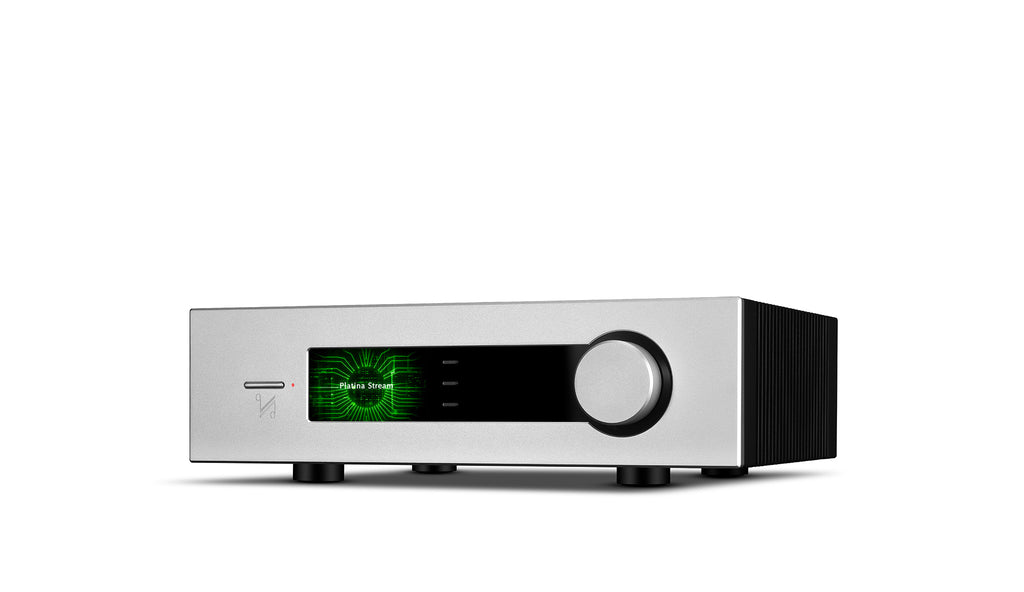

Platina Stream Network Player
Technical specifications
| Design philosophy & Core Technology | Quad Arm Cortex-A53 multi-core processor, 1.8 GHz per core |
| LUMIN MUSIC streaming technology with dual-band Wi-Fi (2.4/5 GHz) & Gigabit Ethernet | |
| Native support for Spotify Connect, Tidal Connect, Qobuz Connect & TuneIn Radio | |
| Roon Ready | |
| UPnP music server support & USB HDD (FAT32 / exFAT / NTFS) | |
| Gapless Playback | |
| High-resolution album artwork display | |
| Digital Section | |
| Digital output intensity | 500 ± 50 mVpp |
| Output impedance | 75 Ω |
| Frequency response | -0.01 dB (20 Hz – 20 kHz, ref. 1 kHz) |
| Max. Sampling Frequency | 192 kHz / 24-bit |

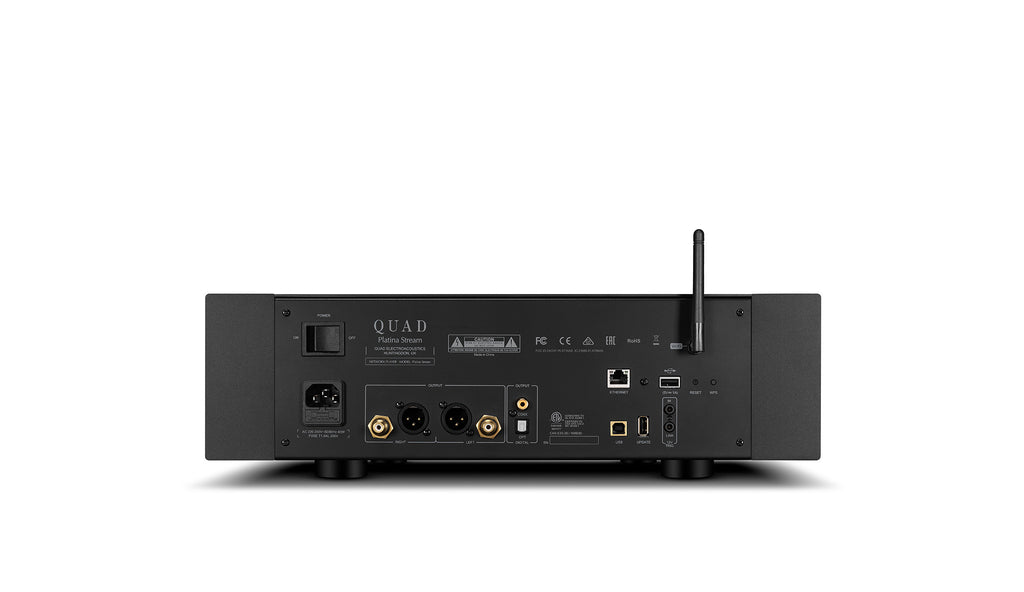

| Digital output | 1 x Coaxial, 1 x Optical |
| DAC | |
| Variable Output Voltage | 0 – 2.05 Vrms |
| DAC | ESS Sabre ES9038Pro 32-bit DAC |
| Frequency Response | ±0.5 dB (20 Hz – 20 kHz, ref. 1 kHz) |
| Total Harmonic Distortion | <0.001% (1 kHz @ 2.05 Vrms) |
| Max. Sampling Frequency | 768 kHz / 32-bit |
| Signal-to-Noise Ratio (A-weighted) | >116 dB (RCA), >120 dB (XLR) |
| Output Impedence | 120 Ω |
| General | |
| Standby Power Consumption | <0.5 W |
| Net weight | 6.2 kg |
| Dimensions ( H x W x D ) | 135 x 445 x 348 mm |
| Finish | Black / Silver |
| Included Accessories | Power Cord, Remote Control, User Manual |
