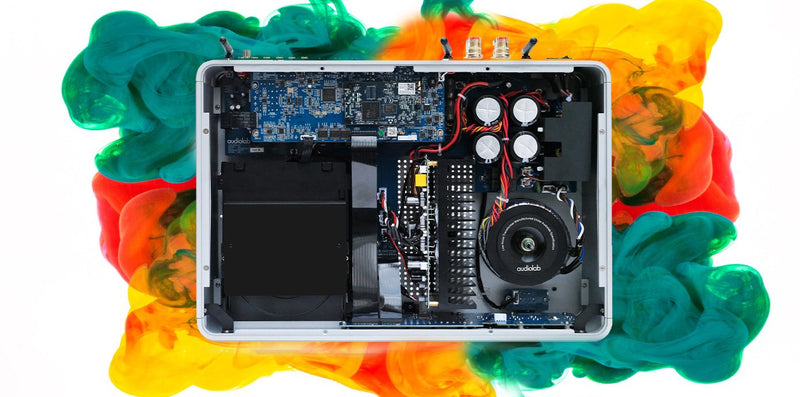

WELCOME TO A WORLD OF COLOUR
NO WIFI. NO WORRIES.
FOR EVERY OBSESSION
Prefer the In-Store Experience?
Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

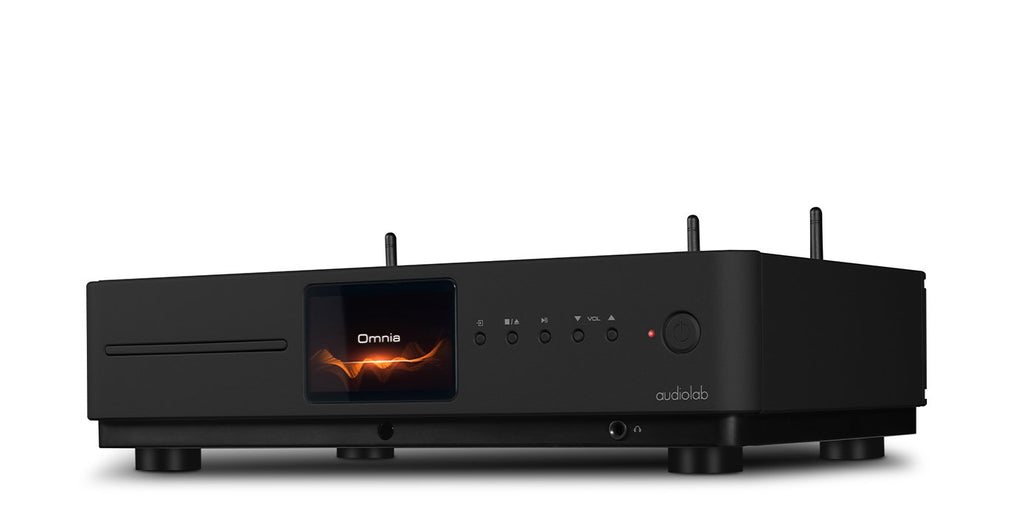

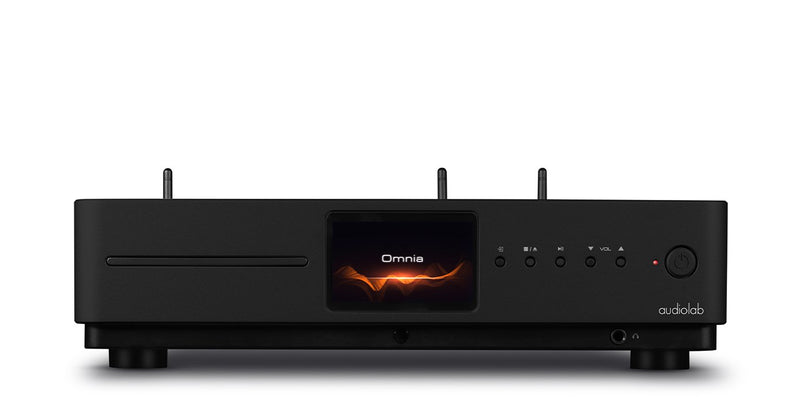

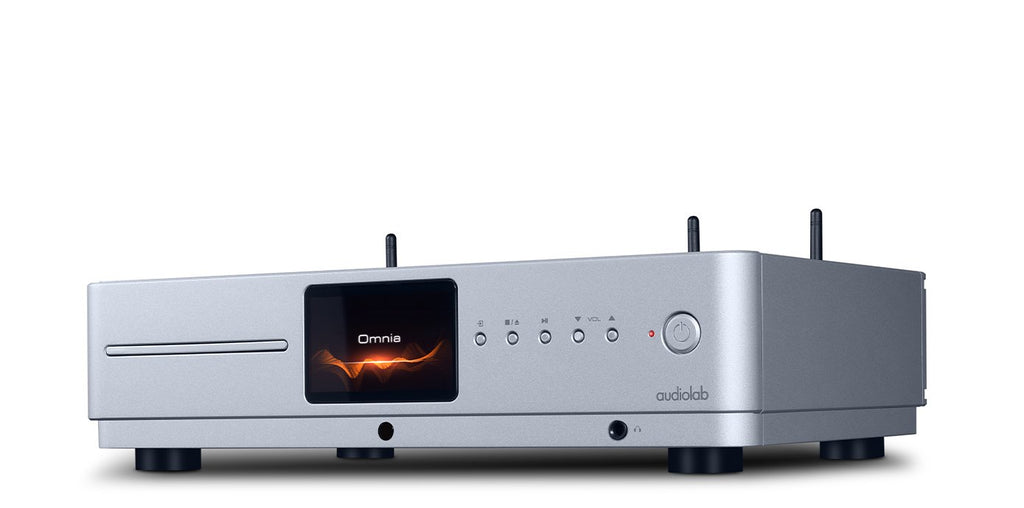

Omnia All-in-one Integrated Amplifier + CD Player
Technical Specifications
| General Description | Integrated Amplifier |
| Design Philosophy and Core Technology | 2x50W (8ohm) / 2x75W (4ohm) Class AB |
| ES9038Q2M 32-bit DAC | |

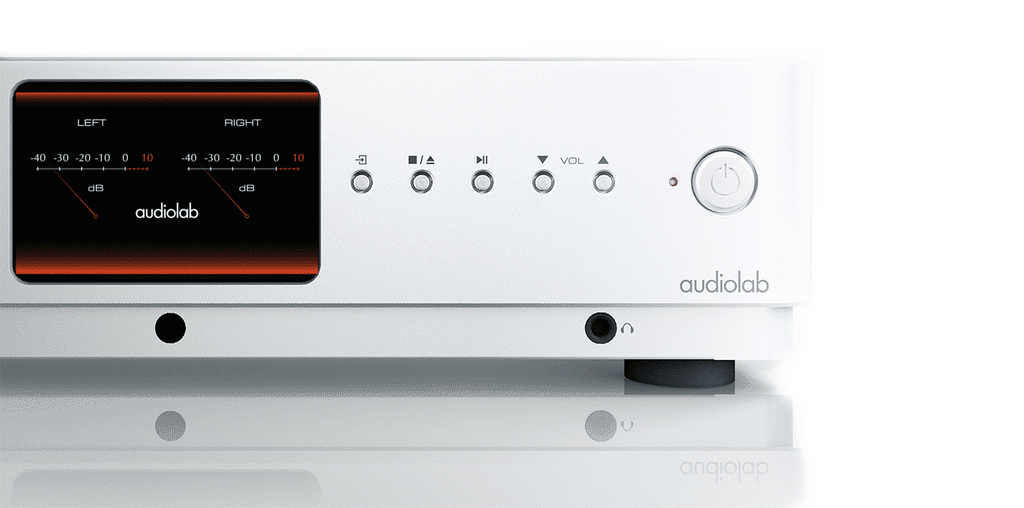

| 4.3" (800x480mm) large size full view IPS LCD | |
| Built in certified hardware MQA Full decoder (PC USB, Coax/Optical) | |

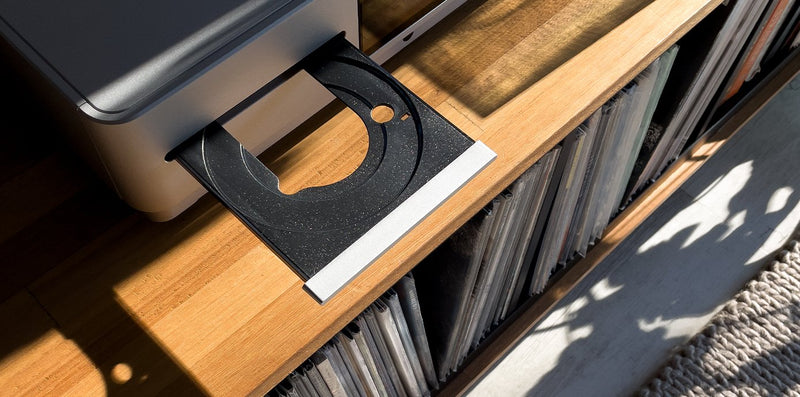

| CD playback compatible with CD, CD-R, CD-RW discs | |
| USB memory device support (MP3/WMA/AAC/WAV) | |
| DTS Play-Fi technology (IEEE 802.11 a/b/g/n/ac) | |
| Streaming service support includes Amazon Music, Spotify, TIDAL, Internet Radio, Deezer, iHeartRadio and more (dependant on geographic region) | |
| Multi-room / multi speaker group support | |

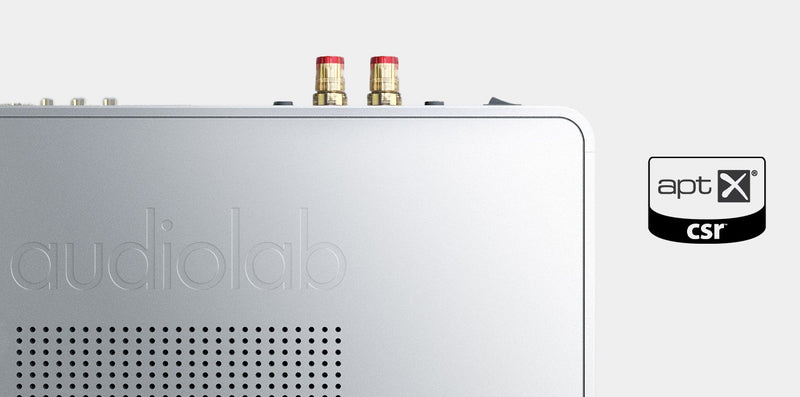

| Bluetooth 5.0 (aptX/aptX LL) streaming | |
| Low Noise Moving Magnet Phono stage | |
| Dedicated Current-Feedback Headphone AMP | |
| Integrated / PRE-POWER / PRE only Modes | |

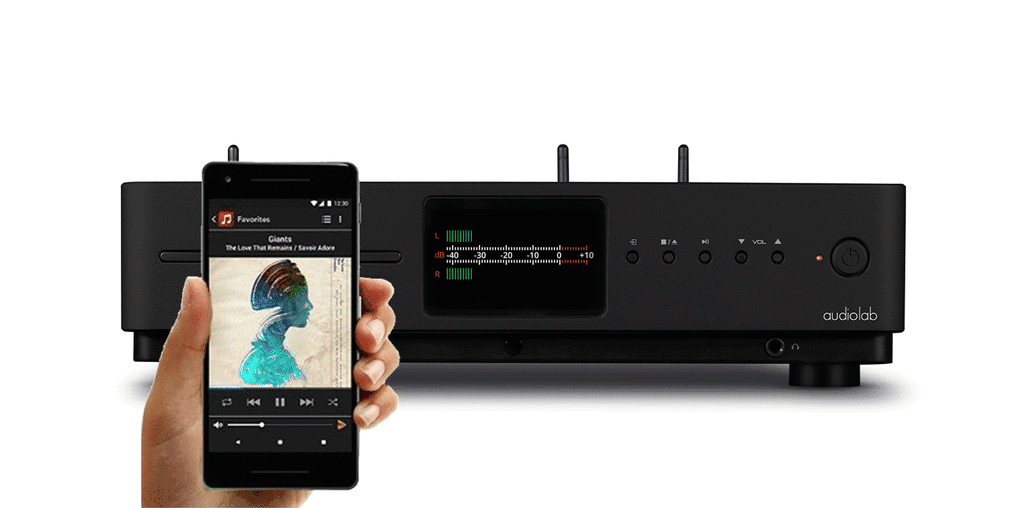

| Android / iOS / Kindle Fire / Windows PC Control Support | |
| USB firmware upgrade input | |

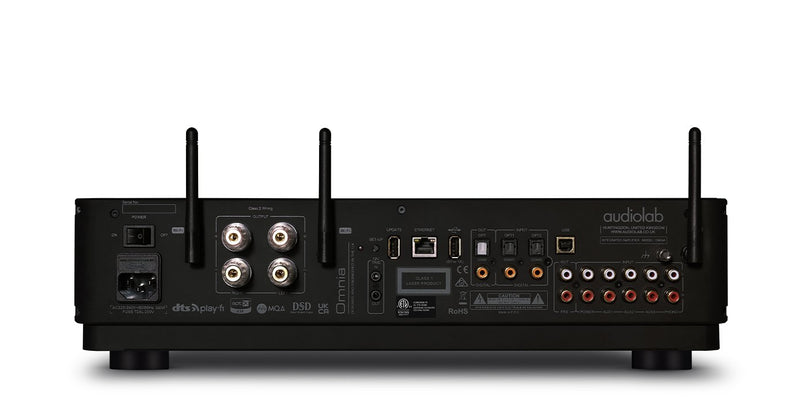

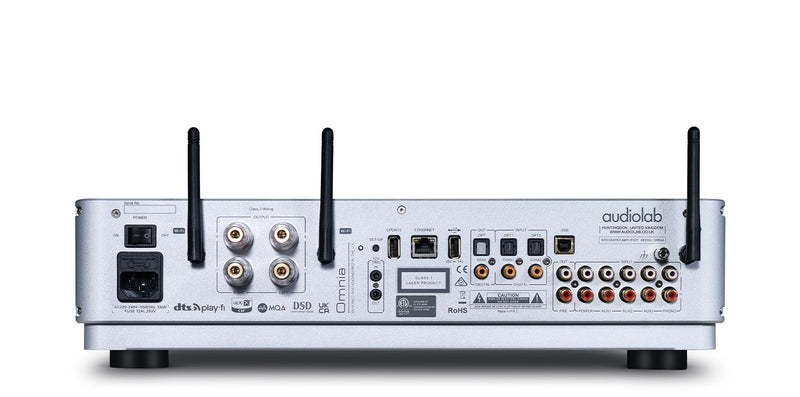

| Inputs | 3 x Analogue, 1 x Phono (MM) , 1 x Power Amplifier, 2 x SPDIF (Coax), |
| 2 x SPDIF (Optical), 1 x DTS Play-Fi Streaming, 1xPC USB(USB B), | |
| 1xUSB HDD(USB A), 1 x Bluetooth(aptX/aptX LL), 1 x 12V Trigger | |
| Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
| Sampling Frequency | Optical / Coaxial:44.1kHz ---192kHz |
| PC USB: 44.1kHz - 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 | |
| Preamplifier Section | |
| Gain | +8dB (Line) |
| +47dB (Phono MM) | |
| Input Sensitivity | 720mV (Line, Volume = 0dB) |
| 3.1mV (Phone MM, Volume=0dB) | |
| Input Impedance | 10K (Line) |
| 47K // 100pF (Phono MM) | |
| Total Harmonic Distortion (THD) | < 0.0004% (1KHz @ 2V, Volume = 0dB) |
| Frequency Response | 20Hz-20kHz (+/-0.1dB) |
| Signal-to-Noise Ratio | >110dB (Line,A-weighted) |
| 76dB (Phono MM,A-weighted) | |
| DAC | |
| D to A Converter | ES9038Q2M |
| Total Harmonic Distortion (THD) | < 0.0006% (1KHz @ 0dBFS) |
| Output level (0dBFS, 1KHz) | 2.1Vrms |
| Max. Sampling Frequency | Optical, Coaxial: 192KHz |
| Ethernet,Wi-Fi: 192KHz | |
| USB A:48kHz | |
| PC USB: PCM768kHz, DSD512 | |
| Signal-to-noise Ratio (S/N) | 114dB (A-weighted) |
| Power Amplifier Section | |
| Gain | +29dB |
| Rated Power Output | 2 x 50W (8 ohm, THD < 1%) |
| 2 x 75W (4 ohm, THD < 1%) | |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) |
| Total Harmonic Distortion (THD) | < 0.003% (1kHz @ 40W / 8ohm) |
| Input Sensitivity | 720mV |
| Signal-to-Noise Ratio (S/N) | 110dB (A - weighted) |
| Max. Output Current | 9A |
| Headphone Amplifier | |
| Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW ) |
| Output Impedance | 10ohm |
| Load impedance | 20-600 ohm |
| General | |
| Standby Power Consumption | < 0.5W |
| Net Weight | 9.1kg |
| Gross Weight | 11kg |
| Dimensions (mm) (W x H x D) | 440 x156 x 327 |
| Carton Size (mm) (W x H x D) | 540 x 412 x 210 |
| Finish | Black / Silver |
