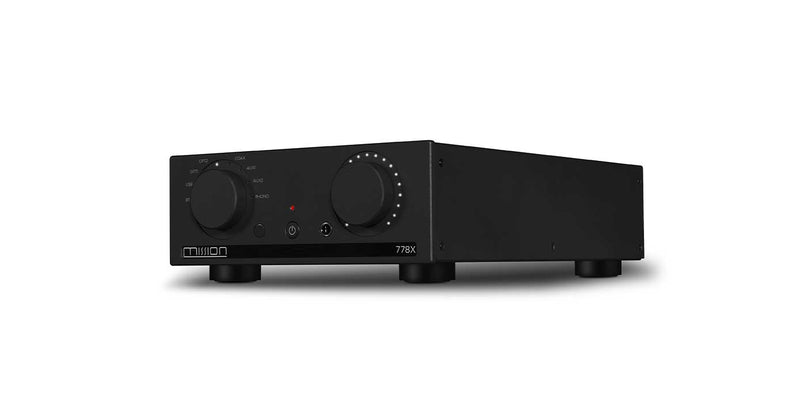

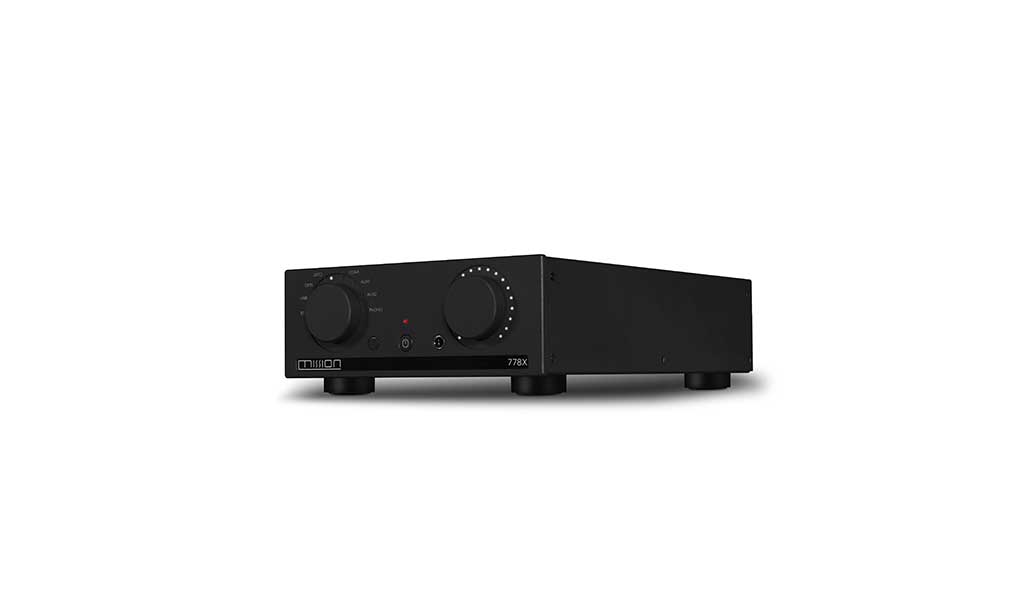

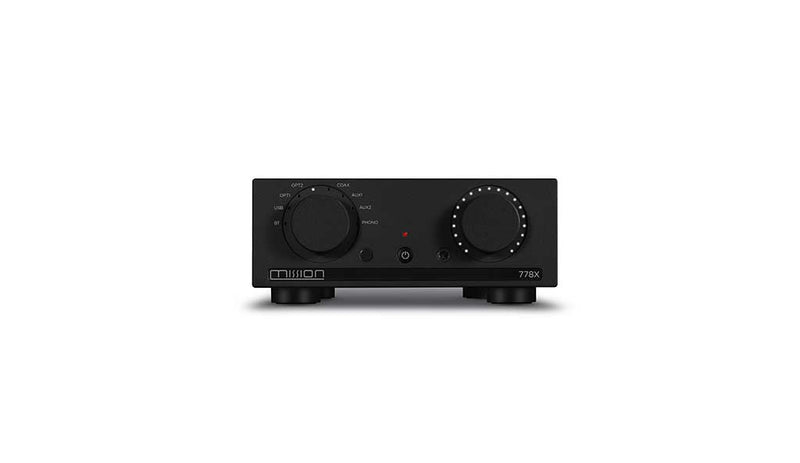

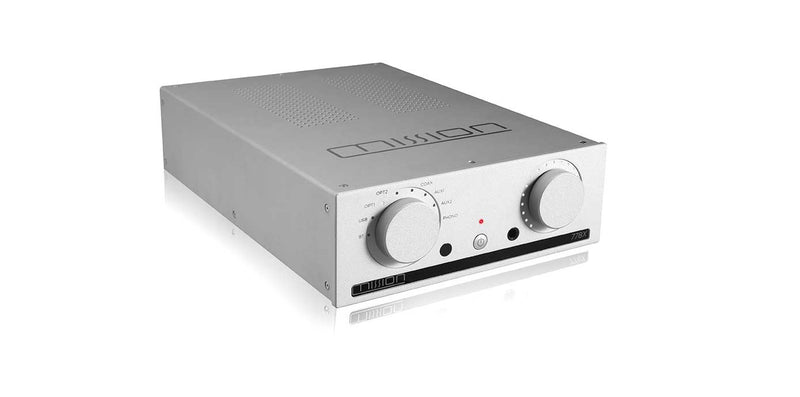

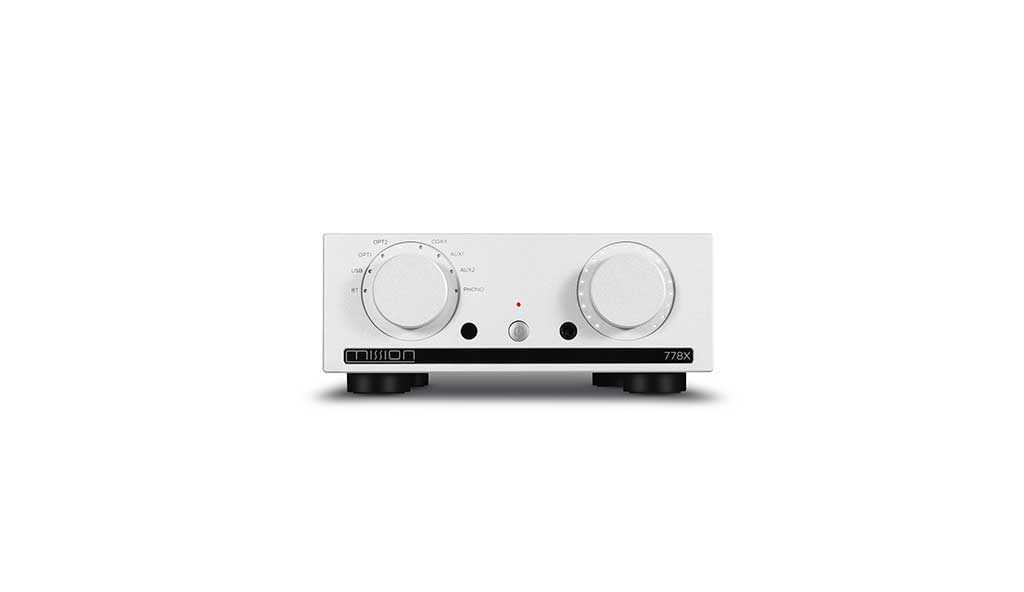

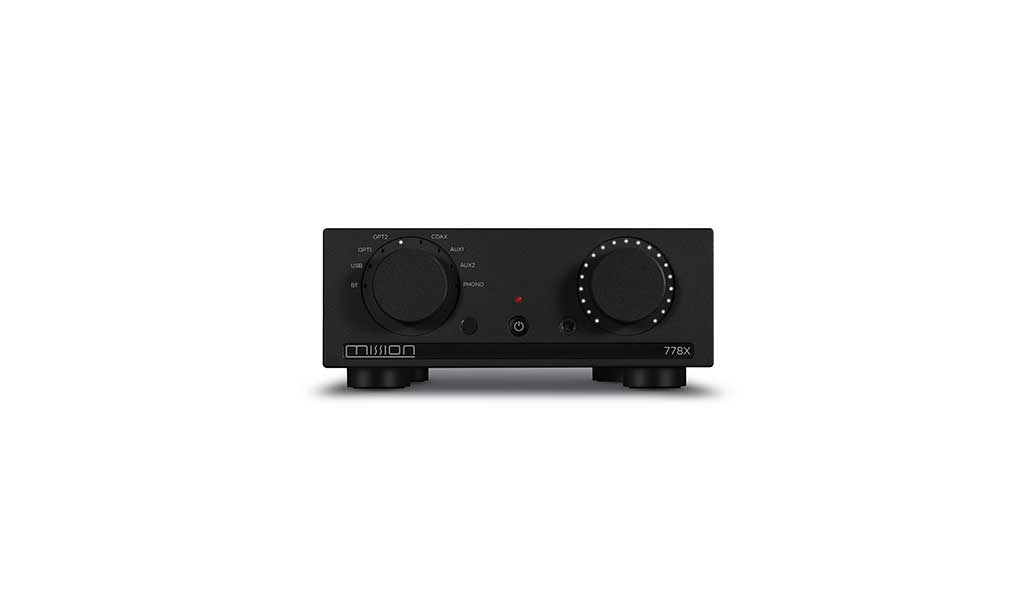

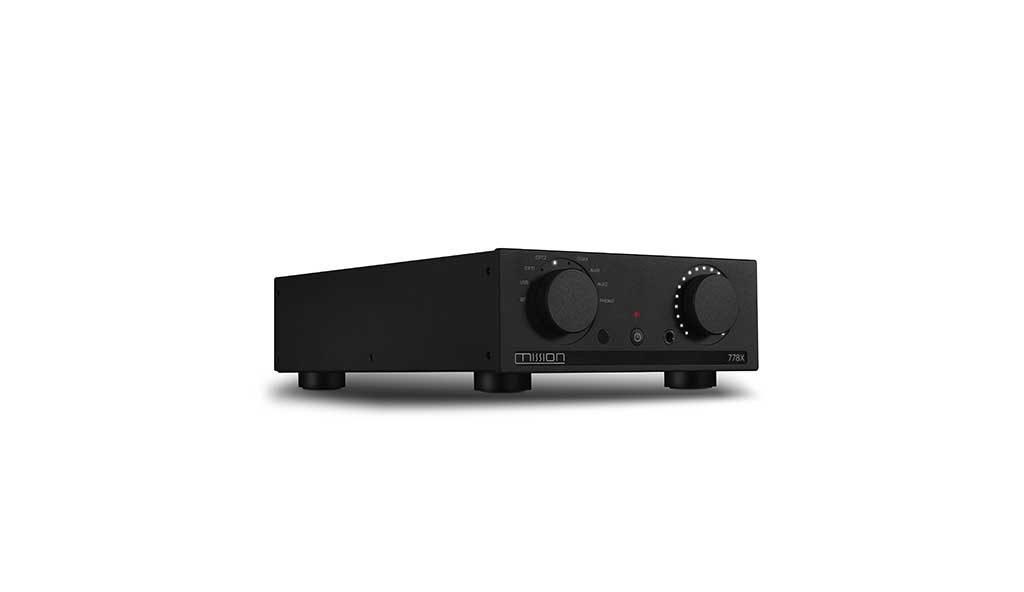

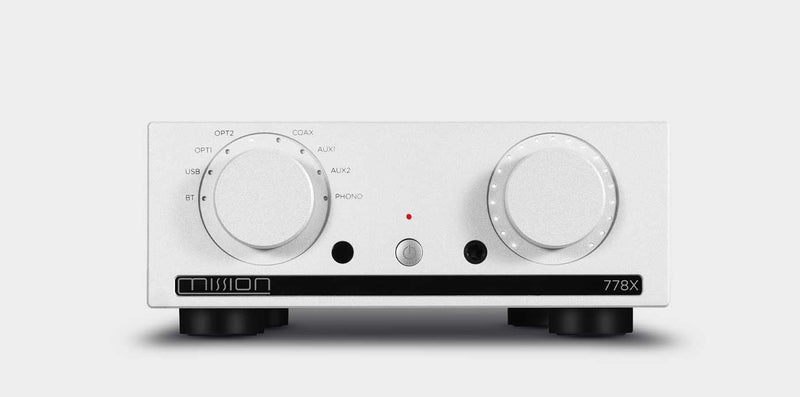

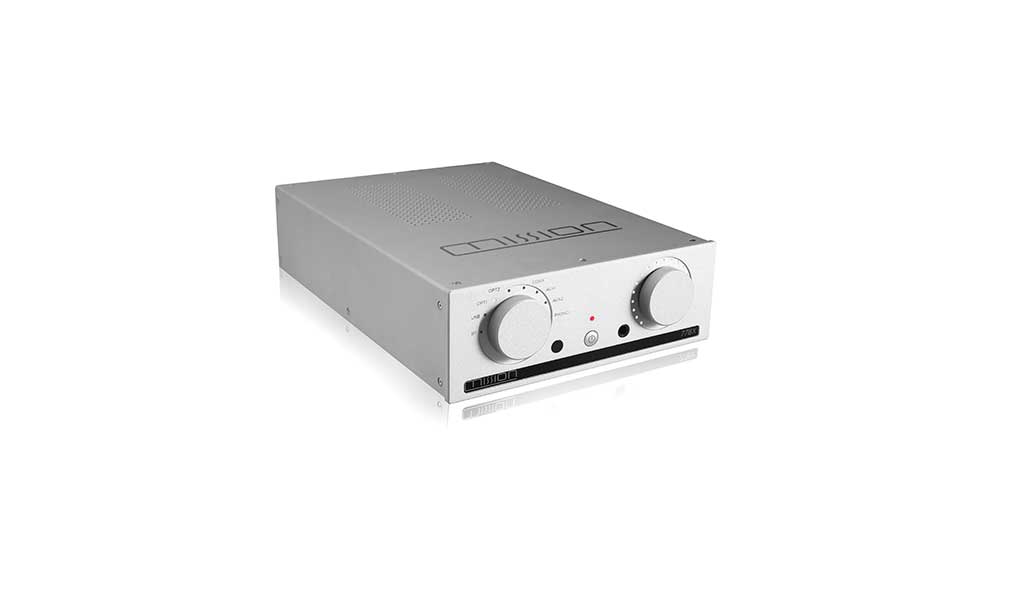

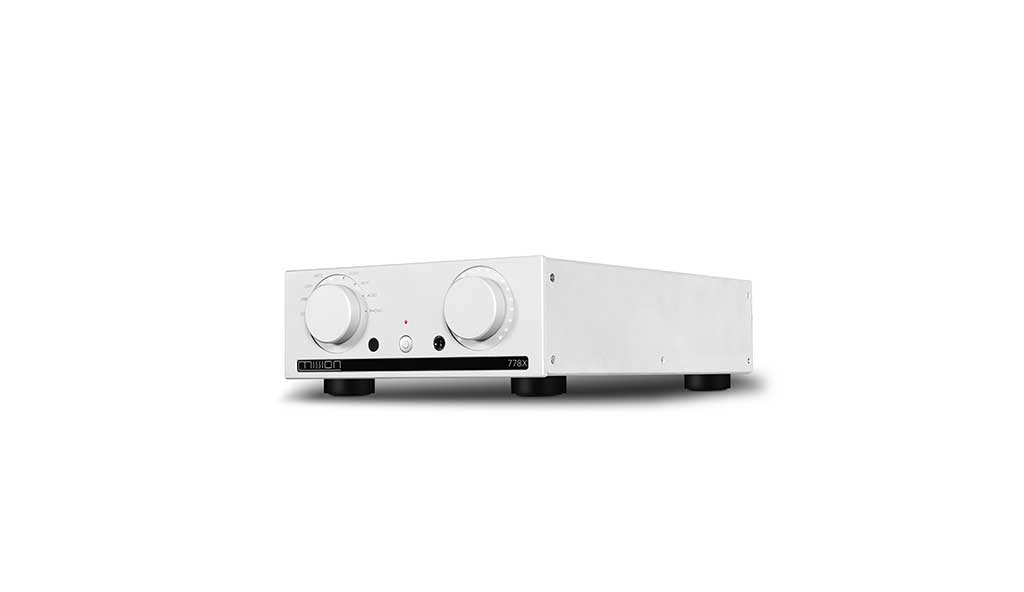

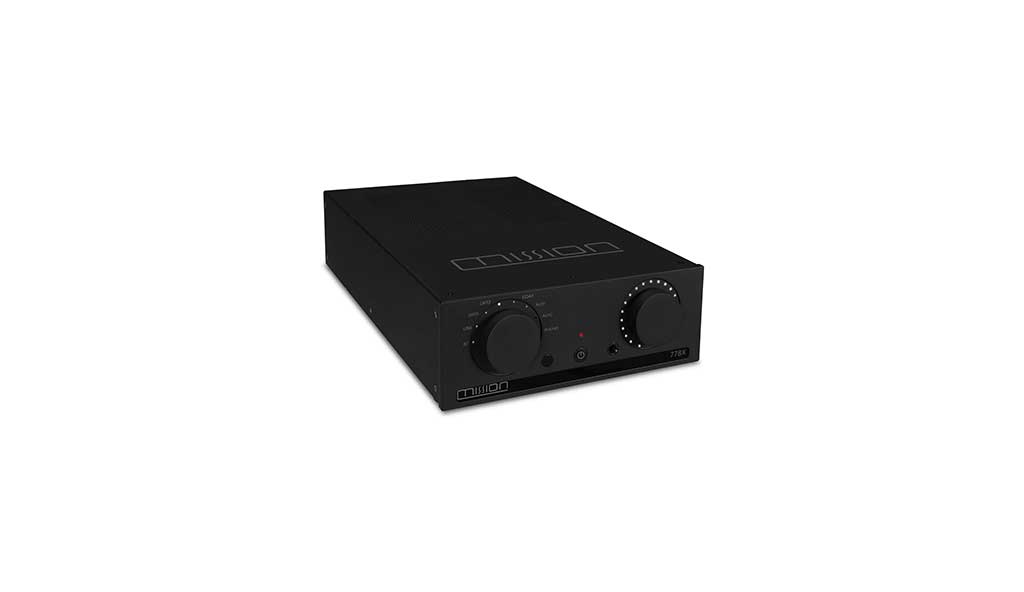

Mission 778X Integrated Amplifier
Technical specifications
Power Amplifier Section | |
Rated Power Output | 2 x 45W (8ohms) 2 x 65W (4ohms) Class AB |
Frequency Response | 20Hz-20kHz (+/-0.5dB) |
Signal-to-Noise Ratio | 108dB (ref. 45W A-weighted) |
Total Harmonic Distortion | <0.005% (30W / 8ohms) |
Preamplifier Section | |
Gain | +0dB (line), +47dB (Phono MM) |
Input Sensitivity | 540mV (Line, Vol. = 0dB); 2.5mV (Phono MM Vol. = 0dB) |
Input Impedance | 10K (Line); 47K // 100pF (Phono MM) |
Frequency Response | 20Hz-20kHz (+/-0.1dB) |
Signal-to-Noise Ratio | > 110dB (Line A-weighted) |
Total Harmonic Distortion | <0.003% |

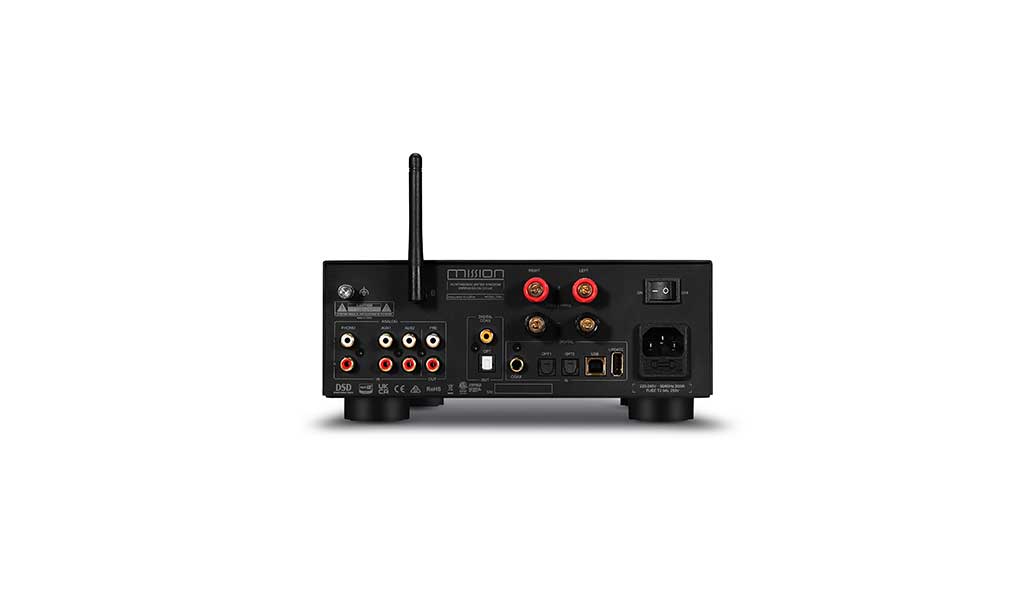

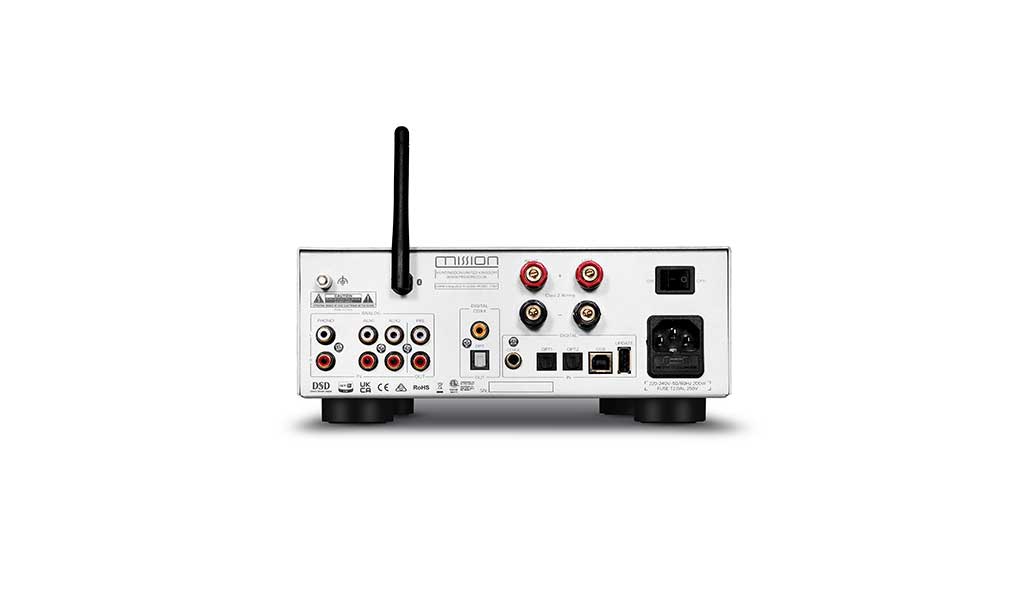

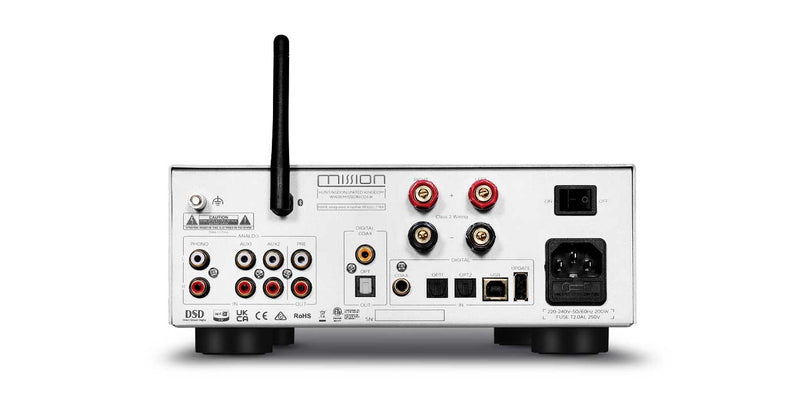

Input/Output | |
Analogue Inputs | 2x Aux,1 x Phono (MM), |
Digital Inputs | 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC) |
Audio Outputs | 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out) |
DAC | |
D to A Converter | ESS Sabre32 ES9018K2M |
Total Harmonic Distortion (THD) | <0.001% (1kHz @ 0dBFS) |
Max. Sampling Frequency | Optical/Coax: 192kHz; PC USB PCM384kHz, DSD256 |
General | |
Included Accessories | Remote Control, Power Chord, User Manual, Antenna |
Dimensions ( H x W x D ) | 98 x 236 x 380.6mm |
Weight | 6.3kg |

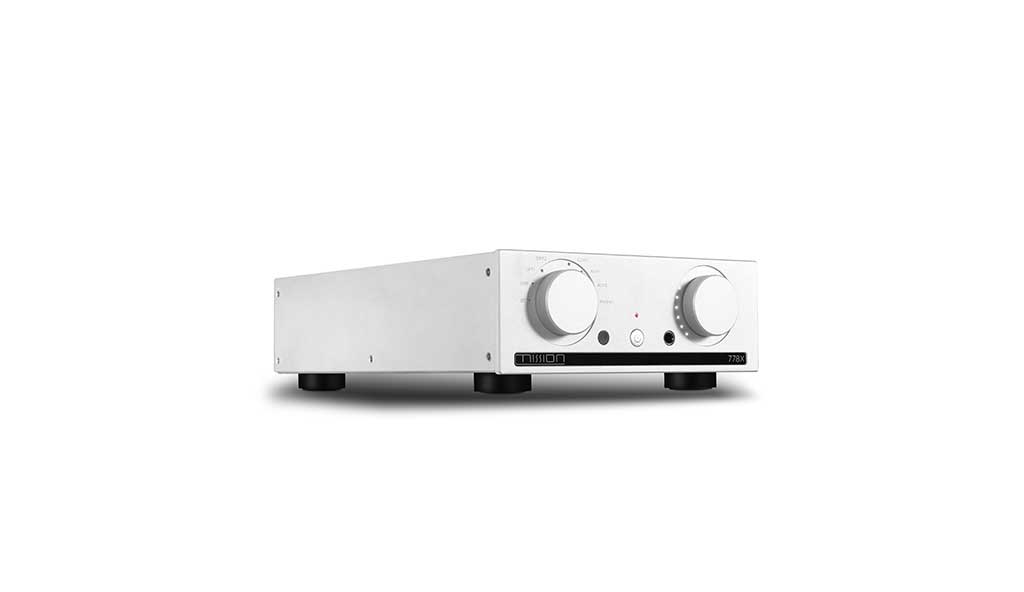

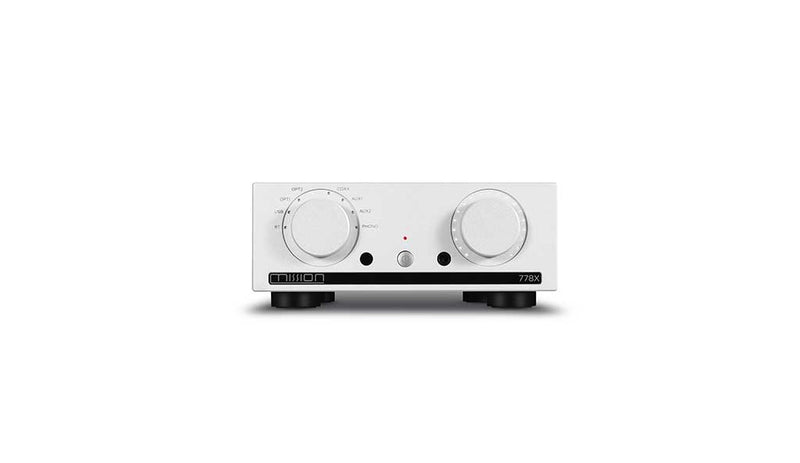

Colour Choice | Black or Silver |
