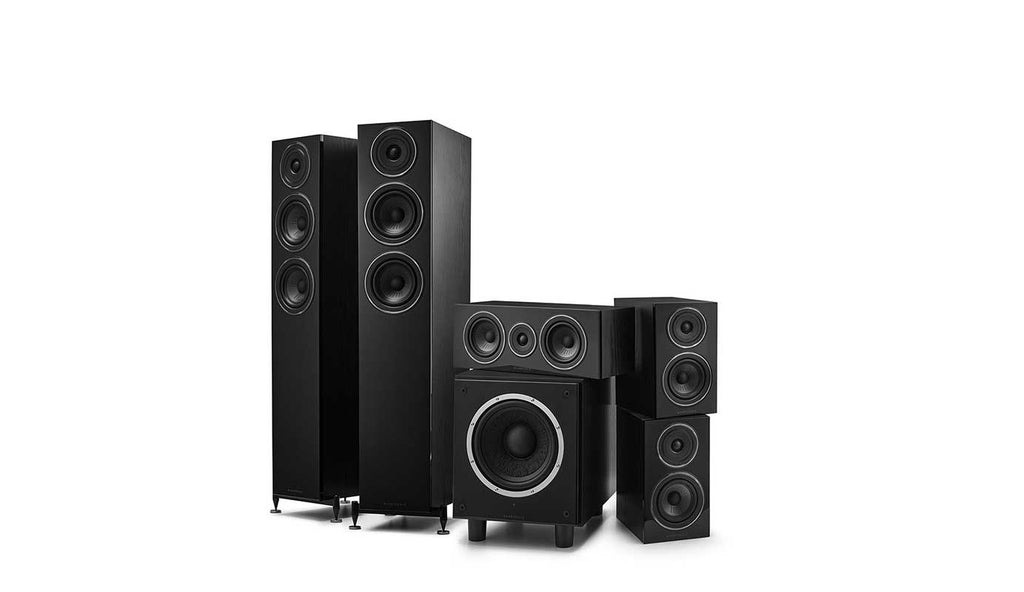

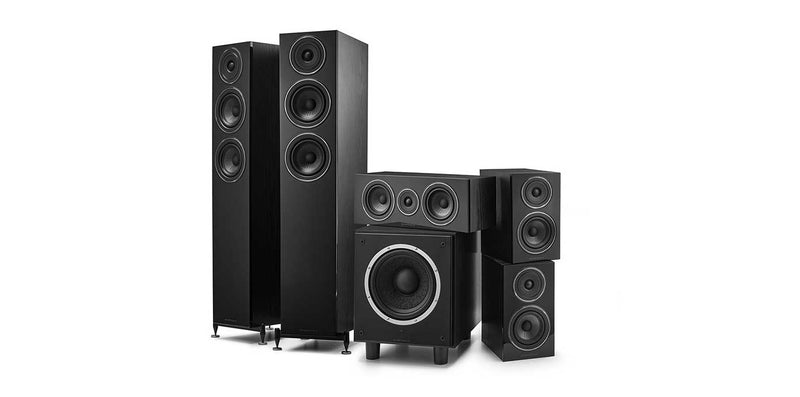

Diamond 12.3 HCP
Technical specifications

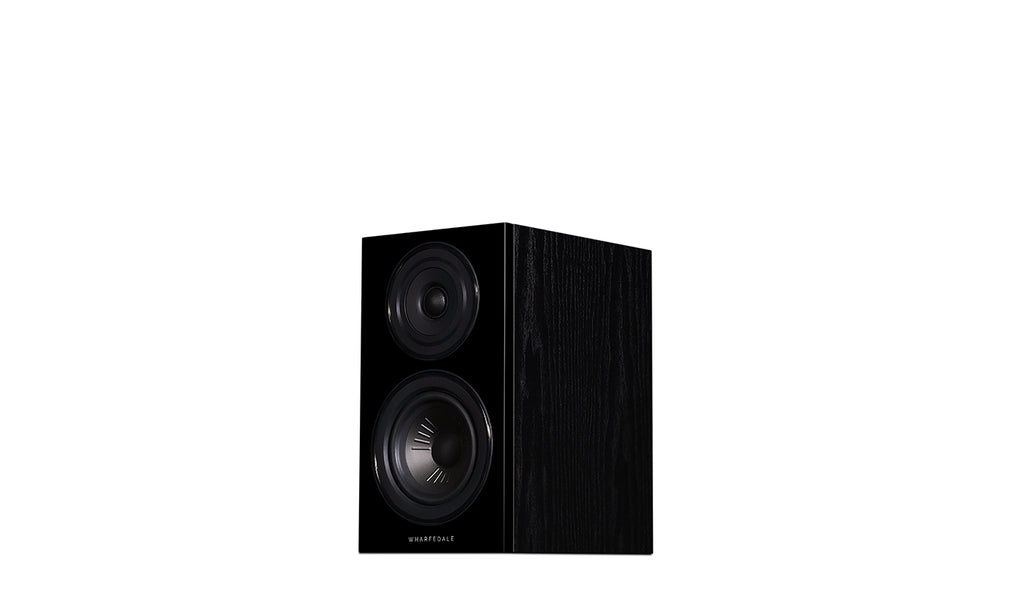

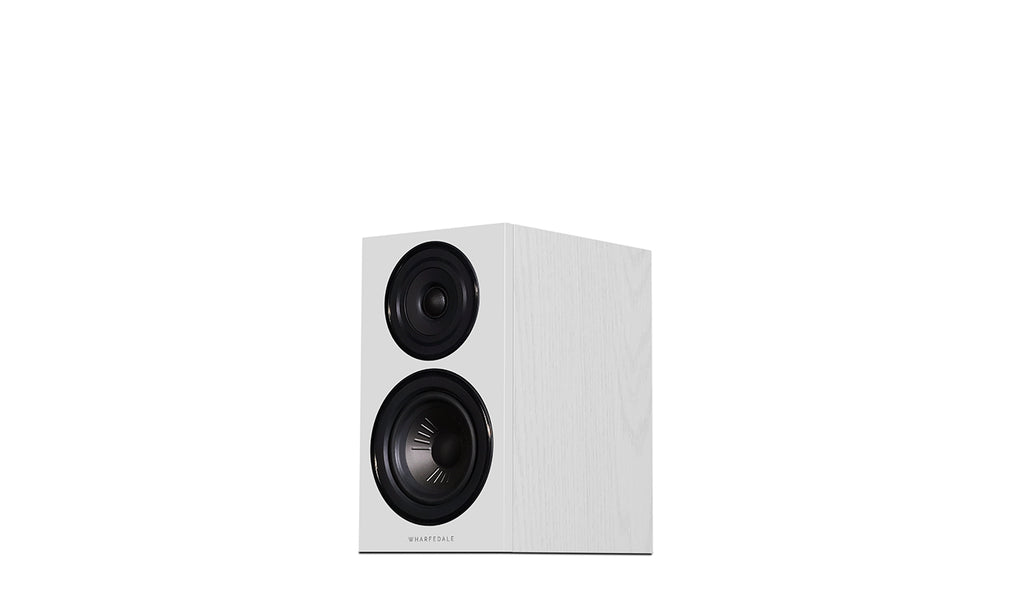

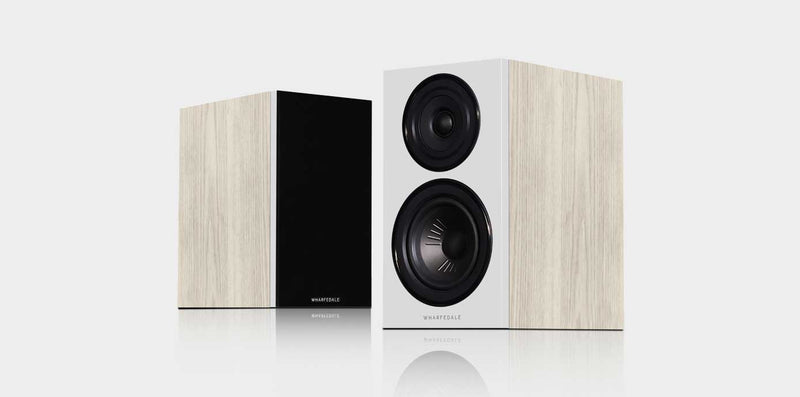

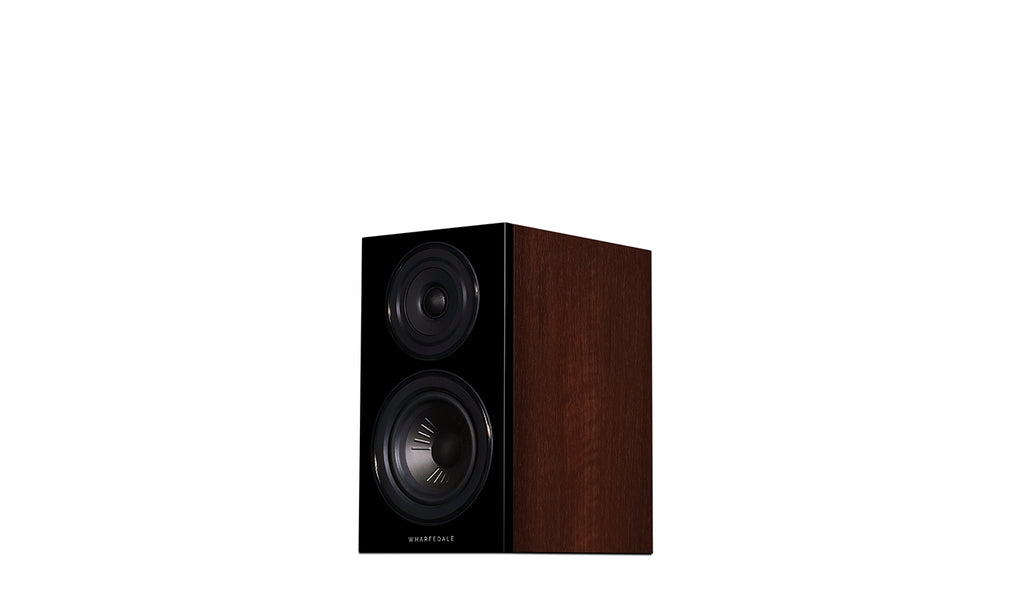

Diamond 12.3 | |
General description | 2-way bookshelf speaker |
Bass driver | 5"(130mm) advanced PP Cone |
Treble driver | 1"(25mm) Textile Dome |
Recommended amplifier power | 20-100W |
Nominal impedance | 8Ω Compatible |
Sensitivity(2.83V @ 1m) | 88dB |
Frequency response(+/-3dB) | 65Hz ~ 20kHz |
Dimensions ( H x W x D ) | 312 x 180 x (250+28) mm |
Net weight | 6.8kg/pcs |
- | |

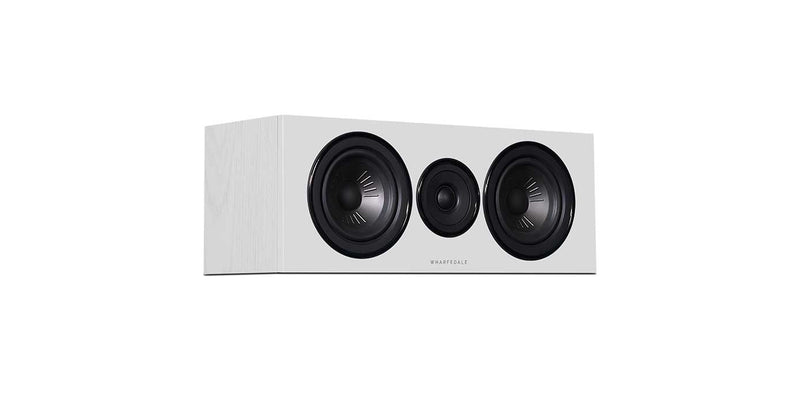

Diamond 12.1 | |
General description | 2-way centre speaker |
Bass driver | 2x5"(130mm) advanced PP Cone |
Treble driver | 1"(25mm) Textile Dome |
Recommended amplifier power | 20-120W |
Nominal impedance | 8Ω Compatible |
Sensitivity(2.83V @ 1m) | 90dB |
Frequency response(+/-3dB) | 90Hz ~ 20kHz |
Dimensions ( H x W x D ) | 180 x 480 x (180+28) mm |
Net weight | 8.5kg/pcs |
- | |

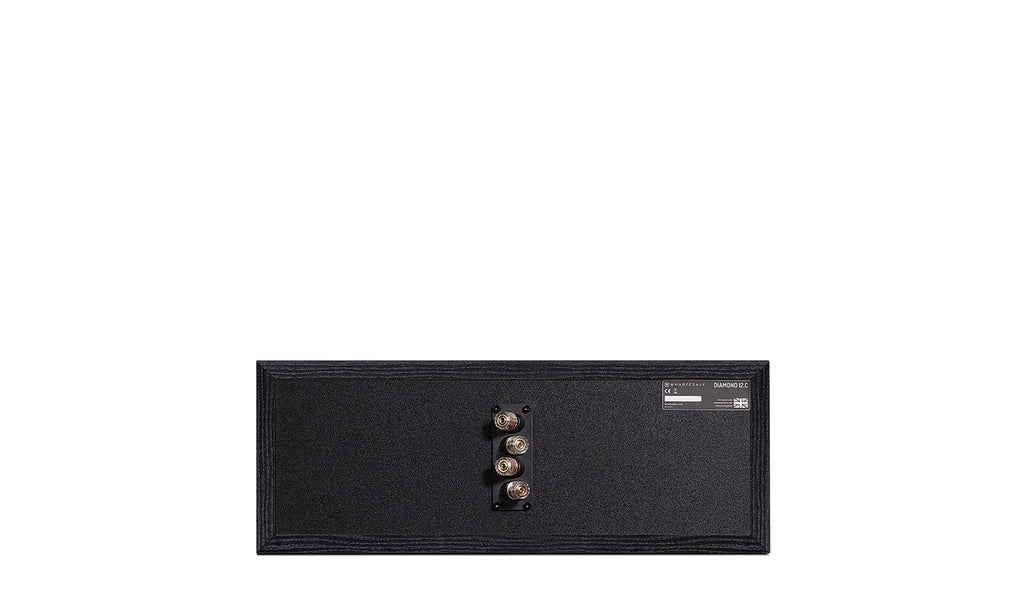

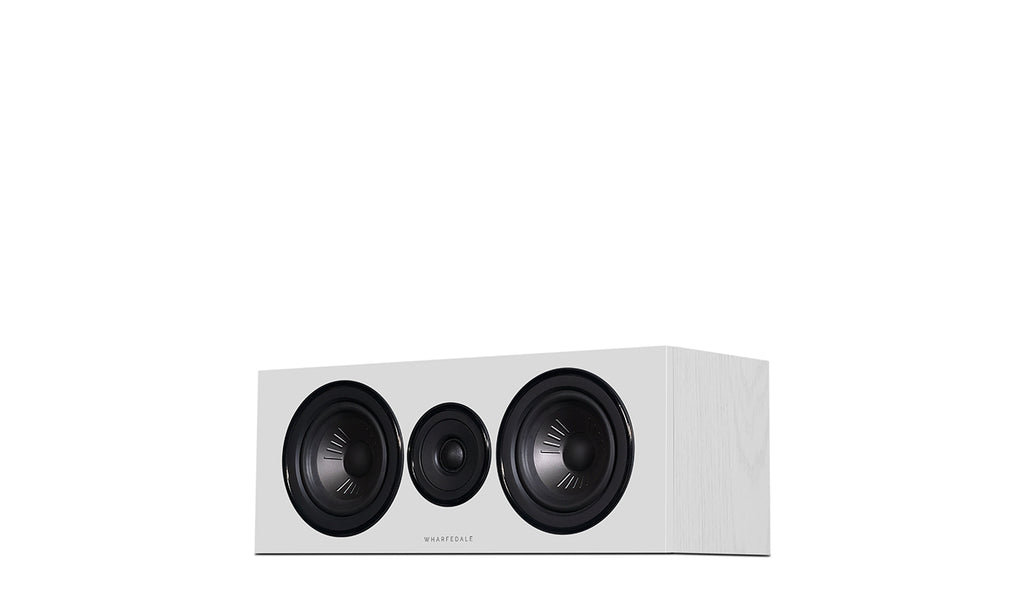

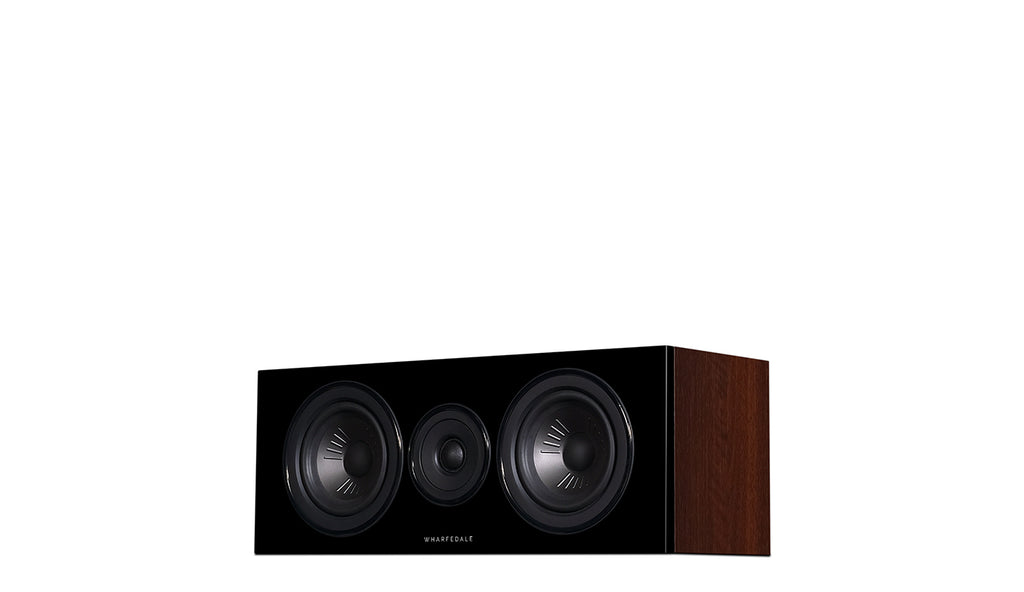

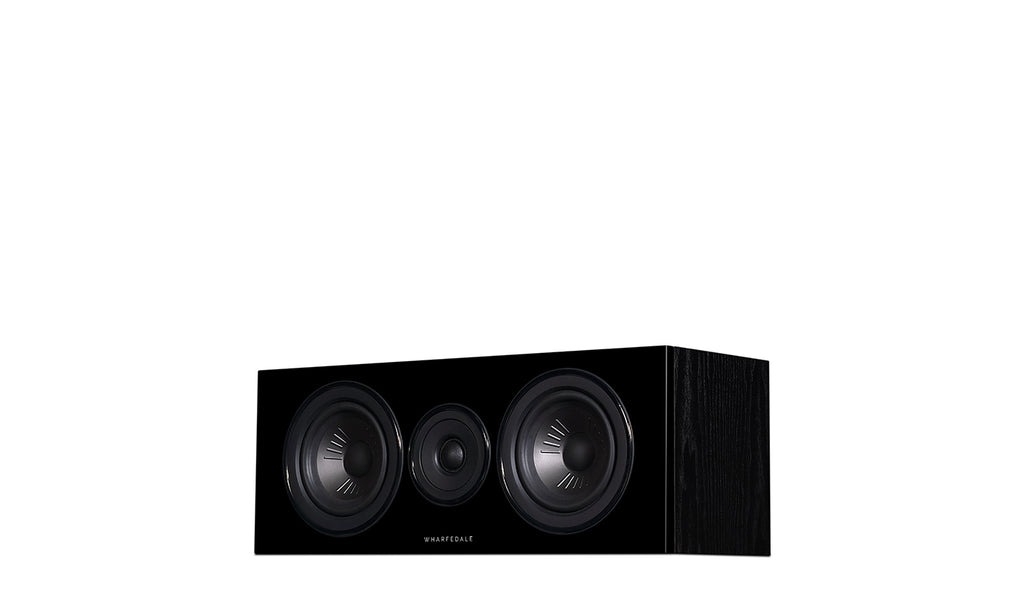

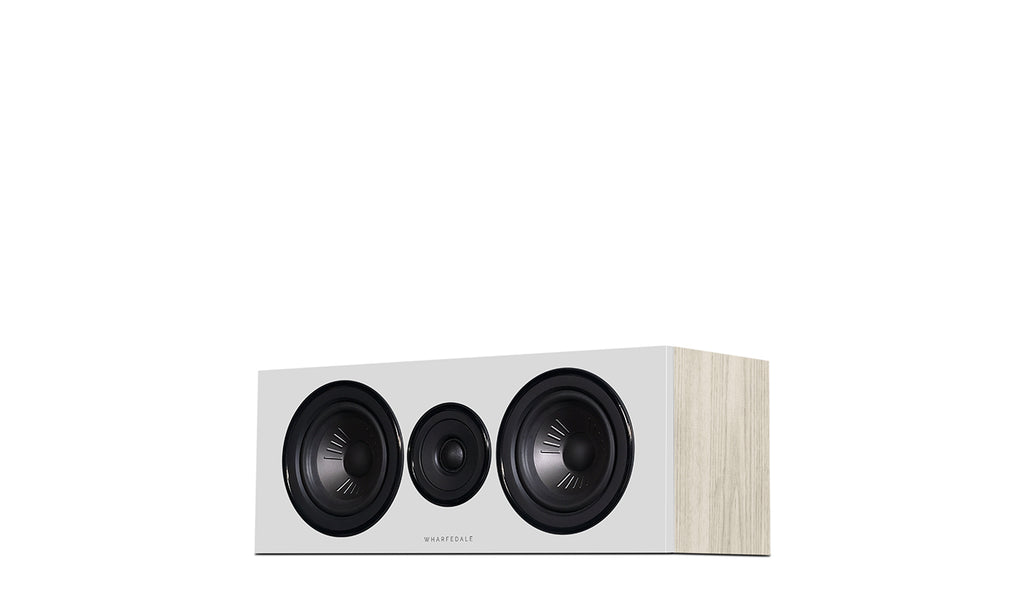

Diamond 12.C | |
General description | 2-way centre speaker |
Bass driver | 2x5"(130mm) advanced PP Cone |
Treble driver | 1"(25mm) Textile Dome |
Recommended amplifier power | 20-120W |
Nominal impedance | 8Ω Compatible |
Sensitivity(2.83V @ 1m) | 90dB |
Frequency response(+/-3dB) | 90Hz ~ 20kHz |
Dimensions ( H x W x D ) | 180 x 480 x (180+28) mm |
Net weight | 8.5kg/pcs |
- | |

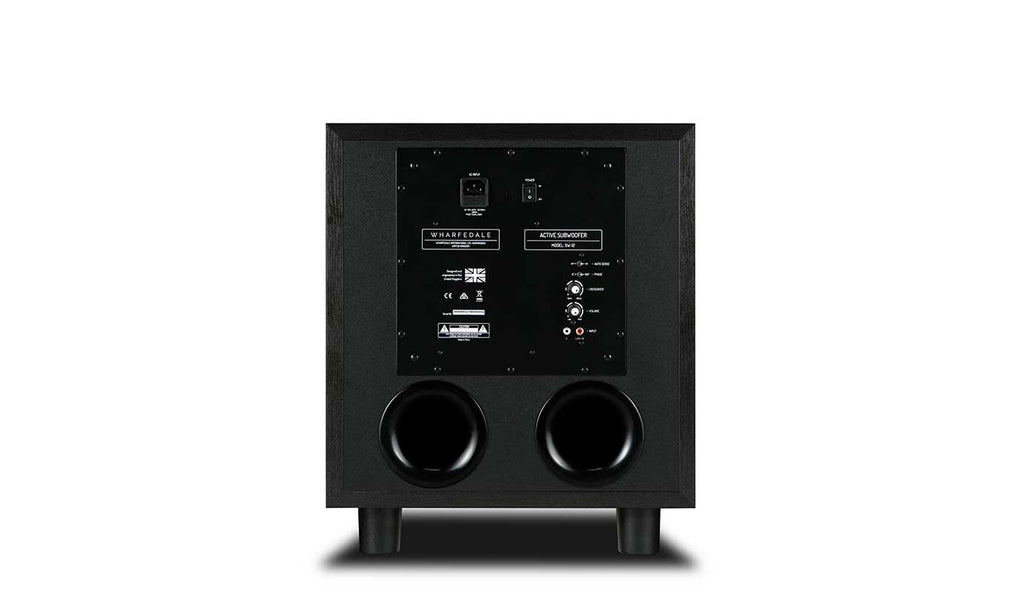

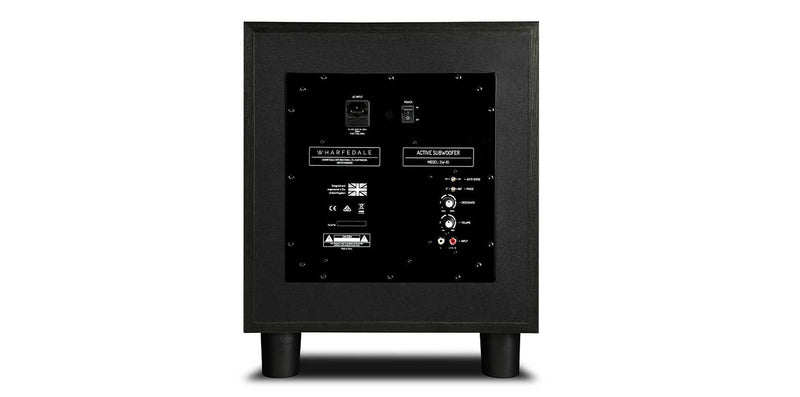

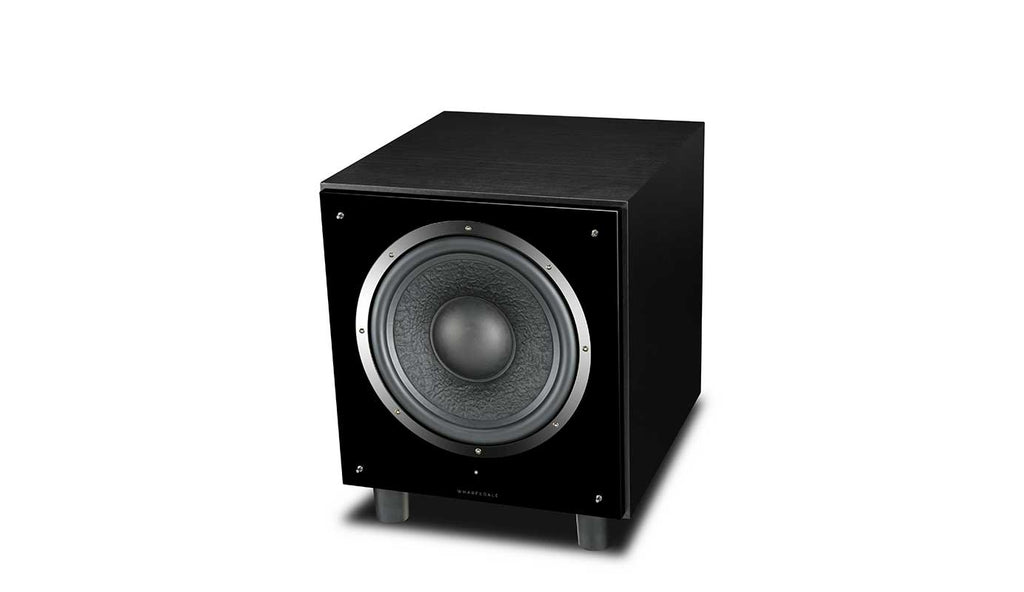

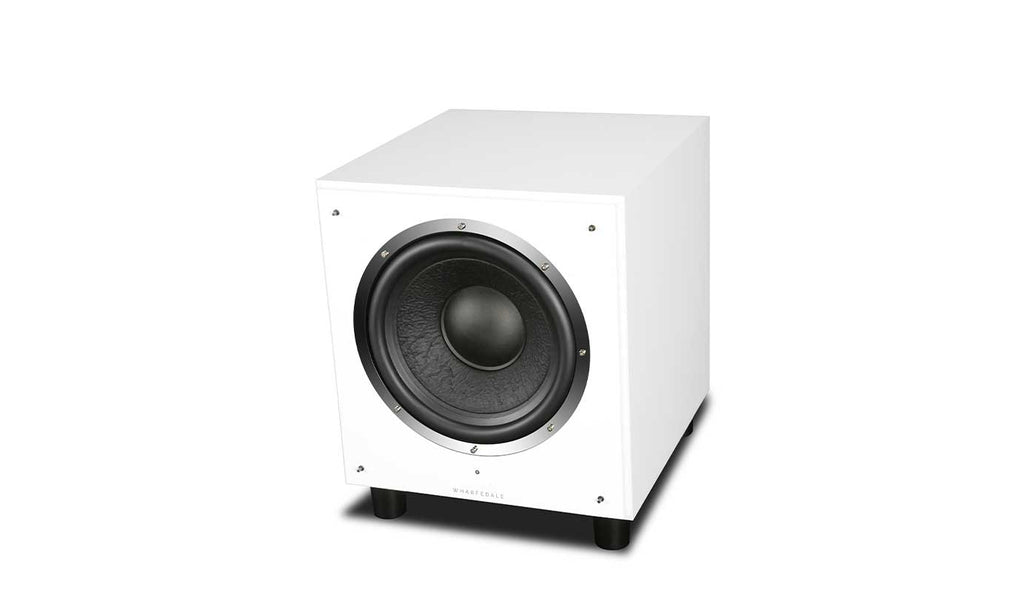

SW-10 | |
Drive Units | 1x(10") 250mm cone long-throw |
Frequency Response | 40 - 120Hz +/- 3dB |
Amplifier Power Output | 200W |
Peak Power Output | 350W |
Line Input Sensitivity | 200mv for maximum output |
Crossover Range | 30-150Hz |
Inputs | Stereo Line In (2 x RCA Phono) |
Mono (LFE) Line In (RCA Phono) | |
Input Impedance | Line Input 10kΩ |
LFE 5kΩ | |
Signal-to-noise ratio (S/N) | ≥85dB |
Avg. Max Output @1m | 110dB |
Features | Phase inversion, Auto on-off |
Dimensions (HxWxD) | 416 x 336 x 381mm |
Net weight | 15kg |
