DIGITAL THAT DELIVERS INCREDIBLE

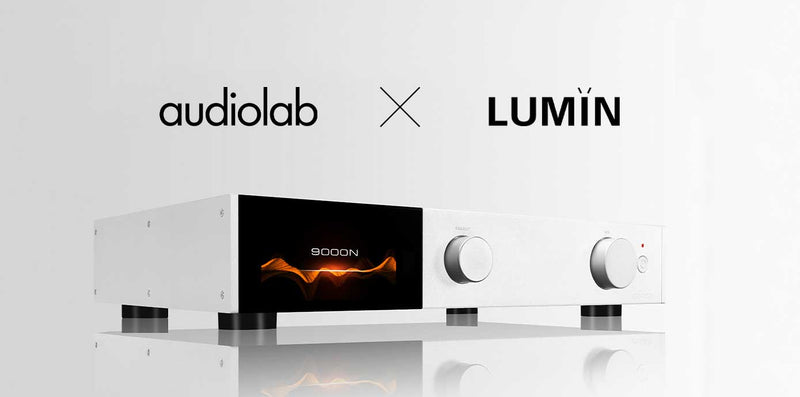

AUDIOLAB 9000N
PALM SIZED MUSIC POWER
WELCOME TO A WORLD OF COLOUR
TRULY STUNNING STREAMING
SETTING NEW BENCHMARKS
EVERY ALBUM IN FULL COLOUR
READY FOR ROON?
CONNECTED & COMPATIBLE
prefer the in-store experience?
Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

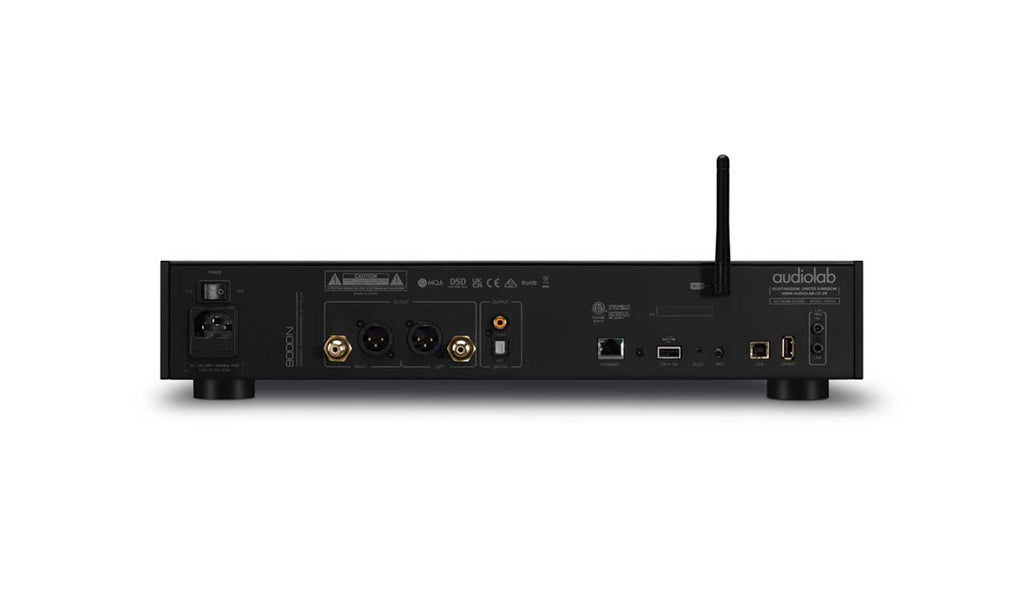

Audiolab 9000N Audio Streaming Player
Technical specifications
| Design philosophy & Core Tecnology | ESS Sabre ES9038Pro 32-bit DAC |
| Quad Arm Cortex A53 core, 1.8 GHz per Core | |
| LUMIN MUSIC Streaming technology (IEE 802.11 a/b/g/n/ac,2.4/5GHz) | |
| UPnP AV protocol with audio streaming extension (OpenHome) | |
| Built-in Certified MQA Full decoder (via streaming & PC USB) | |
| Native support for Spotify Connect, TIDAL Connect, MQA, Qobuz and TunIn Radio | |
| Roon Ready | |
| Gapless Playback | |
| High-resolution album artwork display | |
| Digital Section | |
| Digital output intensity | 500 +/- 50mVpp |
| Output impedance | 75ohms |
| Frequency response | -0.01dB (20Hz - 20kHz, ref.1kHz) |
| Max. Sampling Frequency | 192kHz / 24-bit |
| Digital output | 1 x Coaxial, 1 x Optical |
| DAC | |
| Variable Output Voltage | 0 – 2.05Vrms |
| DAC | ES9038Pro |
| Frequency Response | +/-0.5dB (20Hz - 20kHz, ref.1kHz) |
| Total Harmonic Distortion | <0.001% (1kHz @ 2.05Vrms) |
| Max. Sampling Frequency | 768kHz / 32-bit |
| Signal-to-Noise Ratio (A-weighted) | >116dB(RCA), >120dB(XLR) |
| Output Impedence | 120ohm |
| General | |
| Standby Power Conmsumption | <0.5W |
| Net weight | 6.2kg |
| Gross weight | 8kg |
| Dimensions ( H x W x D ) | 89 x 444 x 333 |
| Finish | Black/Silver |
| Included Accessories | Power Chord, Remote, User Manual |
