PLEASE NOTE
THIS IS AN OPEN BOX PRODUCT

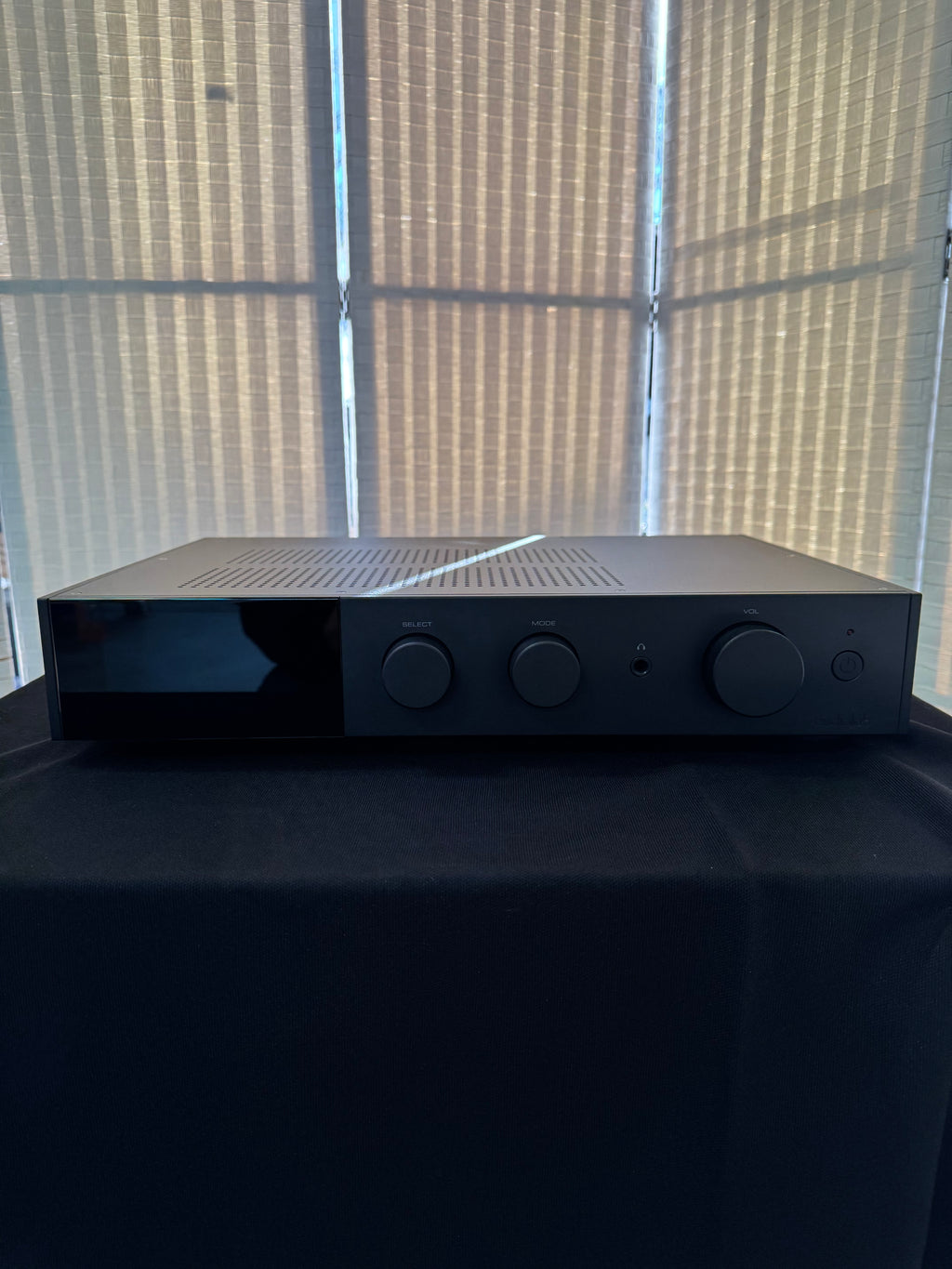

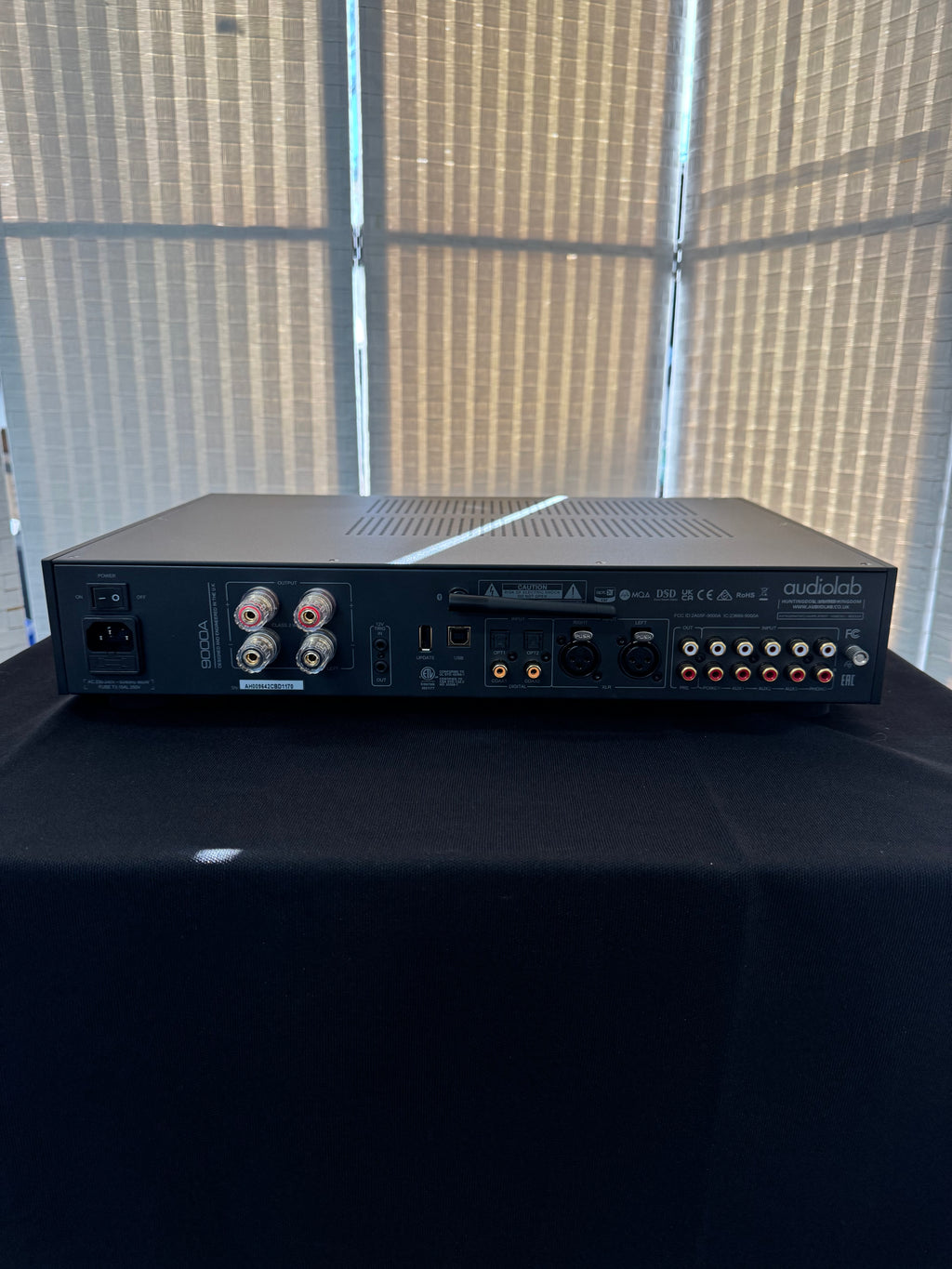

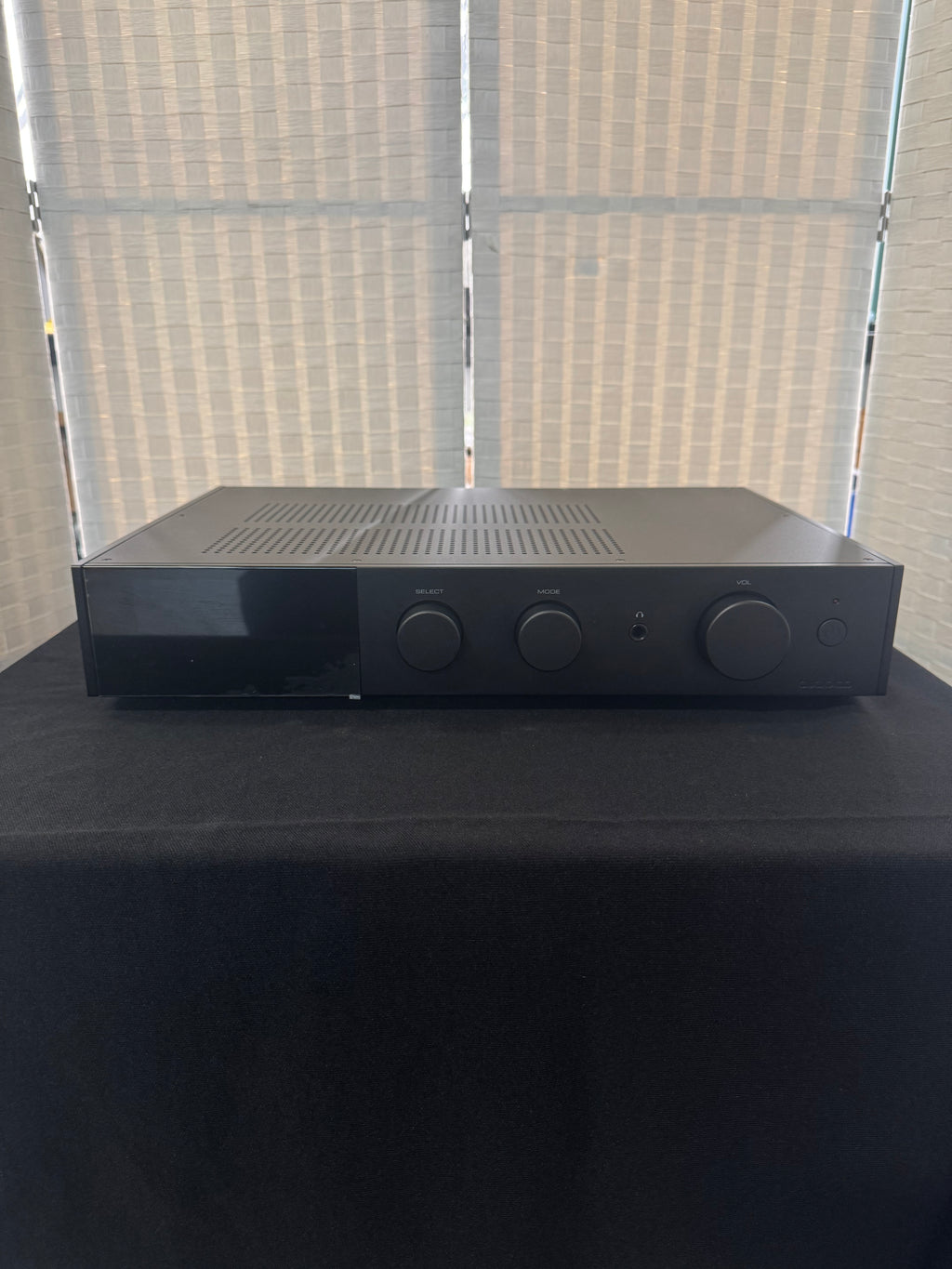

Audiolab 9000A Integrated Amplifier (Open Box)
Technical specifications
| Power Amplifier Section | |
| Rated Power Output | 2 x 100W (8ohms) 2 x 160W (4ohms) |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) |
| Signal-to-Noise Ratio | 115dB (Line & XLR, A-weighted) |
| Total Harmonic Distortion | <0.003% (1kHz @ 0dBFS) |
| Preamplifier Section | |
| Gain | +8dB (line & XLR), +55dB (Phono MM) |
| Input Sensitivity | 1Vrms (Line, Volume = 0dB); 2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB) |
| Input Impedance | 10K (Line & XLR); 47K // 100pF (Phono MM) |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) |
| Signal-to-Noise Ratio | > 112dB (Line & XLR, A-weighted) |
| Total Harmonic Distortion | <0.004% (1kHz @ 2V, Volume = 0dB) |
| Input/Output | |
| Analogue Inputs | 3 x Aux, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier |
| Digital Inputs | 2 x SPDIF (Coax), 2 x (Optical), 1 x PC USB (USB B) |
| Audio Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
| DAC | |
| D to A Converter | ES9038Pro |
| Total Harmonic Distortion (THD) | <0.001% (1kHz @ 0dBFS) |
| Max. Sampling Frequency | Optical/Coax: 192kHz; PC USB PCM768kHz, DSD51 |
| Signal-to-Noise Ratio | > 117dB (A-Weighted) |
| General | |
| Included Accessories | Remote Control |
| Dimensions ( H x W x D ) | 89 x 444 x 342mm |
| Weight | 8.4kg |
| Colour Choice | Black or Silver |
24 month warranty.
