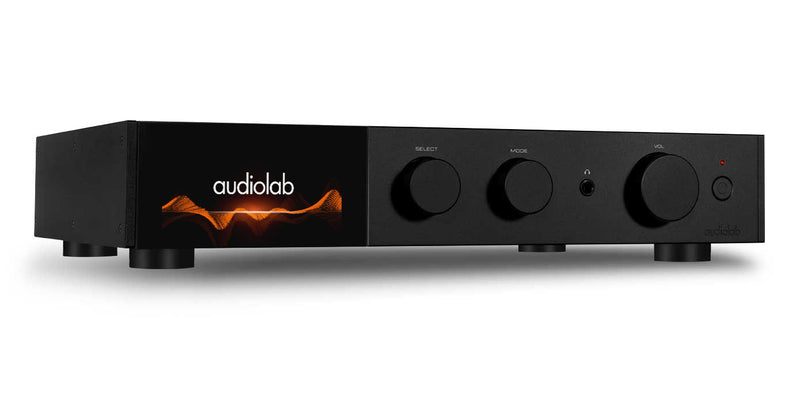

YOUR ADVENTURE AWAITS
![](http://www.avrevolution.com.au/cdn/shop/files/Untitled-2_8c58f9b7-f162-4c27-84c9-b4bc0f2855c4_v2_{width}x.jpg?v=1667474744)
WATT HAVE YOU BEEN MISSING?

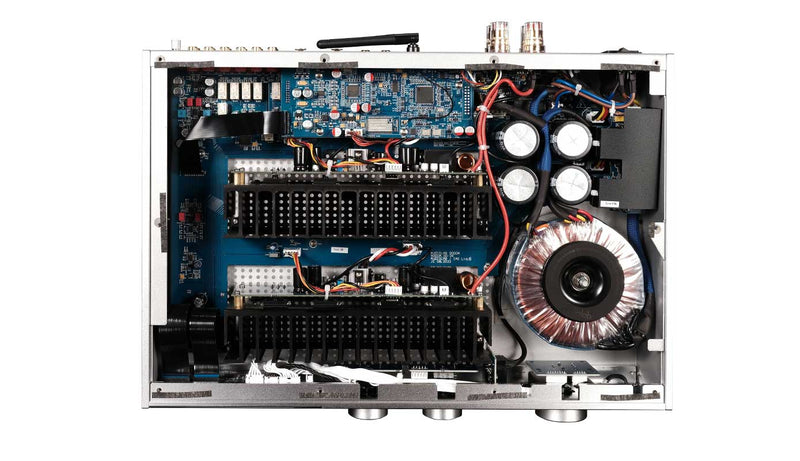

EVERYTHING IN ITS RIGHT PLACE
![](http://www.avrevolution.com.au/cdn/shop/files/Audiolab-9000A-topology_{width}x.jpg?v=1671074383)
![](http://www.avrevolution.com.au/cdn/shop/files/features_v2_{width}x.jpg?v=1667474991)
AN UNFORGETTABLE FORMAT
STORE OR STREAM IT, 9000A SUPPORTS IT
ASSISTING YOUR EVOLUTION
![](http://www.avrevolution.com.au/cdn/shop/files/Audiolab-9000A-headphone_{width}x.jpg?v=1667114841)
PLUG IN. TUNE OUT

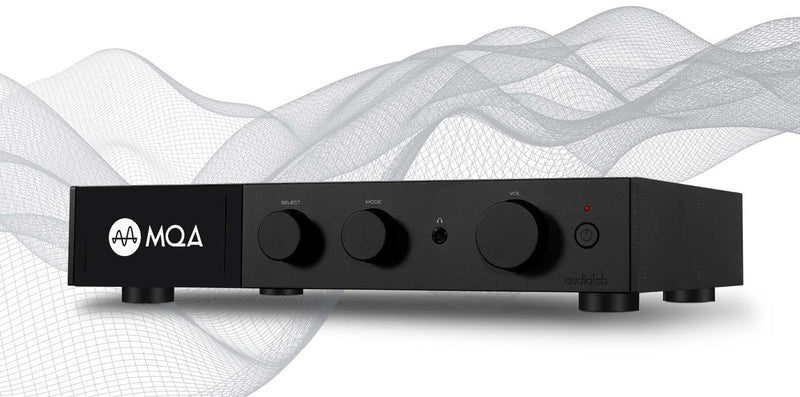

MQA ALL THE WAY
![](http://www.avrevolution.com.au/cdn/shop/files/9000A-_MQA_{width}x.jpg?v=1667161846)
![](http://www.avrevolution.com.au/cdn/shop/files/aptX-Bluetooth_v2_{width}x.jpg?v=1667475135)
NO WIFI? NO WORRIES

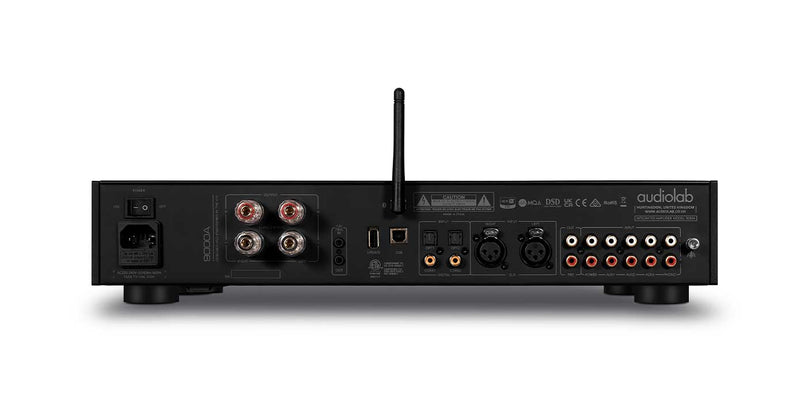

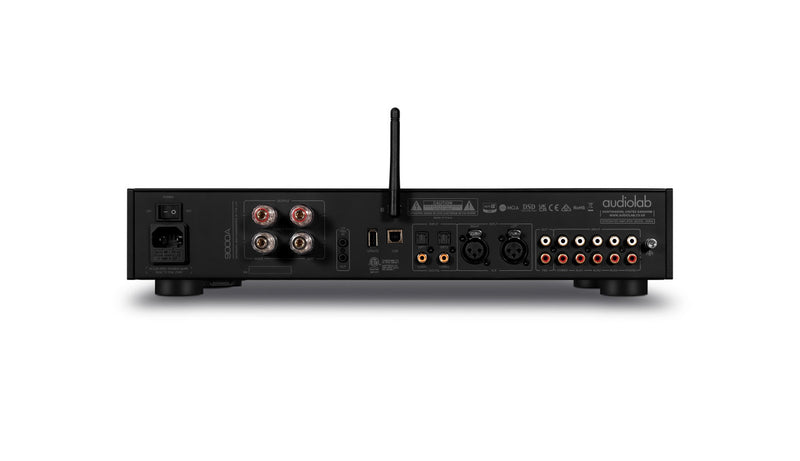

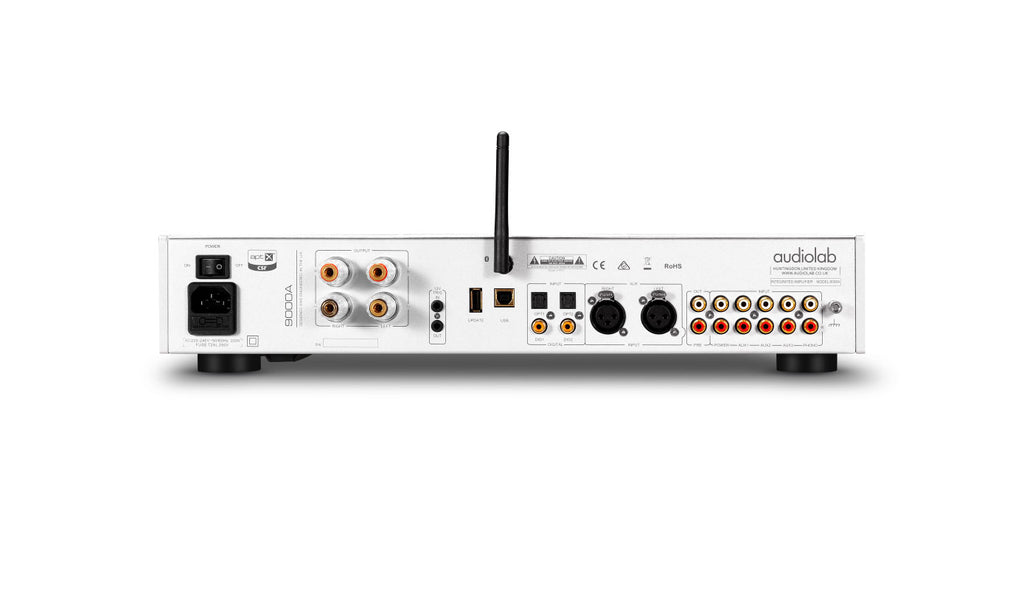

FOR EVERY OBSESSION
![](http://www.avrevolution.com.au/cdn/shop/files/Audiolab-9000A-_back_{width}x.jpg?v=1667157328)
![](http://cdn.shopify.com/s/files/1/0320/1699/0267/files/urban-florist-store_1200x_f6608948-8d3e-45af-bf90-9da97c2ecd3e_{width}x.jpg?v=1606992653)
prefer the in-store experience?
Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

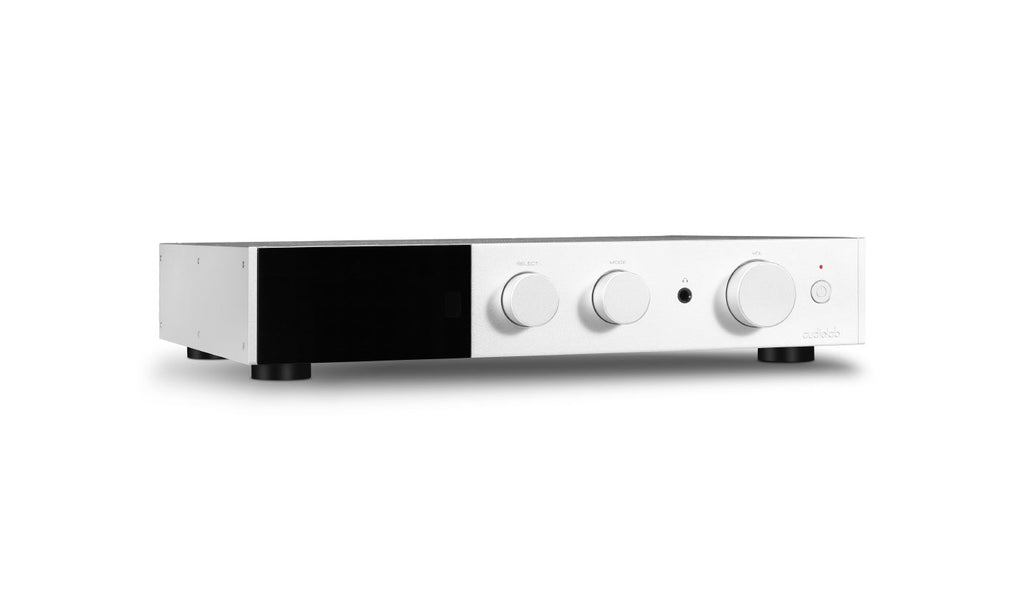

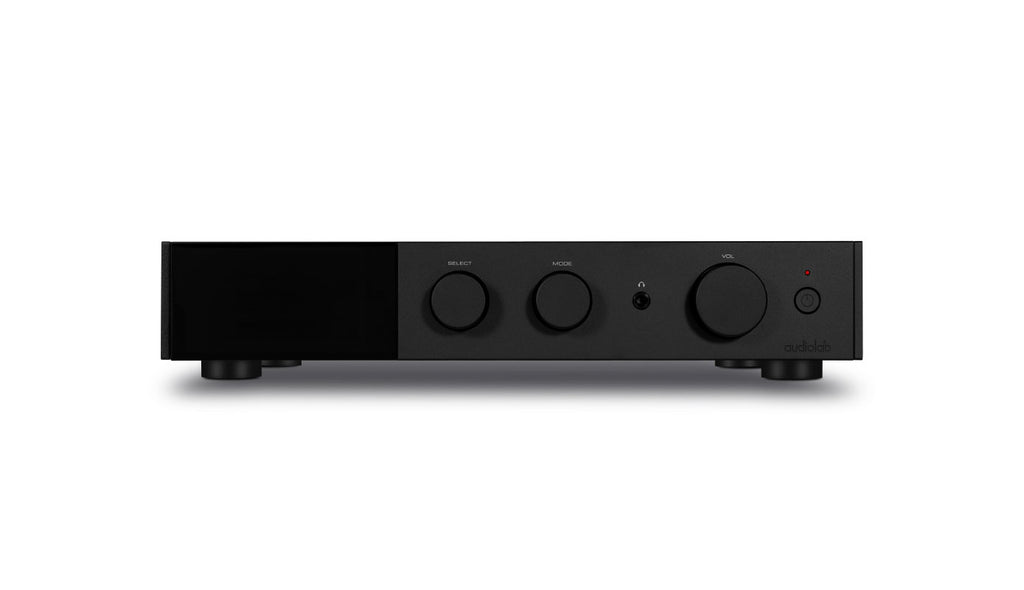

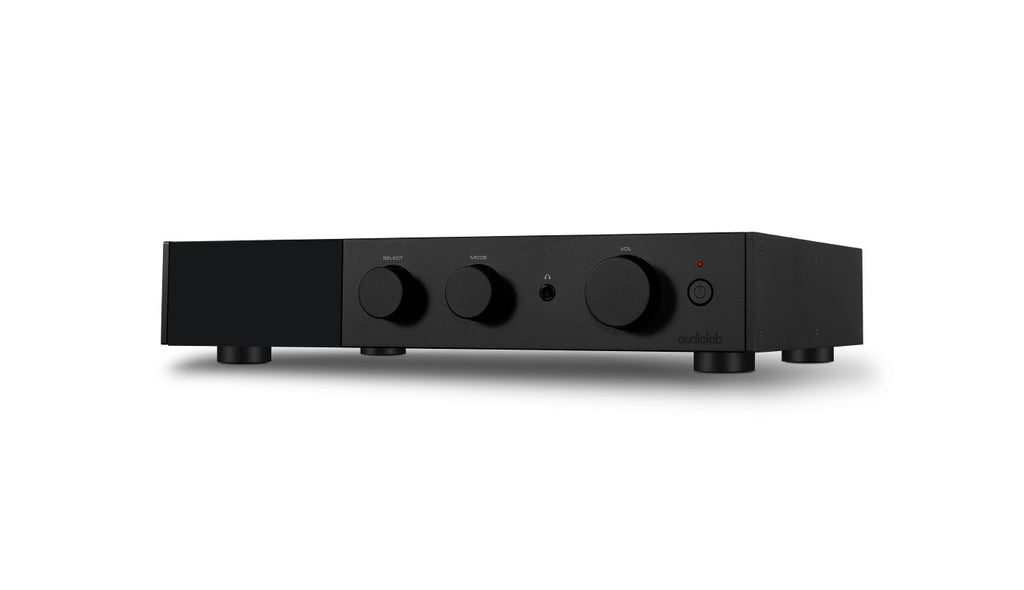

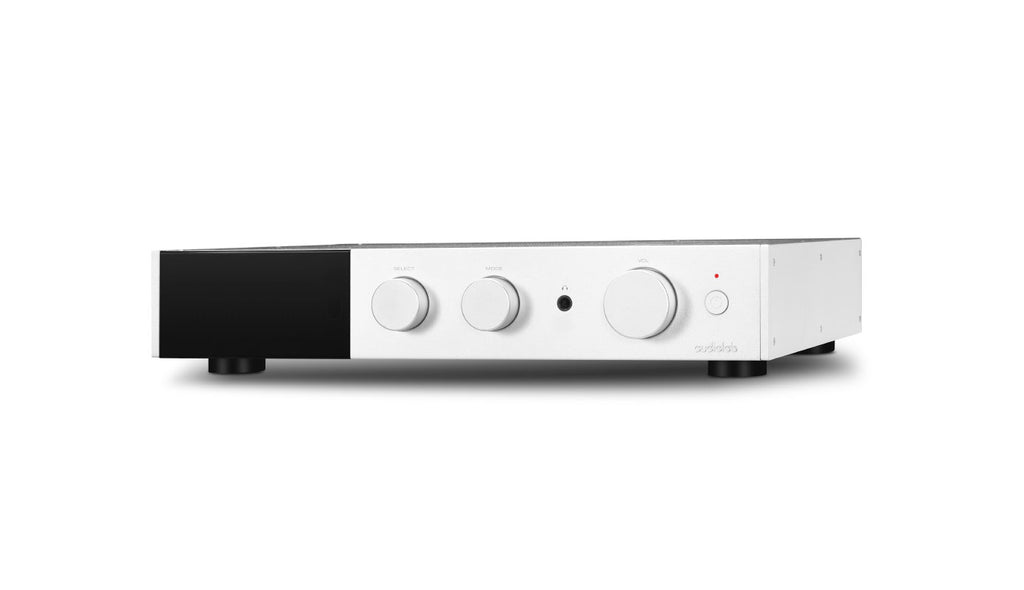

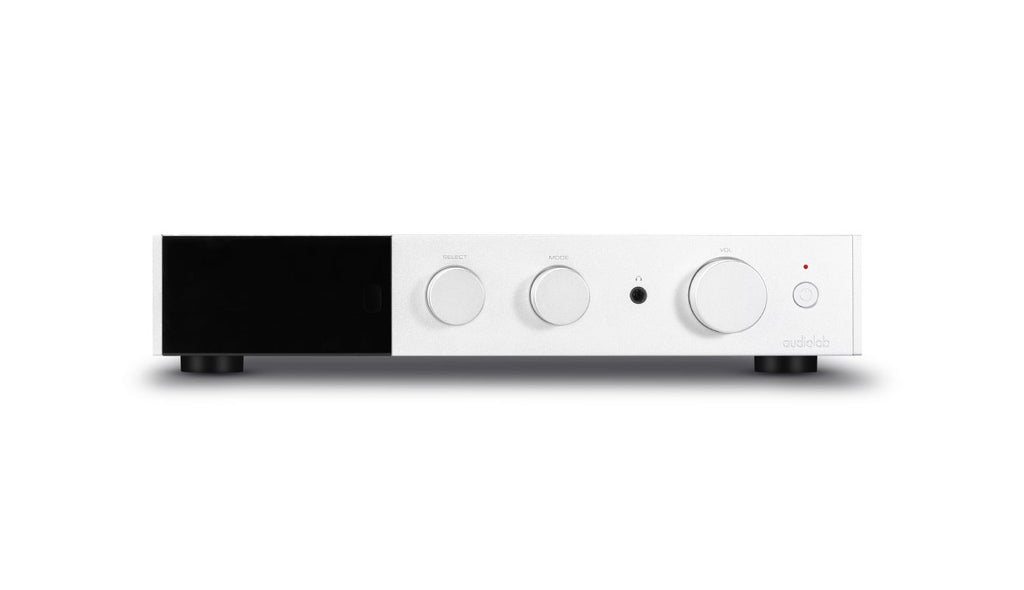

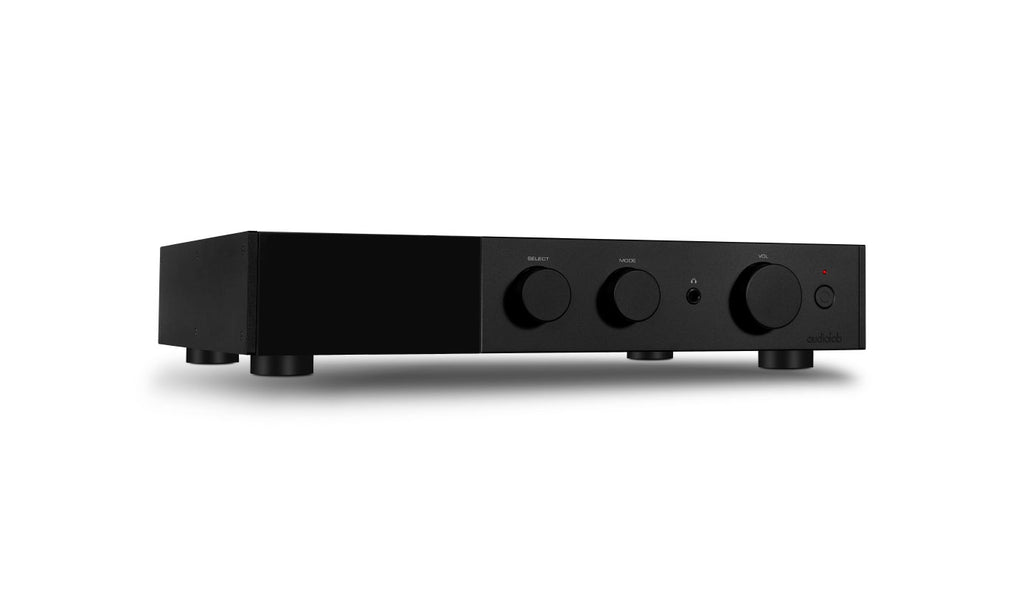

Audiolab 9000A Integrated Amplifier
Technical specifications
Power Amplifier Section | |
Rated Power Output | 2 x 100W (8ohms) 2 x 160W (4ohms) |
Frequency Response | 20Hz-20kHz (+/-0.3dB) |
Signal-to-Noise Ratio | 115dB (Line & XLR, A-weighted) |
Total Harmonic Distortion | <0.003% (1kHz @ 0dBFS) |
Preamplifier Section | |
Gain | +8dB (line & XLR), +55dB (Phono MM) |
Input Sensitivity | 1Vrms (Line, Volume = 0dB); 2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB) |
Input Impedance | 10K (Line & XLR); 47K // 100pF (Phono MM) |
Frequency Response | 20Hz-20kHz (+/-0.3dB) |
Signal-to-Noise Ratio | > 112dB (Line & XLR, A-weighted) |
Total Harmonic Distortion | <0.004% (1kHz @ 2V, Volume = 0dB) |

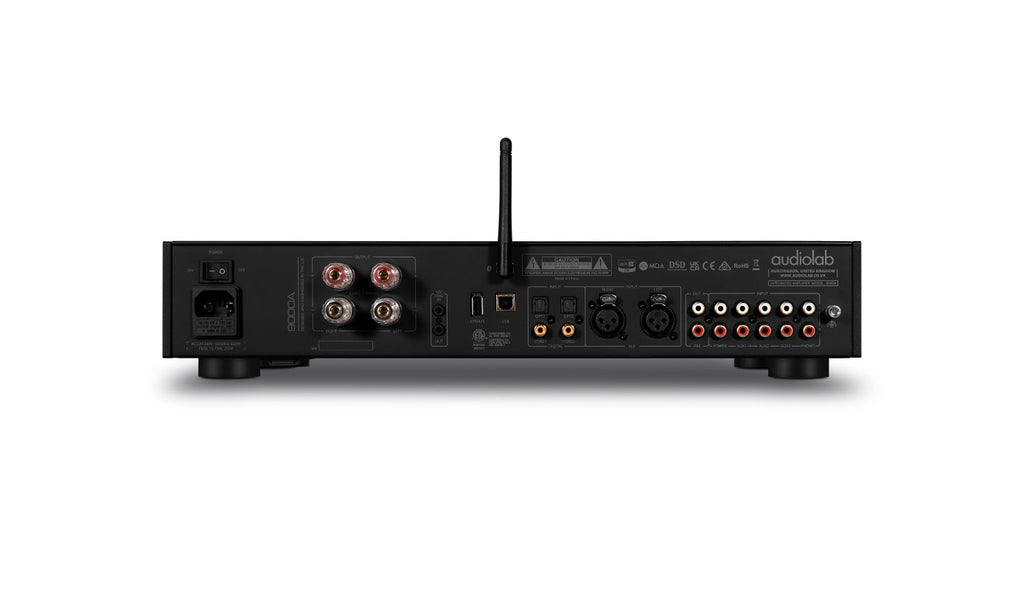

Input/Output | |
Analogue Inputs | 3 x Aux, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier |
Digital Inputs | 2 x SPDIF (Coax), 2 x (Optical), 1 x PC USB (USB B) |
Audio Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
DAC | |
D to A Converter | ES9038Pro |
Total Harmonic Distortion (THD) | <0.001% (1kHz @ 0dBFS) |
Max. Sampling Frequency | Optical/Coax: 192kHz; PC USB PCM768kHz, DSD51 |
Signal-to-Noise Ratio | > 117dB (A-Weighted) |
General | |

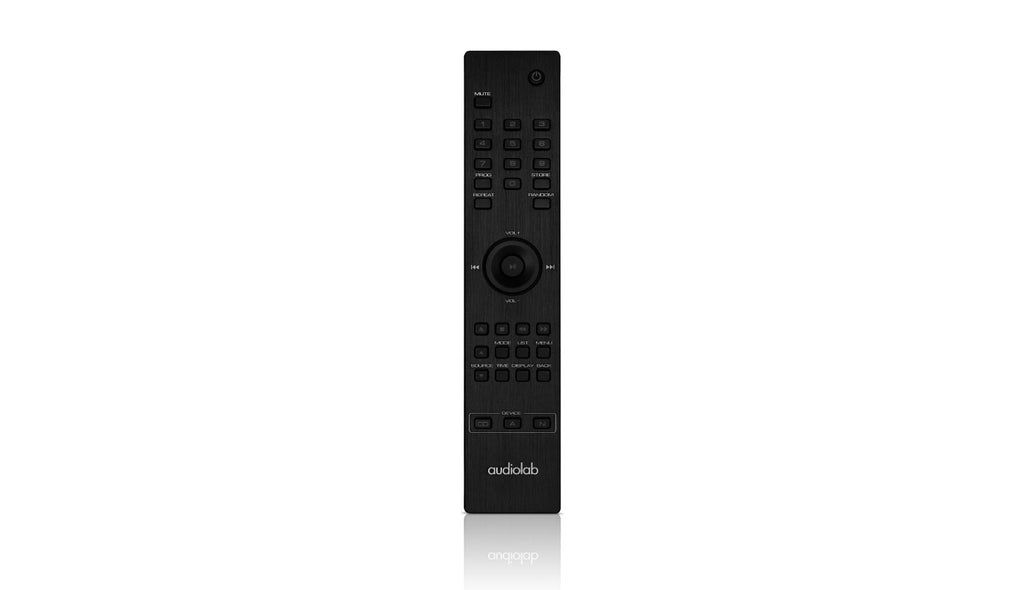

Included Accessories | Remote Control |
Dimensions ( H x W x D ) | 89 x 444 x 342mm |
Weight | 8.4kg |
Colour Choice | Black or Silver |
