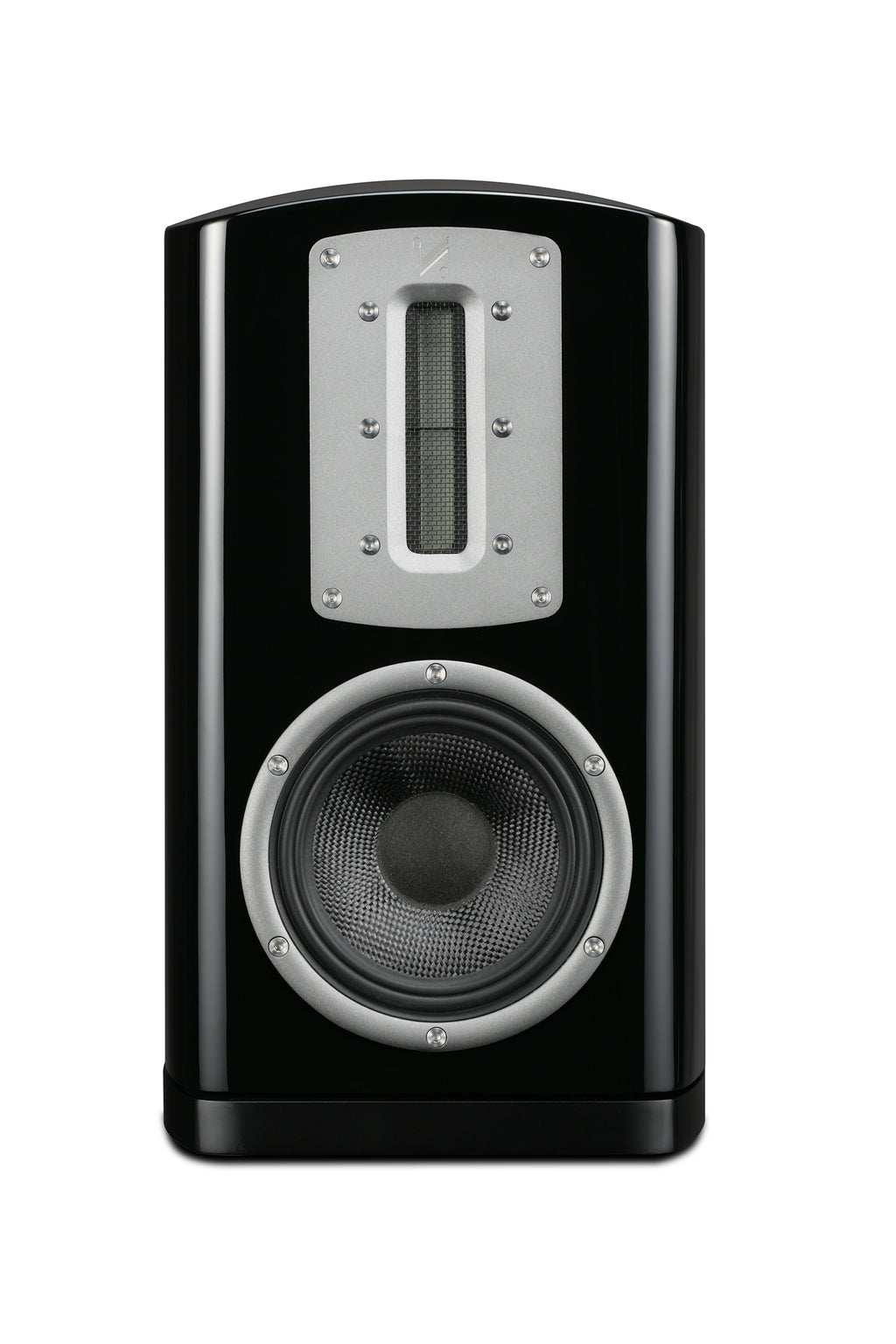

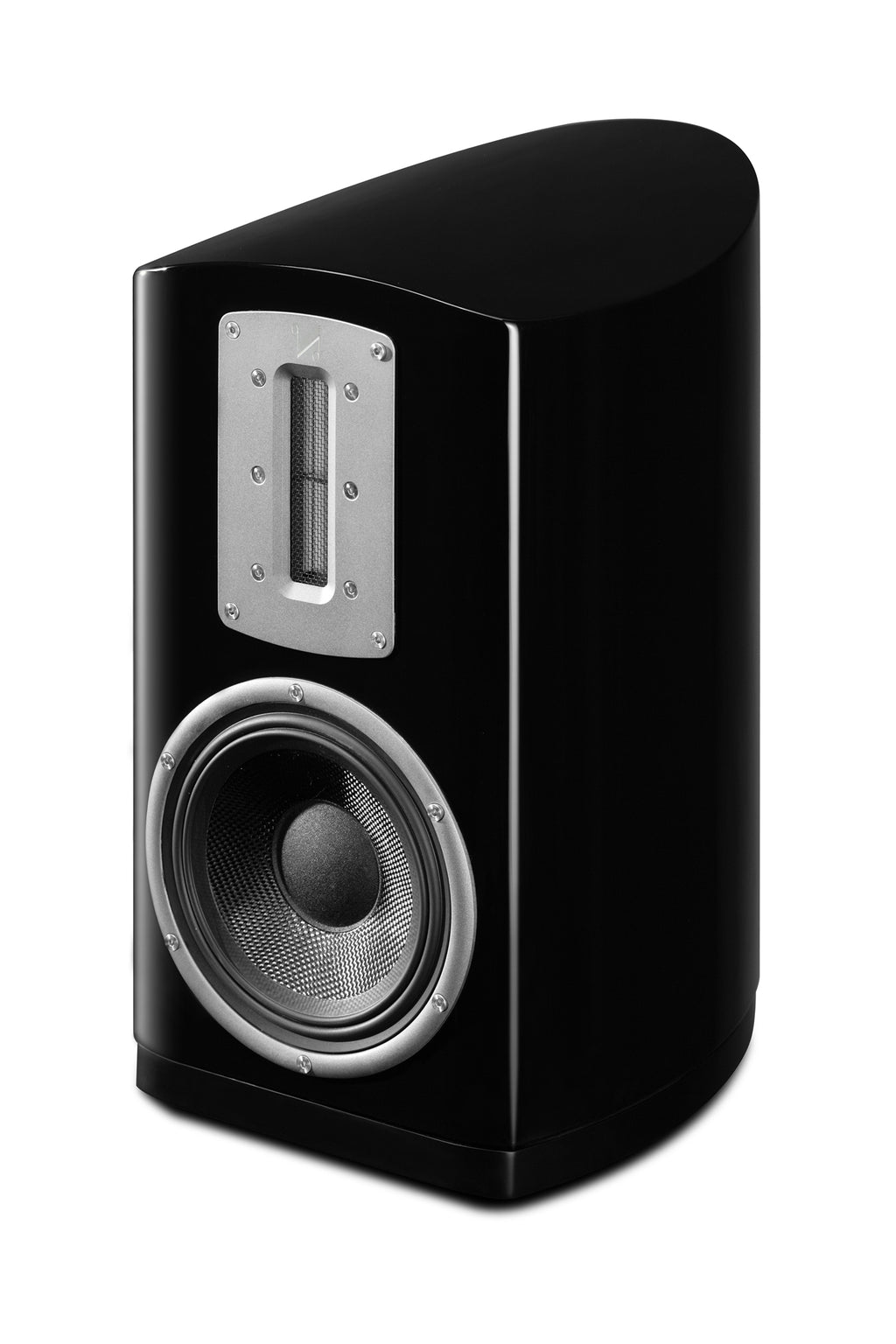

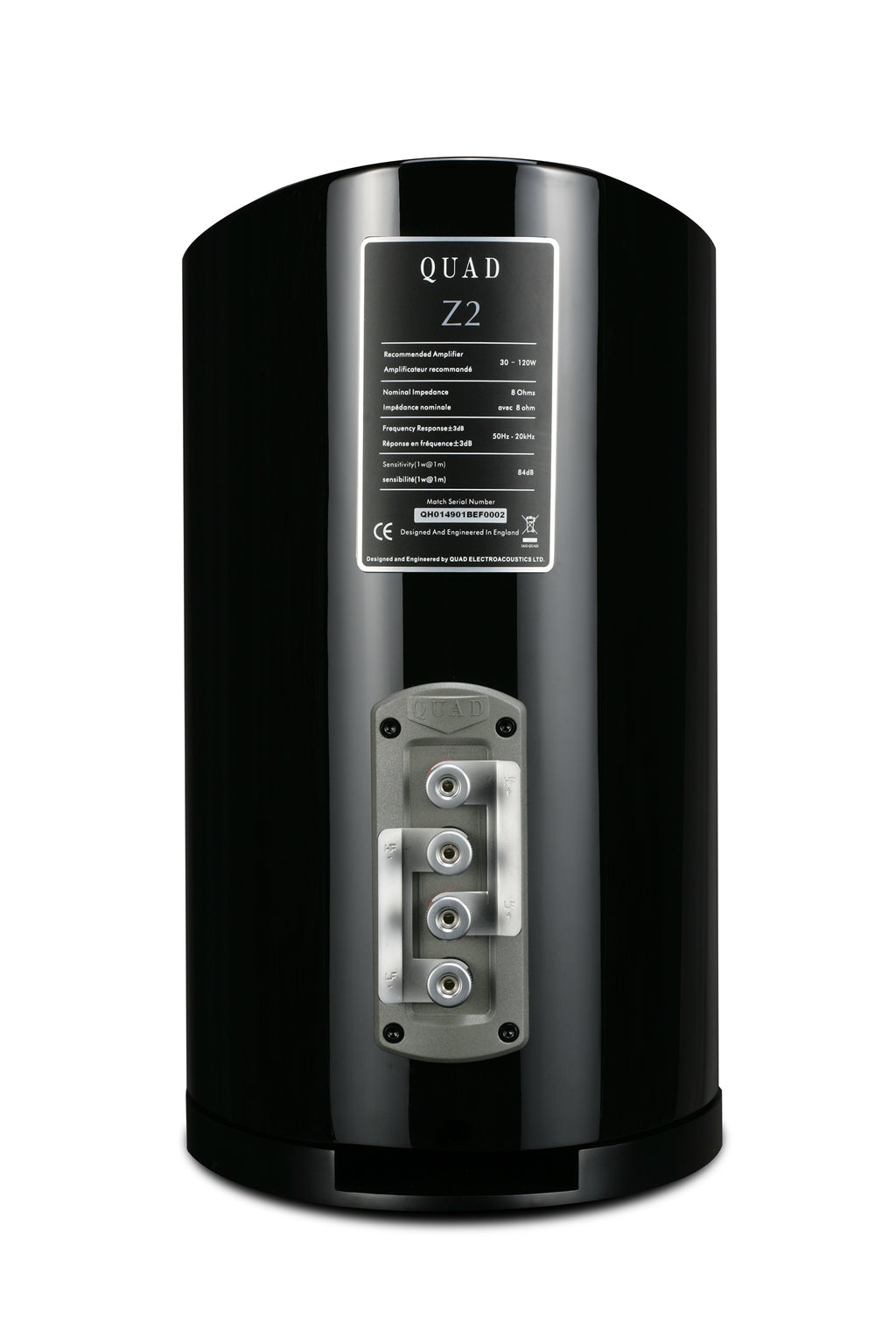

Quad Z-2



Unlike conventional tweeters where the voice coil motor is attached separately to the diaphragm, Quad's Z Series ribbon tweeter is both the diaphragm and the motor system.This results is a unique combination of delicacy, smoothness and hear-through performance that helps make your music sing.

Along with this advanced ribbon unit, an equally high performance mid/bass driver with a unique double -roll-surround and woven glass fibre cone, is especially designed to control edge breakup and also give equal transparency to the all important vocal range.

Enclosure Type Bass Reflex (rear ported)
Bass Driver 6 inch Glass Fibre Cones
Tweeter 3.5 x 0.5 inch True Ribbon
Crossover Frequency 3.4kHz
Frequency Response (+/-3dB) 50Hz-20kHz
Sensitivity (2.83V@1m) 84dB
Recommended Amplifier Power 30-120W
Nominal Impedance 8 Ohms
Bass Extension (-6dB) 45Hz
Dimensions (H x W x D) in mm 421 x 267 x 340
Weight 9kg each
Available Colours

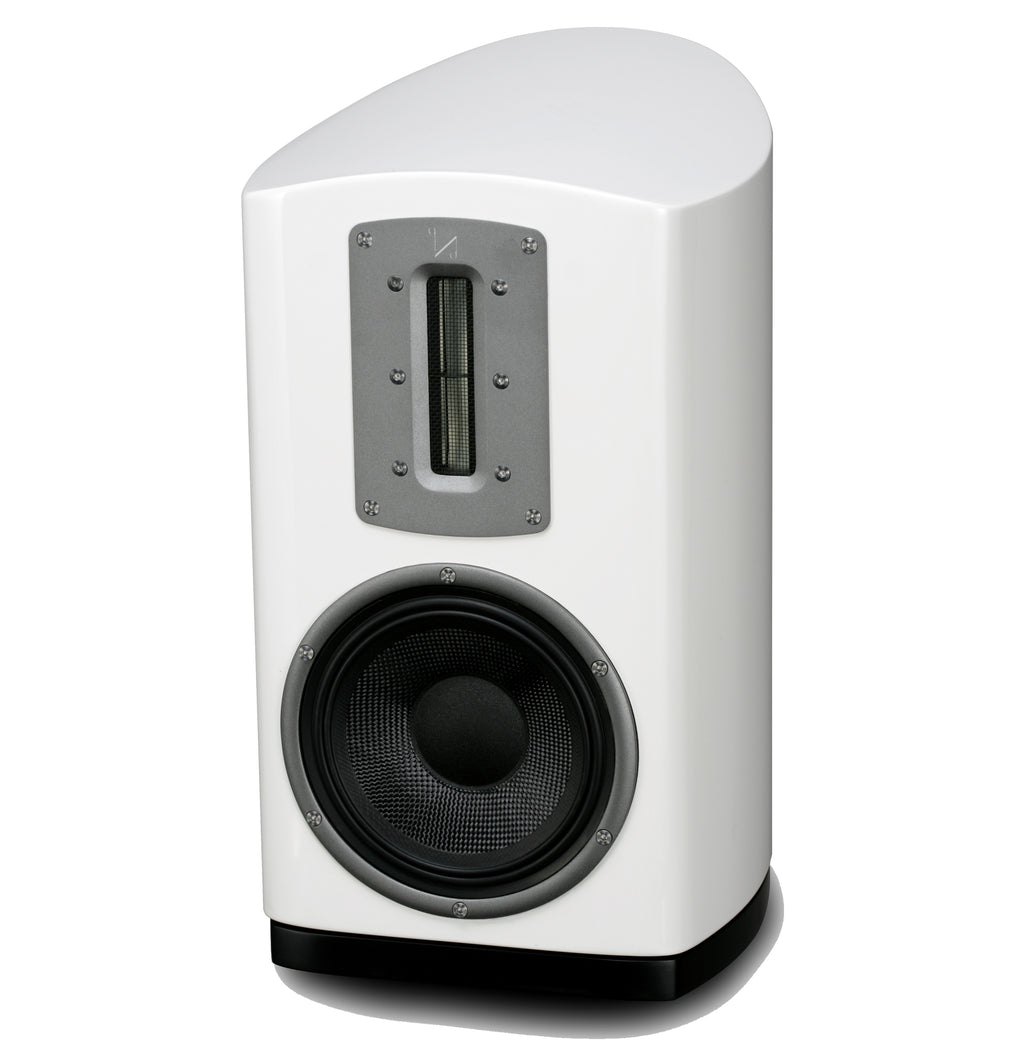

Piano Black, Piano White

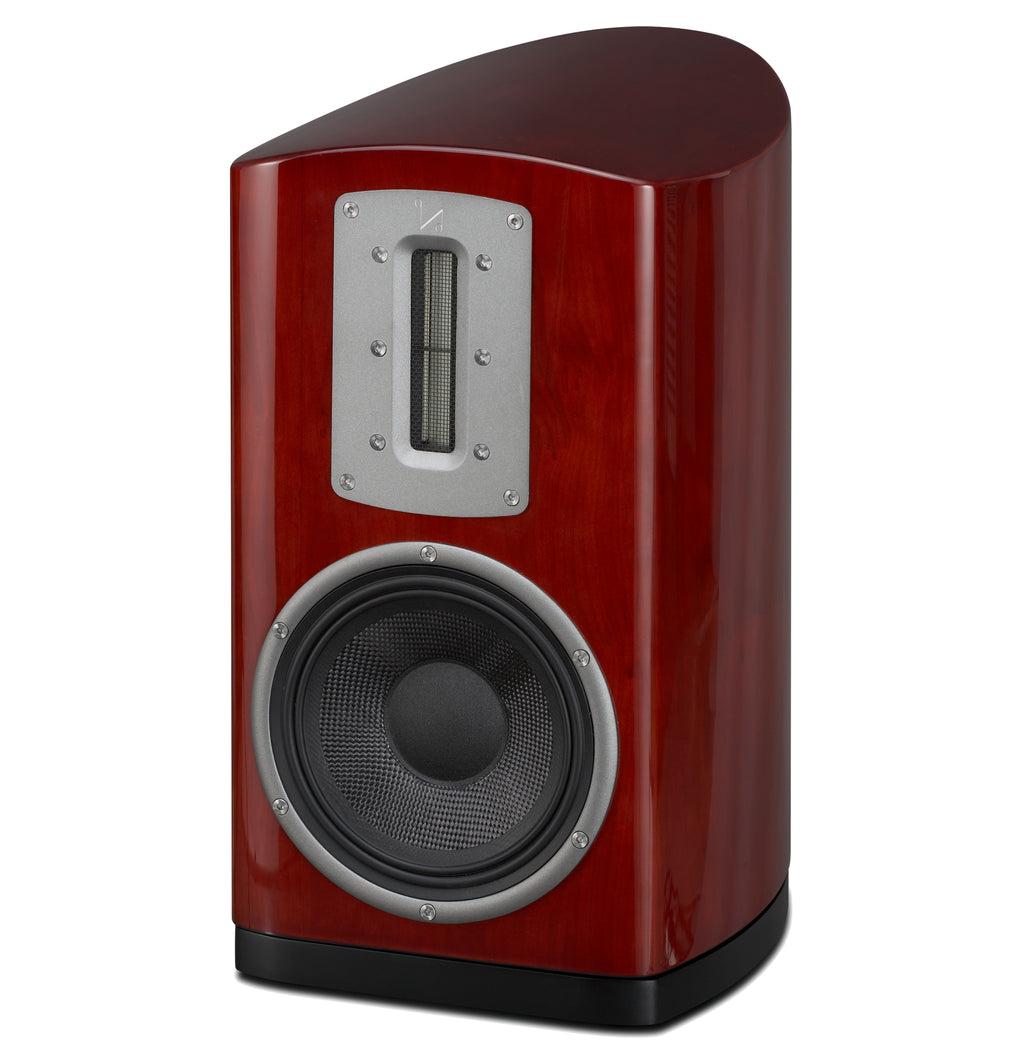

Piano Rosewood
