Quad ERA-1


No Ordinary Headphones

Most headphones use mass-produced dynamic cone drivers, the limitations of which can hamper transient response and cause uneven frequency response. Quad's cutting-edge planar magnetic technology delivers a more natural and accurate sound, ensuring you hear every nuance of the recorded musical performance.

The Quad ERA-1 incorporates an ultra-thin, electrically active diaphragm - thinner than a human hair yet extremely light, strong and highly elastic. This is fused with a precision arranged magnet array, designed to maximise sensitivity and consistency of the applied force over the driver area.

Patented non linear vibration suppression technology allows the driver's effortlessly extended frequency response to be heard unsullied, ensuring perfect clarity. The metal cavity behind the driver is specially designed for optimal acoustic performance, and the drivers themselves are closely matched to ensure spacious, three dimensional stereo imaging. The result is that the ERA-1 provides a musically engaging, dynamic and effortless sonic performance that suits all music types.

Musical Magnetism

When sound enters our ear,s, it has a planar wave front with all the spectrum components in phase. A typical dynamic headphone driver disrupts this coherence with its phase irregularities, resulting in less than perfect signal peak reconstructions,

Quad's planar magnetic driver has much better phase coherency, since all parts of the diaphragm are vibrating in concert without break up and delayed response. The driver's flat conductor pattern, with absence of inductive components, eliminates inductance-related intermodulation distortion - this is especially common in dynamic drivers with high impedance and a high number of voice coil turns.

Many planar magnetic headphones require high power amplifiers to driver them. The Quad ERA-1 combines high sensitivity with low impedance to enable excellent performance with a wide range of partnering devices, from portable audio players to high-end headphone amplifiers. Quad's valve based PA-One headphone amplifier/DAC makes a superb match for the ERA-1,combining sonic clarity and fluidity to stunning effect.

Product Reviews

Quad ERA-1 Review Image

prefer the in-store experience?

Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

Quad ERA-1

Technical specifications

Type Planar Diaphragm Headphone
Impedance 20 Ohms +/-15% @ 1kHz
Sensitivity 108dB +/-3dB
Frequency Response 10Hz - 40kHz
THD >0.2% @ 1kHz 1mW
Rated Input Power 100mW
Maximum Input Power 300mW
Channel Balance >2dB (100Hz - 5kHz)

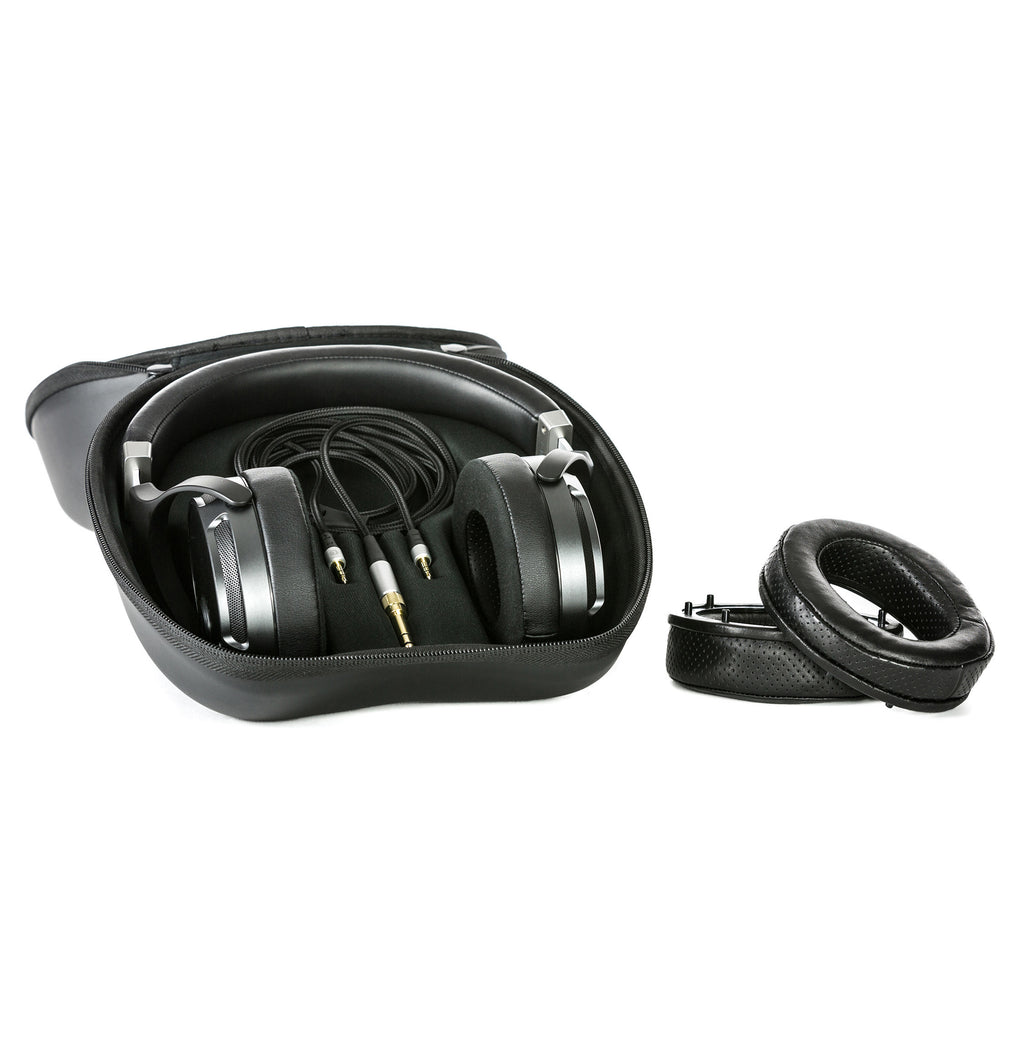

Included Accessories

Synthetic Leather Ear Cushions

Real Sheepskin Ear Cushions

Headphone Cable

EVA Carry Case
