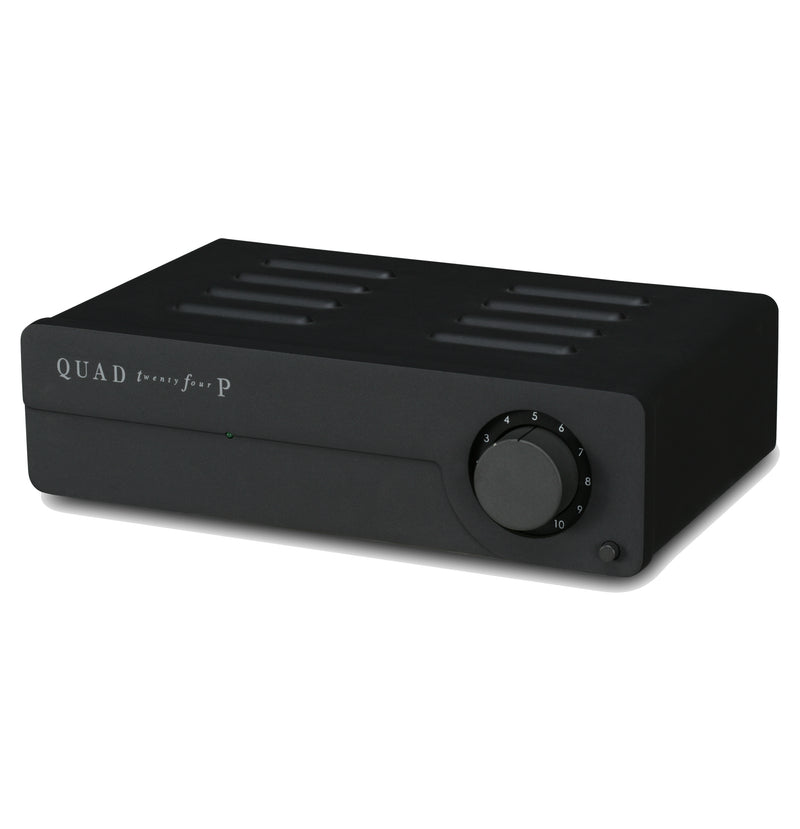

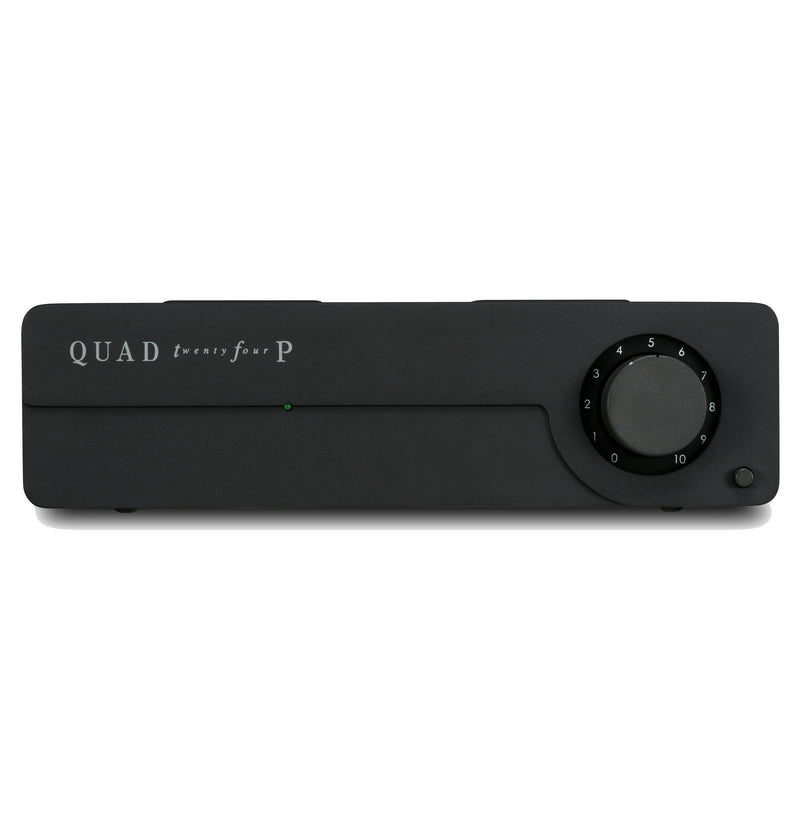

Quad QC-24P Valve Phono Pre Amplifier


For the connoisseur, there is the Quad QC-24P dedicated valve phono stage. This has been designed for Quad by valve supremo Tim DeParavicini - probably the finest valve amplifier designer in the world today.

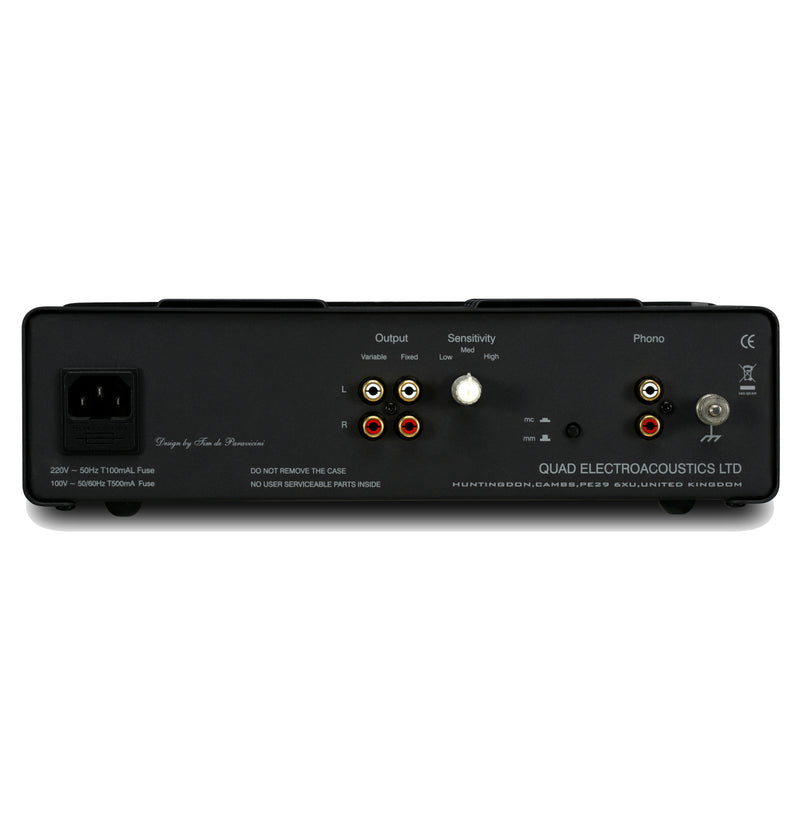

It has been voiced by the finest ears in the industry and will add an entirely new dimension to your enjoyment of vinyl recordings. This unit features a moving magnet/ moving coil toggle switch on the rear, a choice of input sensitivities and a direct full level output or variable level output if you wish to connect directly to a power amplifier.

prefer the in-store experience?

Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

Quad QC-24P Valve Phono Pre Amplifier

Technical specifications

Valve Complement 4 x 6H16B Twin Triode
Total Harmonic Distortion (THD) Less than 0.08%
Hum and Noise Better than 60dB
Input Impedence 47 Ohms (MC) / 10 Ohms (MM)
Stage Gain - High/Med/Low 1.3, 2.6, 5.2mV (MM) / 130, 260, 520uV (MC)
Normal Output Level 1V (ref 5.2mV, MM, Low)

1 x Fixed Line Level

1 x Variable Line Level

Power Consumption 15VA Maximum
Dimensions in mm (H x W x D) 90 x 220 x 300
Available Colours Lancaster Grey
