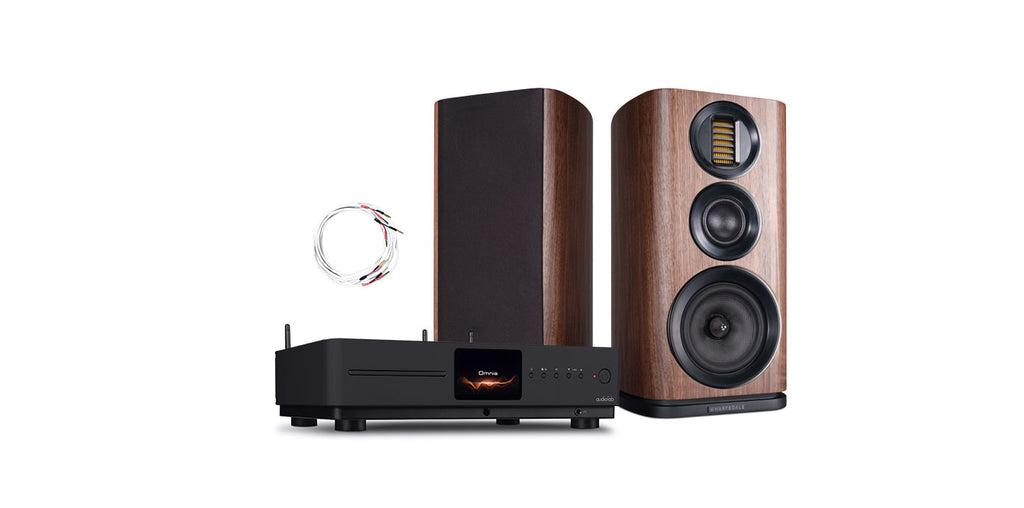

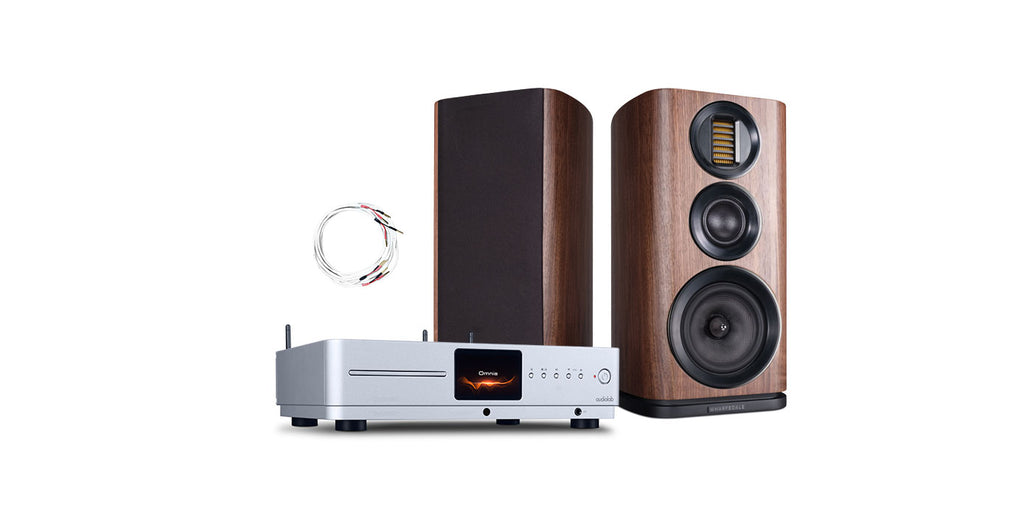

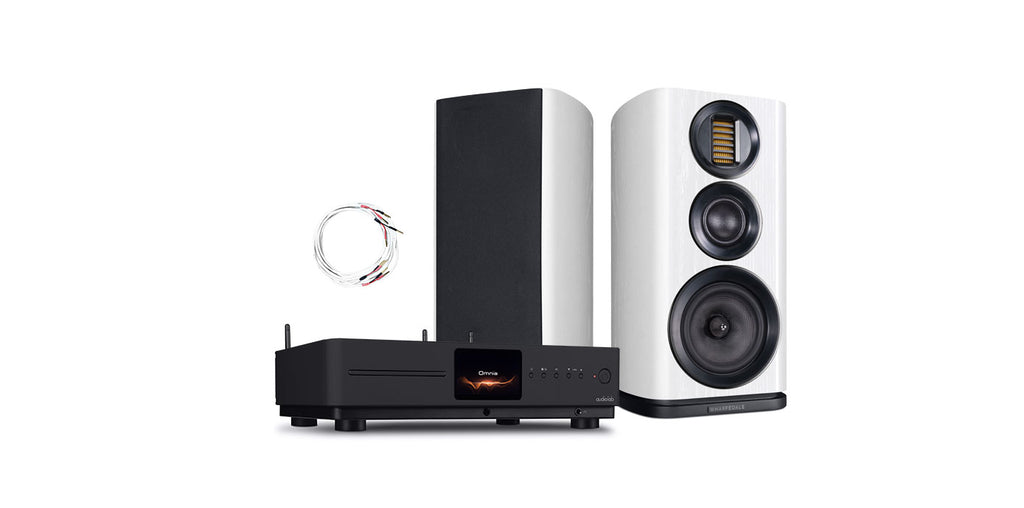

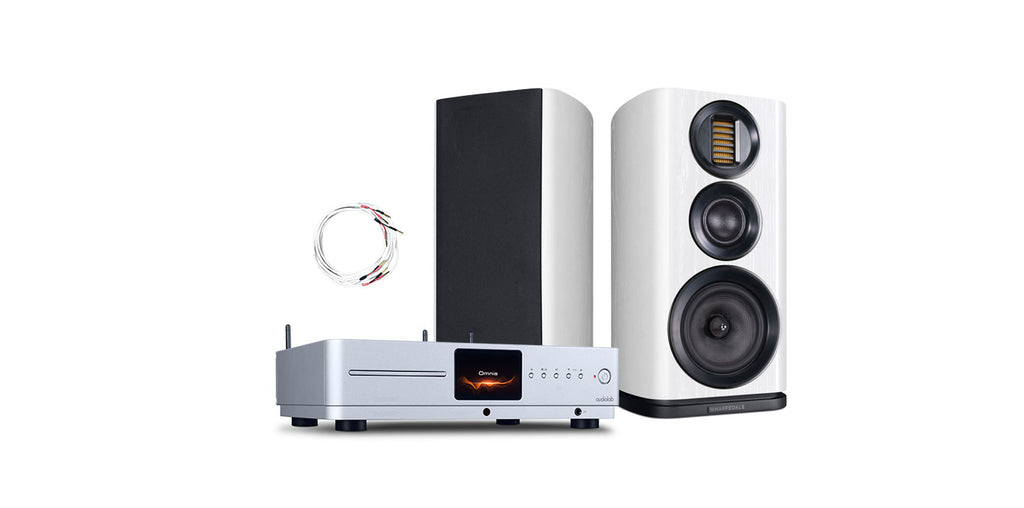

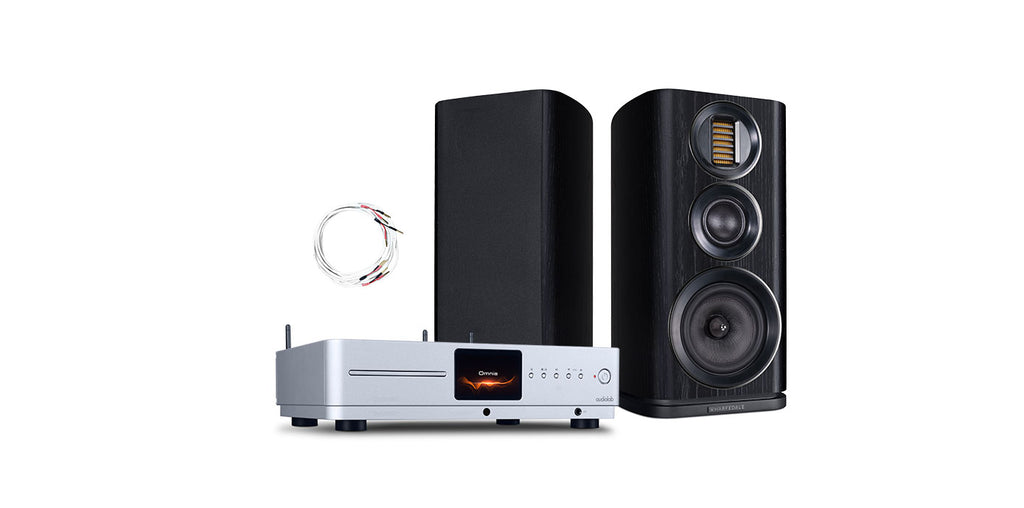

Hotel Revolution Hi-fi System
Technical specifications

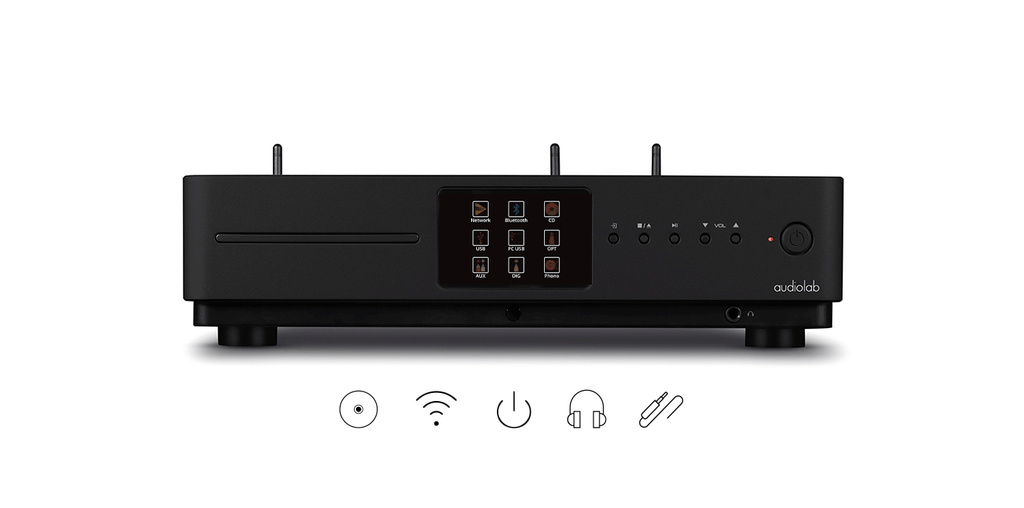

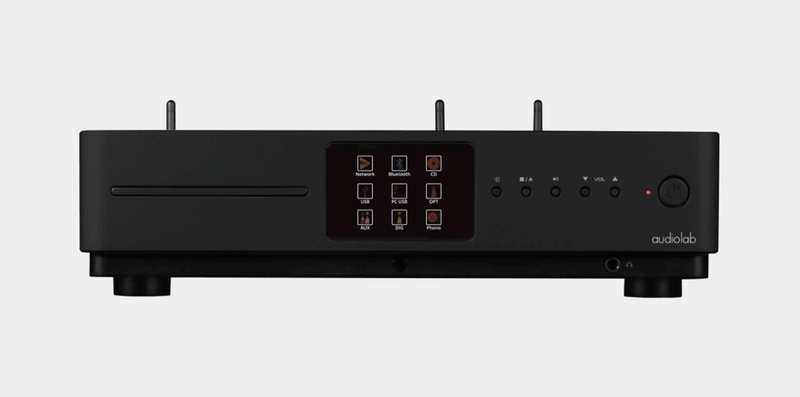

General Description | Integrated Amplifier |
Design Philosophy and Core Technology | 2x50W (8ohm) / 2x75W (4ohm) Class AB |
ES9038Q2M 32-bit DAC | |
4.3" (800x480mm) large size full view IPS LCD | |
Built in certified hardware MQA Full decoder (PC USB, Coax/Optical) | |
CD playback compatible with CD, CD-R, CD-RW discs | |
USB memory device support (MP3/WMA/AAC/WAV) | |
DTS Play-Fi technology (IEEE 802.11 a/b/g/n/ac) | |
Streaming service support includes Amazon Music, Spotify, TIDAL, Internet Radio, Deezer, iHeartRadio and more (dependant on geographic region) | |
Multi-room / multi speaker group support | |
Bluetooth 5.0 (aptX/aptX LL) streaming | |
Low Noise Moving Magnet Phono stage | |
Dedicated Current-Feedback Headphone AMP | |
Integrated / PRE-POWER / PRE only Modes | |
Android / iOS / Kindle Fire / Windows PC Control Support | |
USB firmware upgrade input | |
Inputs | 3 x Analogue, 1 x Phono (MM) , 1 x Power Amplifier, 2 x SPDIF (Coax), |
2 x SPDIF (Optical), 1 x DTS Play-Fi Streaming, 1xPC USB(USB B), | |
1xUSB HDD(USB A), 1 x Bluetooth(aptX/aptX LL), 1 x 12V Trigger | |
Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
Sampling Frequency | Optical / Coaxial:44.1kHz ---192kHz |
PC USB: 44.1kHz - 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
| |
Preamplifier Section | |
Gain | +8dB (Line) |
+47dB (Phono MM) | |
Input Sensitivity | 720mV (Line, Volume = 0dB) |
3.1mV (Phone MM, Volume=0dB) | |
Input Impedance | 10K (Line) |
47K // 100pF (Phono MM) | |
Total Harmonic Distortion (THD) | < 0.0004% (1KHz @ 2V, Volume = 0dB) |
Frequency Response | 20Hz-20kHz (+/-0.1dB) |
Signal-to-Noise Ratio | >110dB (Line,A-weighted) |
76dB (Phono MM,A-weighted) | |
DAC | |
D to A Converter | ES9038Q2M |
Total Harmonic Distortion (THD) | < 0.0006% (1KHz @ 0dBFS) |
Output level (0dBFS, 1KHz) | 2.1Vrms |
Max. Sampling Frequency | Optical, Coaxial: 192KHz |
Ethernet,Wi-Fi: 192KHz | |
USB A:48kHz | |
PC USB: PCM768kHz, DSD512 | |
Signal-to-noise Ratio (S/N) | 114dB (A-weighted) |
Power Amplifier Section | |
Gain | +29dB |
Rated Power Output | 2 x 50W (8 ohm, THD < 1%) |
2 x 75W (4 ohm, THD < 1%) | |
Frequency Response | 20Hz-20kHz (+/-0.3dB) |
Total Harmonic Distortion (THD) | < 0.003% (1kHz @ 40W / 8ohm) |
Input Sensitivity | 720mV |
Signal-to-Noise Ratio (S/N) | 110dB (A - weighted) |
Max. Output Current | 9A |
Headphone Amplifier | |
Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW ) |
Output Impedance | 10ohm |
Load impedance | 20-600 ohm |
General | |
Standby Power Consumption | < 0.5W |
Net Weight | 9.1kg |
Gross Weight | 11kg |
Dimensions (mm) (W x H x D) | 440 x156 x 327 |
Carton Size (mm) (W x H x D) | 540 x 412 x 210 |
Finish | Black / Silver |

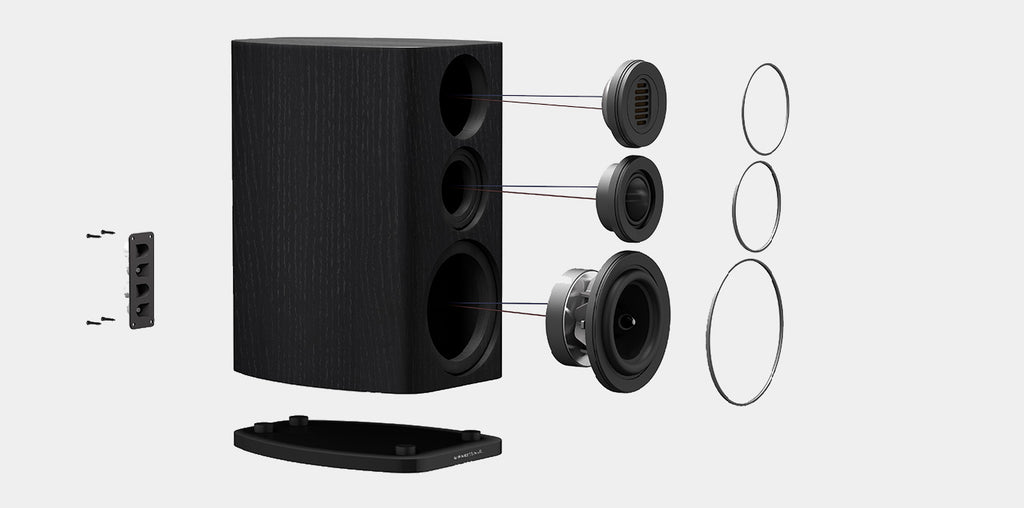

General Description | 3-way bookshelf speaker |
Bass Driver | 6.5"(165mm) black woven Kevlar® cone |
Midrange Driver | 2"(50mm) soft dome |

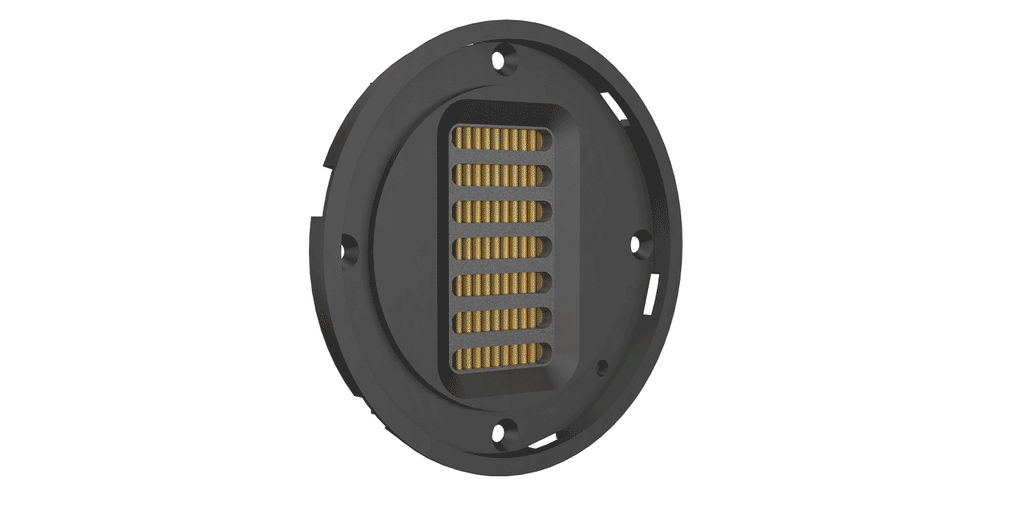

Treble Driver | 30 x 60mm AMT |
Recommended Amplifier Power | 25-120W |
Nominal impedance | 8Ω Compatible |
Sensitivity (2.83V @ 1M) | 87dB |
Frequency Response (+/-3dB) | 54Hz ~ 22kHz |
Dimensions (HxWxD) | 455 x 250 x (340+10)mm |
Net Weight | 13.4kg/pcs |
