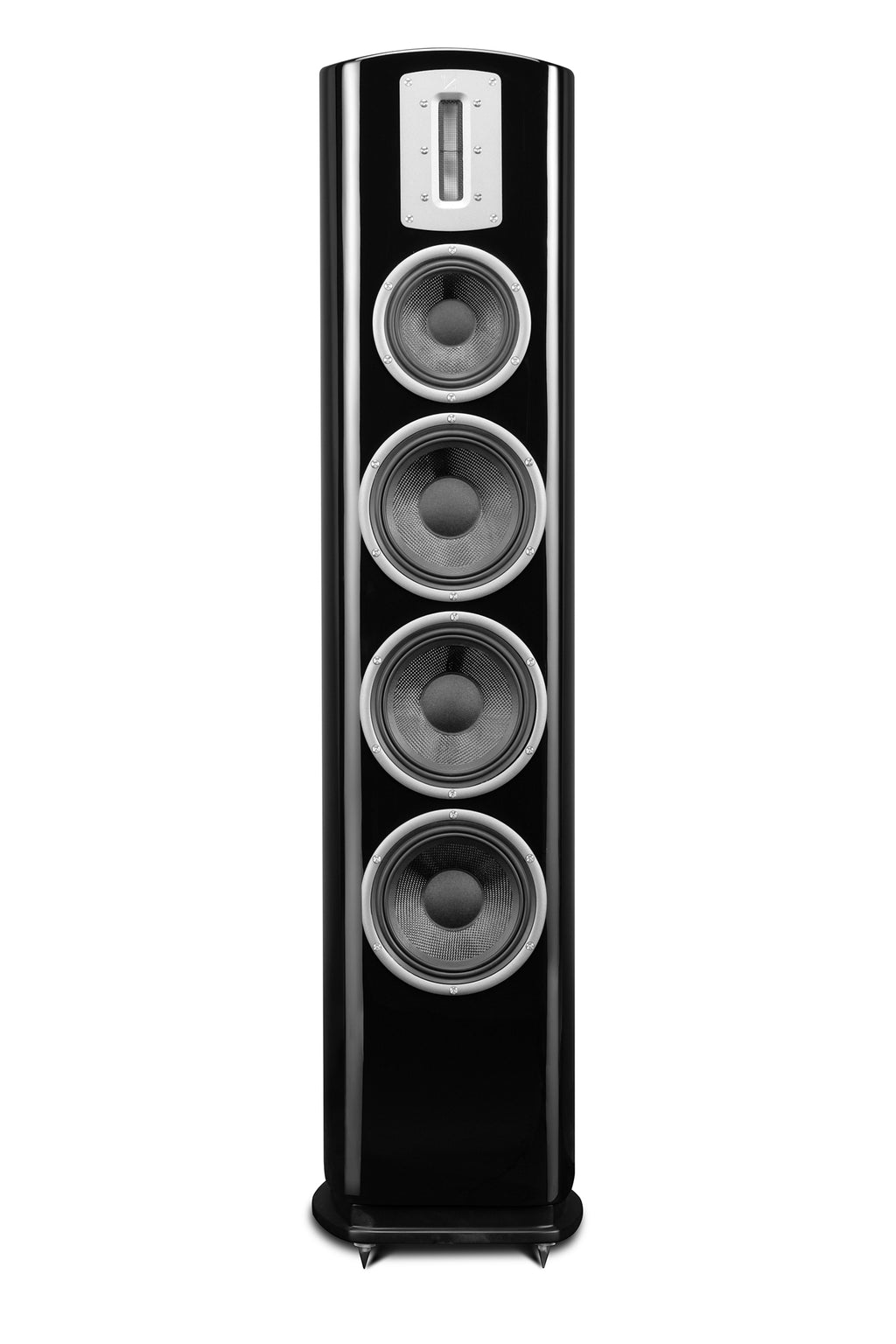

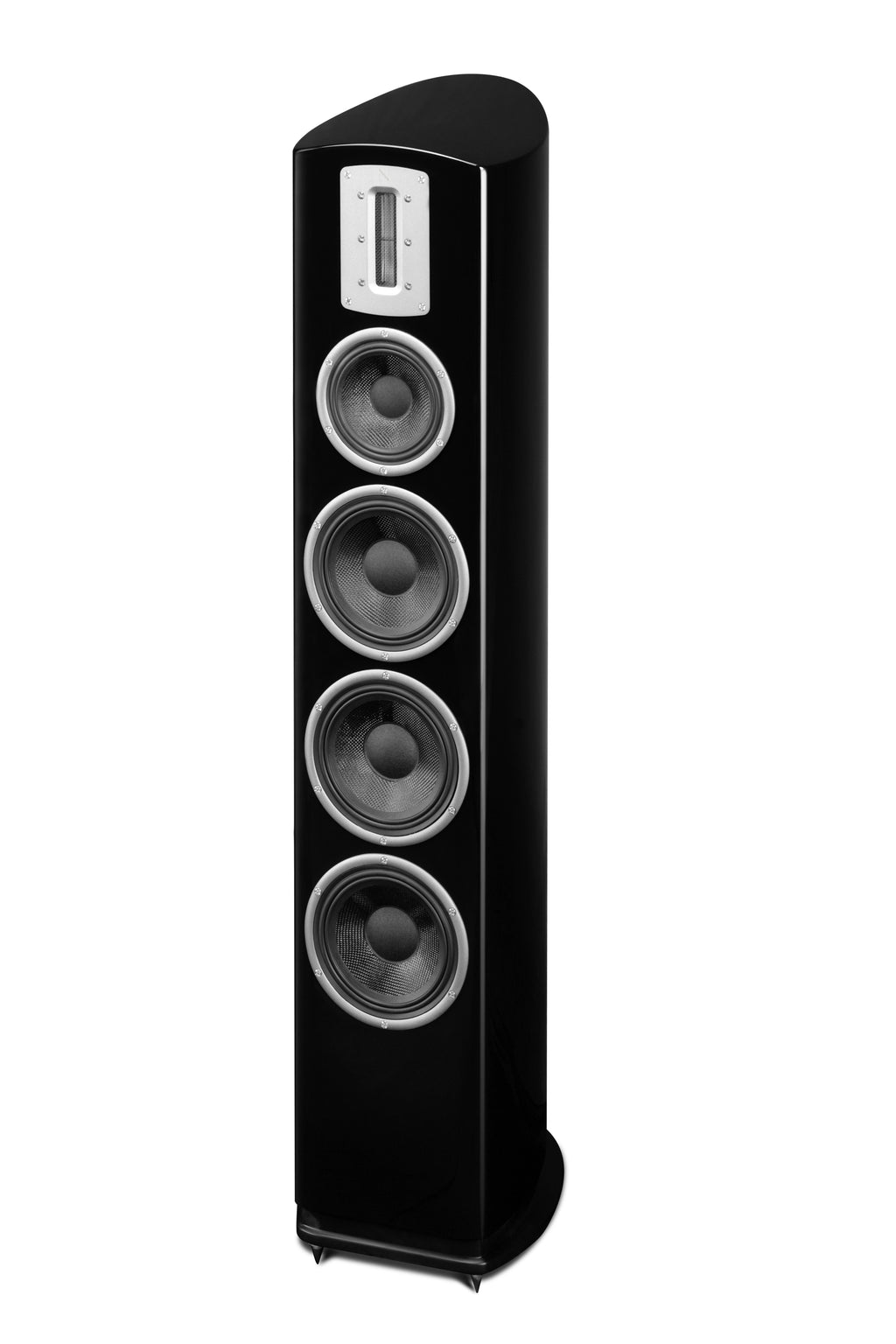

Quad Z-4



Unlike conventional dome tweeters where the voice coil motor is attached separately to the diaphragm, Z Series ribbon is both the diaphragm and the motor system. This results is a unique combination of delicacy, smoothness and hear-through performance that helps make your music sing.

Along with this advanced ribbon unit, an equally high performance midrange driver with a unique double -roll-surround and woven glass fibre cone, is especially designed to control edge breakup and give equal transparency to the all important vocal range.

While the bass section utilises an acoustic filter bass reflex system. This eliminates chuffing found in inferior loudspeakers with conventional ports, and helps maintain a natural and unforced reproduction right down to the lowest frequencies of a symphony orchestra, producing Quads signature sound as found in the famous Quad ESL Electrostatic loudspeakers.

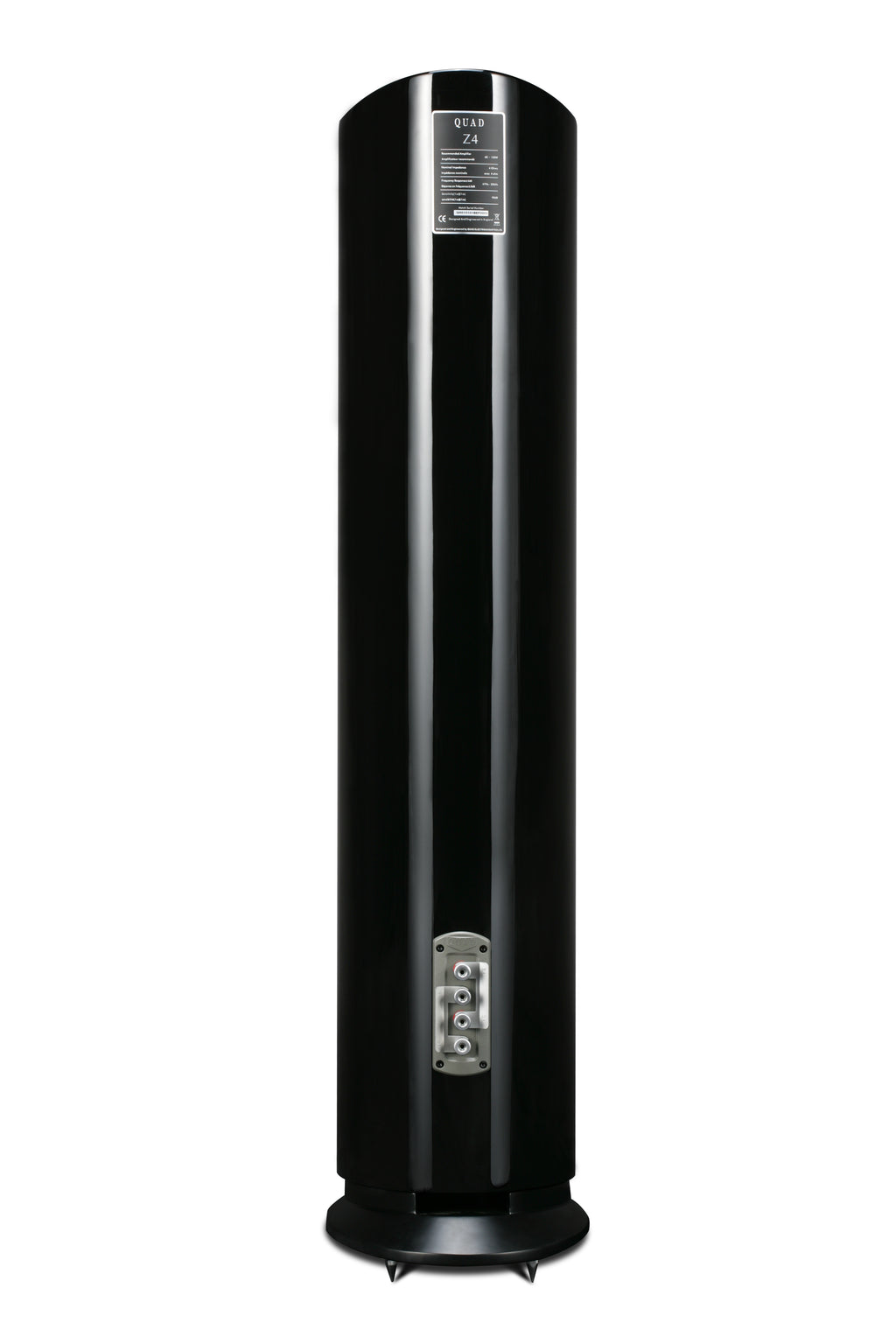

Enclosure Type Bass Reflex (rear ported)
Bass Driver 3 x 6 inch Glass Fibre Cones
Midrange Driver 5 inch Glass Fibre Cone
Tweeter 3.5 x 0.5 inch True Ribbon
Crossover Frequency 300Hz, 3.5kHz
Frequency Response (+/-3dB) 47Hz-20kHz
Sensitivity (2.83V@1m) 90dB
Recommended Amplifier Power 40-120W
Nominal Impedance 4 Ohms
Bass Extension (-6dB) 40Hz
Dimensions (H x W x D) in mm 1175 x 267 x 340
Weight 23.5kg each
Available Colours

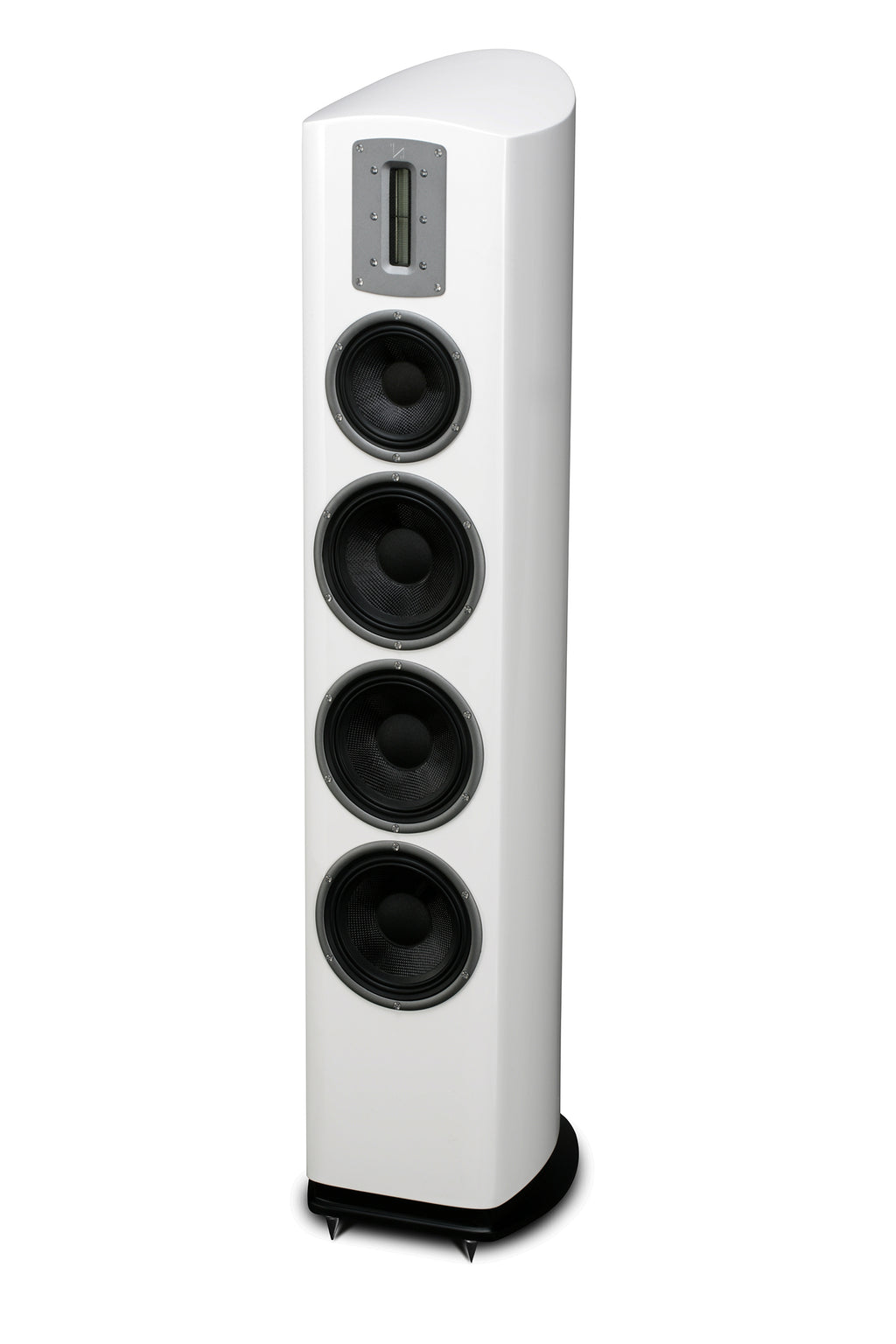

Piano Black, Piano White

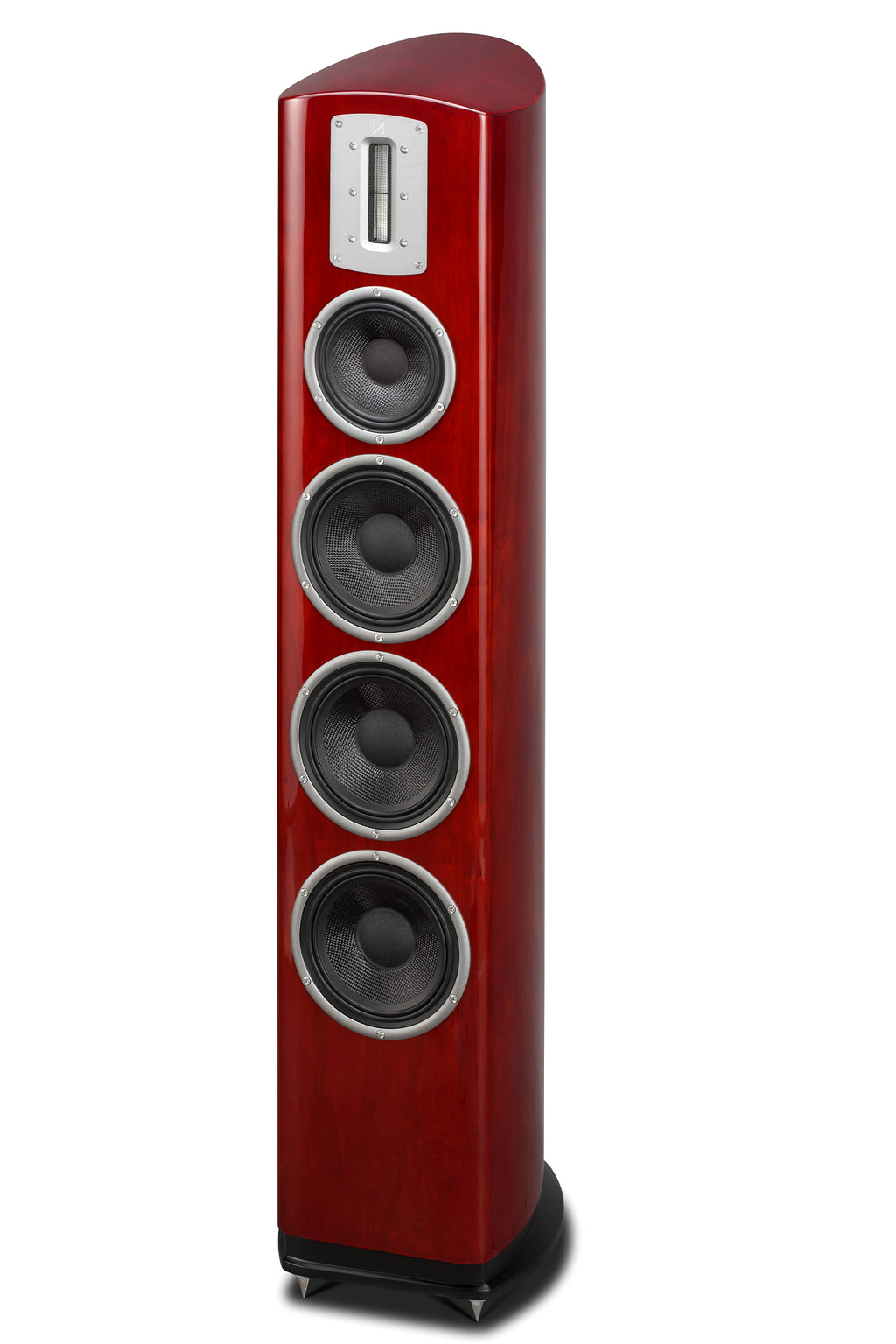

Piano Rosewood
